Technical Specifications

Model 600 series flanged 600 series threaded 600 series threaded angle 600 series grooved end
Connection Flanged Threaded - (BSPT or NPT)

Threaded Angle - (BSPT or NPT)

Grooved End
Hydraulic Connections Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Actuator Type Diaphragm Closing Type with Single Control Chamber and Diaphragm Actuator Diaphragm Closing Type with Single Control Chamber and Diaphragm Actuator Diaphragm Closing Type with Single Control Chamber and Diaphragm Actuator Diaphragm Closing Type with Single Control Chamber and Diaphragm Actuator
Material GG25 or GG40 GG25 or GG40 GG25 or GG40 GG25 or GG40
Pressure Range 16 bar (240 psi) or 25 bar (360 psi)  10 bar (145 psi) or 16 bar (240 psi)  10 bar (145 psi) or 16 bar (240 psi) 10 bar (145 psi) - 16 bar (240 psi) or 25 bar (360 psi)
Available Sizes inch mm inch mm inch mm inch mm
2" 50 1½" 40 2" 50 2" 50
2½" 65 2" 50 2½" 65 2½" 65
3"x2" 80x50 2½" 65 3" 80 3" 80
3" 80 3"x2" 80x50 4" 100
4" 100 3" 80
5" 125
6" 150
8" 200
10" 250
12" 300



Flanged Connection Valve Dimensions

Armas 600 series model 67 valve dimensions 1 Armas 600 series model 67 valve dimensions 2 Armas 600 series model 67 valve dimensions 3 DN D L H Weight
inchmminchmminchmminchmmkg
(16 bar)
kg
(25 bar)
2" 50 6.6 166.5 7.9" 200 6.1" 154 7 8.5
2½" 65 73 186.5 8.4" 214 6.4" 162 9.5 11
3"x2" 80x50 7.9" 200 8.5" 215 6.3" 160 10 12.5
3" 80 8" 202 11.5" 291 7.2" 182 16.5 21
4" 100 9.2" 234 12" 305 7.7" 194.5 18.5 23.5
5" 125 10" 253.5 14.5" 369 8" 204 24 28
6" 150 11.4" 290 15.9" 403 12.8" 325 10 54
8" 200 13.5" 342 19.4" 494 15.7" 400 80.5 108
10" 250 16.2" 411.5 24.1" 611 18.2" 463 116 132
12" 300 19.5" 495 24" 609 19.2" 487.5 156 175



Threaded Connection Valve Dimensions

  Armas 600 series model 66 valve dimensions DN D L H Weight
inchmminchmminchmminchmmkg
(10 bar)
kg
(16 bar)
1½" 40 2.6 66 6.3" 161 3.4" 87 3 4
2" 50 3.2 82 7.2" 182 4.3" 108 4 5.2
2½" 65 3.7" 93 8.5" 216 4.4" 112 4.5 6.5
3"x2" 80x50 4.3" 110 8.7" 220 4.7" 120 5.5 8
3" 80 4.3" 110 12.7" 323 4.9" 125 11 13



Threaded Connection Angle Valve Dimensions

  Armas 600 series model 64 valve dimensions DN D L H Weight
inchmminchmminchmminchmmkg
(16 bar)
2" 50 3.1 80 5.1" 130 5.3" 135 3
2½" 65 3.7 93 6.4" 163 6.4" 163 5
3" 80 4.3" 110 8.3" 212 8.8" 223 11



Grooved End Connection Valve Dimensions

  Armas 600 series model 63 valve dimensions DN D L H Weight
inchmminchmminchmminchmmkg
(16 bar)
kg
(25 bar)
2" 50 2.4 61 7.3" 185 4" 101.5 3 4.3
2½" 65 3 76 8.6" 218 4.3" 108 4 5.7
3" 80 3.5" 89 12.1" 308 4.9" 125 11 13
4" 100 4.5" 114 12.3" 313 5.5" 138.5 13 16.2



Hydraulic Performance Chart

Valve Size mm 40 50 65 80 100 125 150 200 250 300
inch 1½" 2" 2½" 3" 4" 5" 6" 8" 10" 12"
Kv m3/h @ 1 bar 35 50 50 130 200 200 450 800 1250 1800
Cv gpm @ 1 psi 45 60 60 150 231 231 520 925 1450 2080
Kv: Valve Flow Coefficient (fluid passing under 1 bar pressure difference in m3/h @ 1 bar)
Cv: Valve Flow Coefficient (fluid passing under 1 bar pressure difference in gpm @ 1 bar)

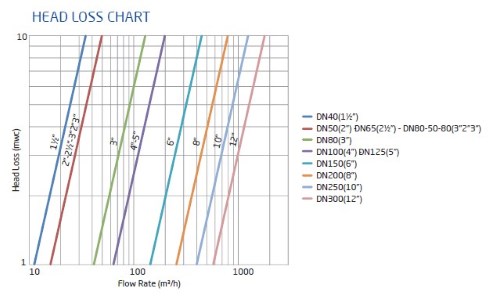

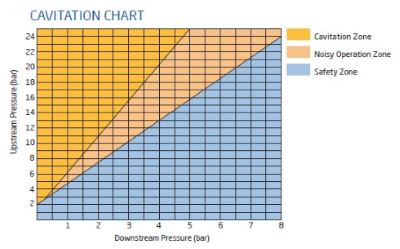

600 series head loss chart 600 series Cavitation chart



Material List

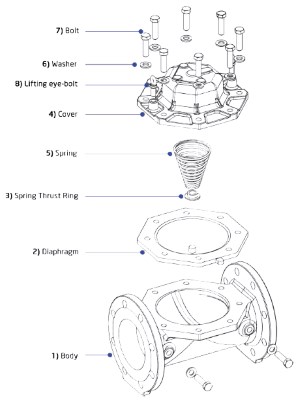

Armas 600 series valve parts Part No Part Name Material
1 Body Standard: GG25 (Cast Iron)
Optional: GGG40 (Ductile Iron)
2 Diaphragm Standard: Nylon reinforced Natural Rubber
Optional: EPDM, Nitrile, Neoprene
3 Spring Thrust Ring Polyamide
4 Cover Standard: GG25 (Cast Iron)
Optional: GGG40 (Ductile Iron)
5 Spring Standard: SST 302
Optional: SST 316
6 Washer Standard: Coated Steel
Optional: SST
7 Bolt Standard: SST 302
Optional: SST 316
8 Lifting eye-bolt Standard: Coated Steel
Optional: SST
9 Position Ind. Kit (Optional) Standard: SST+Brass
