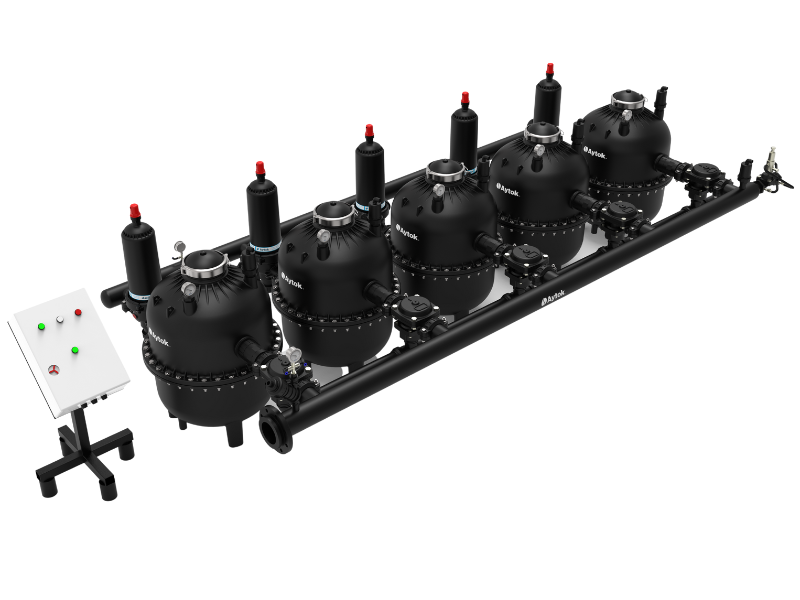

Aytok Automatic Plastic Sand Media Filter Systems With Plastic Disc Filters

Aytok Automatic Plastic Sand Media Filter Systems With Plastic Disc Filters.


Body Material
:
PA6GFR30

Maximum Working Pressure
:
6 Bar (87 PSI)

Minimum Working Pressure
:
1 Bar (15 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: A32P3030
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Plastic Sand Media Filter Systems With Plastic Disc Filters

  • Filter Body Material: PA6GFR30
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)

Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
A32P3030 3"I/O 2X3"AUTO PLASTIC GRAVEL SYSTEM (24") 30
A33P3030 3"I/O 3X3"AUTO PLASTIC GRAVEL SYSTEM (24") 30-60
A44P3030 4"I/O 4X3"AUTO PLASTIC GRAVEL SYSTEM (24") 60-100
A65P3030 6"I/O 5X3"AUTO PLASTIC GRAVEL SYSTEM (24") 100-130
A66P3030 6"I/O 6X3"AUTO PLASTIC GRAVEL SYSTEM (24") 130-160
A67P3030 6"I/O 7X3"AUTO PLASTIC GRAVEL SYSTEM (24") 160-190
A68P3030 6"I/O 8X3"AUTO PLASTIC GRAVEL SYSTEM (24") 190-220

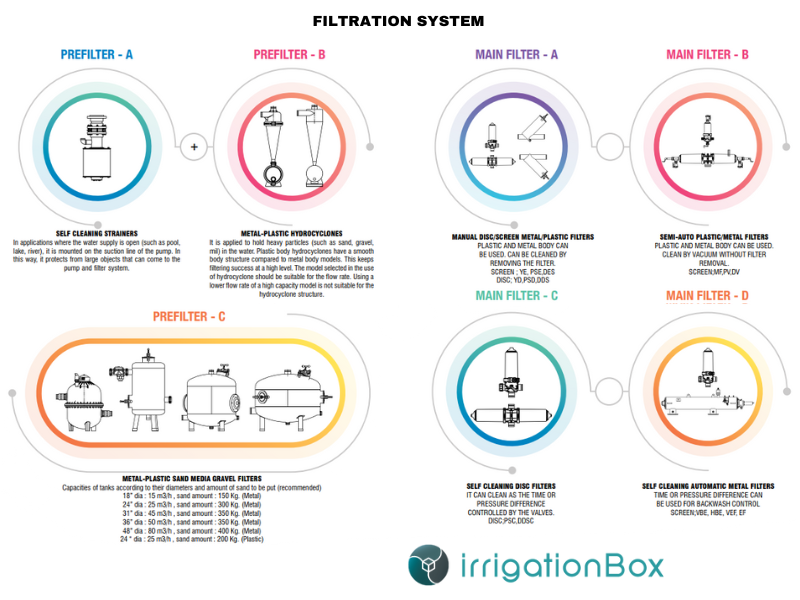

Aytok filtration system

Aytok Automatic Plastic Sand Media Filter Systems With Plastic Disc Filters

  • Filter Body Material: PA6GFR30
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)

Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
A32P3030 3"I/O 2X3"AUTO PLASTIC GRAVEL SYSTEM (24") 30
A33P3030 3"I/O 3X3"AUTO PLASTIC GRAVEL SYSTEM (24") 30-60
A44P3030 4"I/O 4X3"AUTO PLASTIC GRAVEL SYSTEM (24") 60-100
A65P3030 6"I/O 5X3"AUTO PLASTIC GRAVEL SYSTEM (24") 100-130
A66P3030 6"I/O 6X3"AUTO PLASTIC GRAVEL SYSTEM (24") 130-160
A67P3030 6"I/O 7X3"AUTO PLASTIC GRAVEL SYSTEM (24") 160-190
A68P3030 6"I/O 8X3"AUTO PLASTIC GRAVEL SYSTEM (24") 190-220



Aytok filtration system
