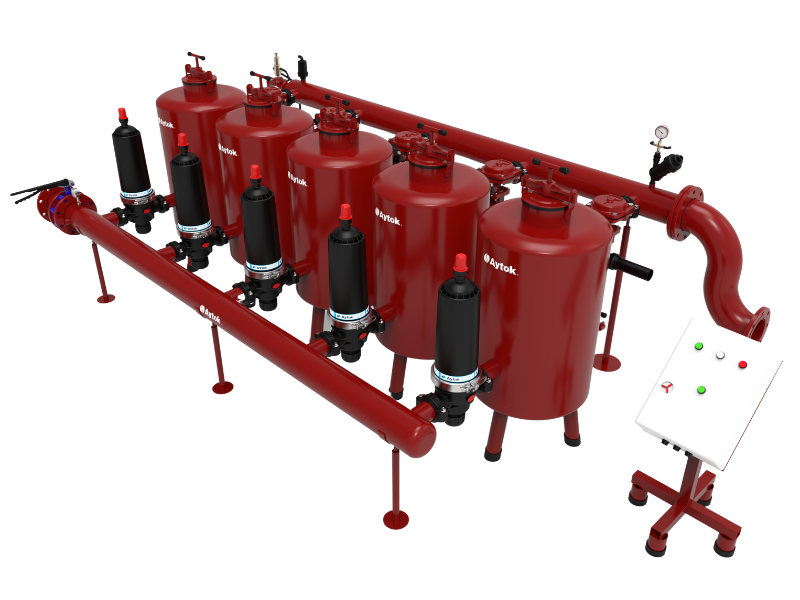

Aytok Automatic Sand Media Filter Systems With Plastic Disc Filters

Automatic Sand Media Filter Systems With Plastic Disc Filters.


Maximum Working Pressure
:
8 Bar (116 PSI)

Minimum Working Pressure
:
2 Bar (29 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-2000 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: A223020
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Sand Media Filter Systems With Plastic Disc Filters

  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-2000 micron (µ)
  • Painting Method: Electrostratic Powder Coating
  • Painting Material: Epoxy Polyester

Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
A223020 2"2X2" SAND MEDIA FILTER (18" TANK) 10-20
A323030 3"2X3" SAND MEDIA FILTER (24" TANK) 20-50
A433030 4"3X3" SAND MEDIA FILTER (24" TANK) 50-70
A443030 4"4X3" SAND MEDIA FILTER (24" TANK) 70-100
A553030 5"5X3" SAND MEDIA FILTER (24" TANK) 100-130
A663030 6"6X3" SAND MEDIA FILTER (24" TANK) 130-180
A643060 6"4X3" SAND MEDIA FILTER (36" TANK) 150-200
A853060 8"5X3" SAND MEDIA FILTER (36" TANK) 200-250
A863060 8"6X3" SAND MEDIA FILTER (36" TANK) 250-300
A873060 8"7X3" SAND MEDIA FILTER (36" TANK) 300-350
A1083060 10"8X3" SAND MEDIA FILTER (36" TANK) 350-400
A1093060 10"9X3" SAND MEDIA FILTER (36" TANK) 400-450
A10103060 10"10X3" SAND MEDIA FILTER (36" TANK) 450-500
A10113060 10"11X3" SAND MEDIA FILTER (36" TANK) 500-550
A12123060 10"12X3" SAND MEDIA FILTER (36" TANK) 550-600
24” TANK-PSC MODEL FILTER , 36” TANK-DDSC MODEL FILTER
