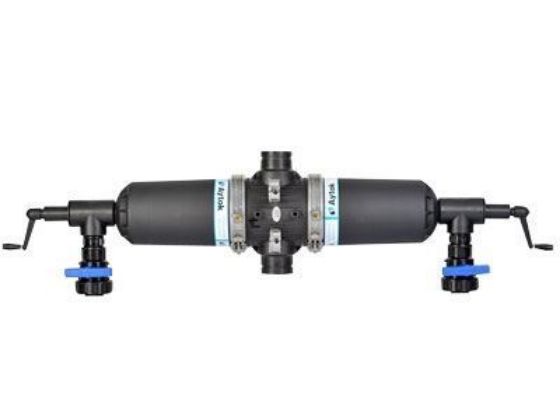

Double Plastic Vacuum Screen Filters

SKU: DDVS
Delivery date: 3-10 business days
Manufacturer: Aytok Filters
Body Material : Super Plastic
Cartridge Material : PP - PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60°
The Filtration Sensitivity : Optional 20-50-100-125 micron
Cartridge : Screen
US $462.00
*

PLEASE SELECT A SIZE

Technical Specifications

PV Double Plastic Vacuum Screen Filter
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
DV 40 101 4" 190 1300 350 1/4” 1 1/2” 60 1452 15
DVS 40 101 4" 190 1300 350 1/4” 1 1/2” 80 1936 16
PV 25 63 2 1/2" 190 600 340 1/4” 1 1/2” 40 726 8
PVS 25 63 2 1/2" 190 750 340 1/4” 1 1/2” 45 968 9



Working Principle

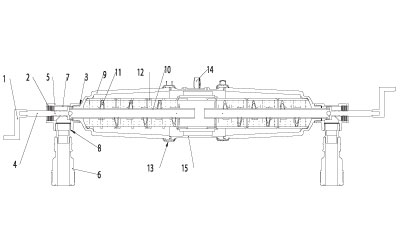

When pressure differences between manometers are 1 bar (14), open the valve (6), firstly turn right six tour and then (1) six tour left manually. After that close the valve and check the manometers, if manometers show the same pressure, cleaning process is done.

P.S.:
The pressure in output must not be lower than 1 bar during the washing.

Technical Specifications

PV Double Plastic Vacuum Screen Filter
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
DV 40 101 4" 190 1300 350 1/4” 1 1/2” 60 1452 15
DVS 40 101 4" 190 1300 350 1/4” 1 1/2” 80 1936 16
PV 25 63 2 1/2" 190 600 340 1/4” 1 1/2” 40 726 8
PVS 25 63 2 1/2" 190 750 340 1/4” 1 1/2” 45 968 9



Working Principle

When pressure differences between manometers are 1 bar (14), open the valve (6), firstly turn right six tour and then (1) six tour left manually. After that close the valve and check the manometers, if manometers show the same pressure, cleaning process is done.

P.S.:
The pressure in output must not be lower than 1 bar during the washing.

Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
Existing reviews
Works great!
Best sprinkler I have found so far. Thinking of buying another! That way I can have two for front field and two for back!
From: Guest | Date: 8/12/2012 8:11 PM
Was this review helpful? Yes No (1/0)

Obstruction of sprinklers and drippers is one of most significant problems encountered in irrigation systems. Most common reason of the obstruction is about minerals, organic and inorganic materials found in the water resource. Process of filtering water in the irrigation system is referred as filtration. Filtration is the best protection method against avoiding entrance/obstruction of dripper, sprinkler, hydrant and other similar equipments used in the irrigation system by sediments. Because, process of finding the obstructed dripper, to clean or replace the dripper is very costly and laborious. Therefore, filtration is most significant control unit of an irrigation system.



 Download General Product Catalogue

 Download General Filtration Systems Catalogue



Filter Selection Table

Water Source Type of Filter to be Used
Network Water Screen Filter
Hydrocyclone (Sand Separators)
Disc Filter
Well Water Disc Filter
Hydrocyclone (Sand Separators)
Screen Filter
River or Stream Water Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Screen Filter System
Gravel Filter and Hydrocyclone System
Lake or Pool Water Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Screen Filter System
Gravel Filter and Hydrocyclone System
Spring or Artesian Well Water Screen Filter
Hydrocyclone(Sand Separators)
Disc Filter
Water Supply Containing Organic Material Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Hydrocyclone System
Water Supply Containing Sand Screen Filter
Hydrocyclone (Sand Separators)
Disc Filter



Mesh and disc numbers based on particulate matter dimension classification

Particle Class Particle Size (mm) Screen-Disc Number (mesh) Screen-Disc Number (micron)
Very Rough Sand 1.0 – 2.0 10 – 18 1500 – 850
Rough Sand 0.50 – 1.0 18 – 35 850 – 420
Intermediary Sand 0.25 – 0.50 35 – 60 420 – 250
Fine Sand 0.10 – 0.25 60 – 160 250 – 100
Very Fine Sand 0.05 – 0.10 160 – 270 100 – 50
Silt 0.002 – 0.05 270 – 400 50 – 30
Clay < 0.002 > 400 > 30



Filtration Degree Conversion Table

Micron 25 30 40 50 80 100 130 150 200 400 800 1500 3000
mm 0.025 0.03 0.04 0.05 0.08 0.1 0.13 0.15 0.2 0.4 0.8 1.5 3.0
Mesh 650 550 400 300 200 150 120 100 80 40 20 10 5
*
*
*
