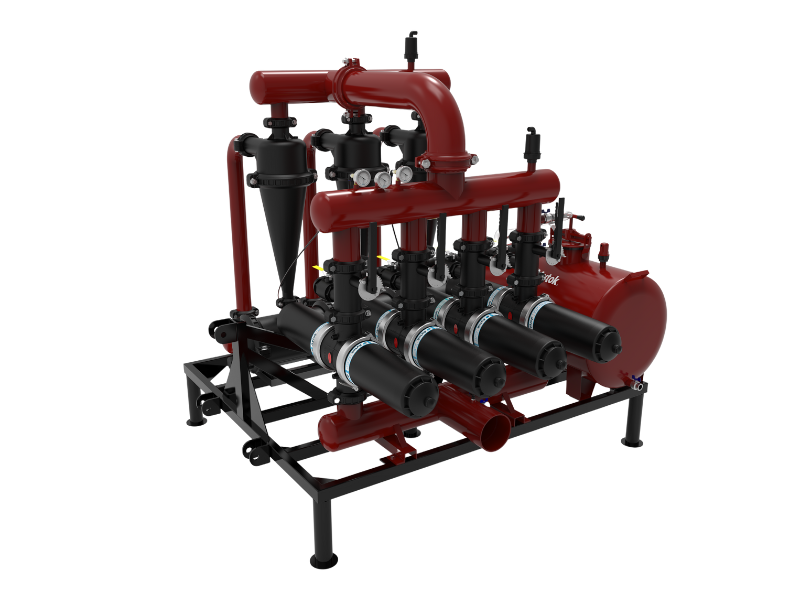

Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

Be the first to review this product

Ready built on chassis system, three-point linkage frame.

Body Material

PA6GFR30

Disc Material

Maximum Working Pressure

6 Bar (87 PSI)

Minimum Working Pressure

1 Bar (15 PSI)

Maximum Working Temperature

60 °C (140 °F)

Backwash Operation Criteria

Pressure Differential

Backwash Controlling Unit

Manual

Filtration Degree

20-50-100-130 micron (µ)

Painting

Epoxy Polyester, Electrostatic Powder Coating

Made in

Turkey

Call for pricing

Manufacturer: Aytok Filters

SKU: S422-523-533-634-644

Shipping

Delivery date 2 to 3 weeks

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Filter Inlet/Outlet Size: *

4" 2X3" PLASTIC HYDROCYCLONE + 2X4" DOUBLE PLASTIC FILTER
5" 2X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER
5" 3X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER
6" 3X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER
6" 4X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER

Qty:

+ -

Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 1 Bar (15 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Pressure Differential
Back Flush Controlling Unit : Manual
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*
Ready built on chassis system, three-point linkage frame

Availability: 8-10 weeks

CODE	SYSTEM	CAPACITY (m³/h)
S422	4" 2X3" PLASTIC HYDROCYCLONE + 2X4" DOUBLE PLASTIC FILTER	70-100
S523	5" 2X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER	100-120
S533	5" 3X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER	120-150
S634	6" 3X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER	150-180
S644	6" 4X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER	180-220

Aytok filtration system

Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 1 Bar (15 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Pressure Differential
Back Flush Controlling Unit : Manual
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*
Ready built on chassis system, three-point linkage frame

Availability: 8-10 weeks

CODE	SYSTEM	CAPACITY (m³/h)
S422	4" 2X3" PLASTIC HYDROCYCLONE + 2X4" DOUBLE PLASTIC FILTER	70-100
S523	5" 2X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER	100-120
S533	5" 3X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER	120-150
S634	6" 3X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER	150-180
S644	6" 4X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER	180-220

Aytok filtration system
