| Controller Set | Supplied with |

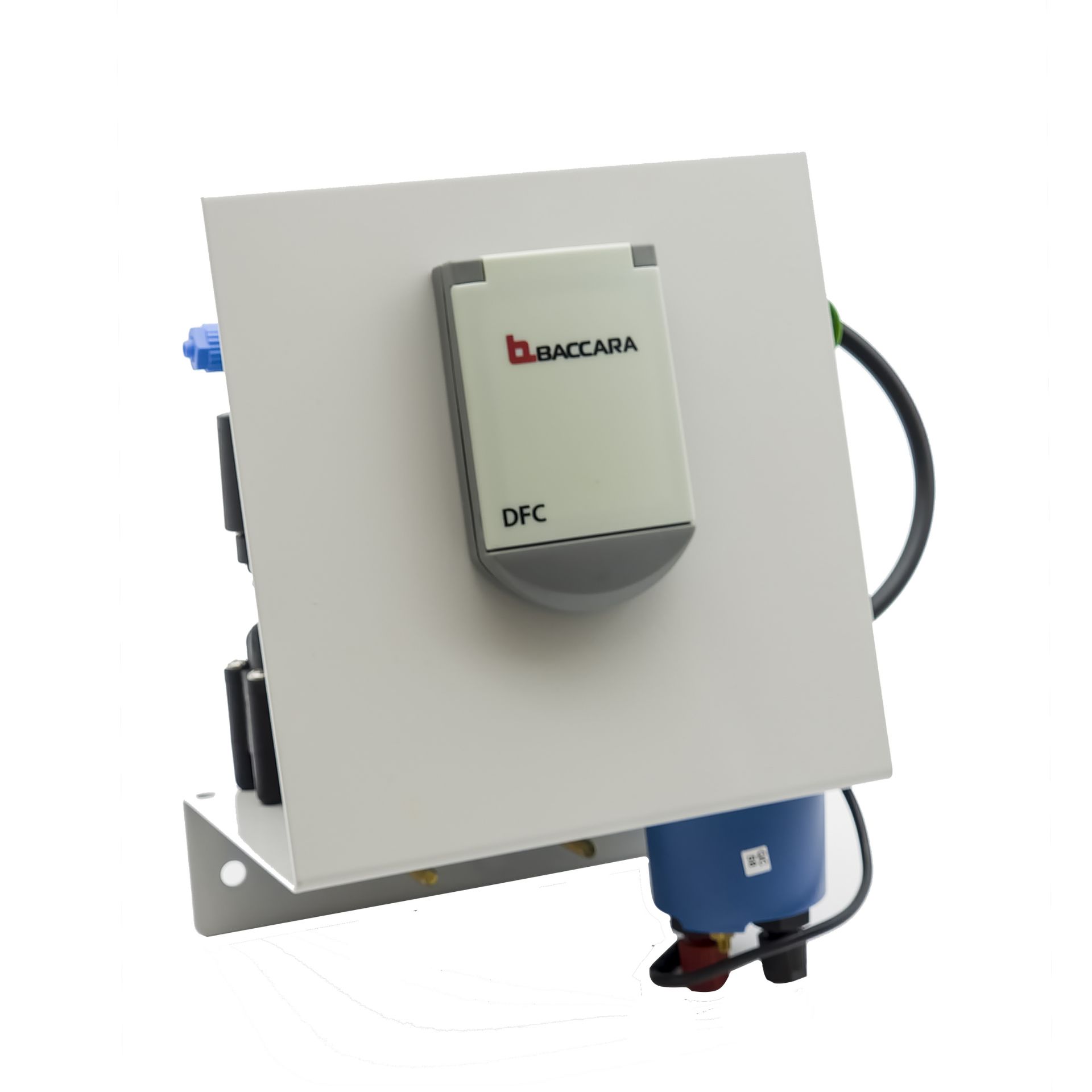

DFC controller, suitable for DC only, and one analog sensor |
| Mechanical |
• Operating temperature : -10ºC to 60ºC
• Outdoor UV protection
• Front panel cover protection
• "H" proof pressure : 14 bar (203 PSI)
• "H" pressure must be ≥ "L" pressure |
| Electrical |
DC units are powered by single 9V alkaline battery; use best
quality to ensure at least one year's autonomous operation
• Back-up memory
• Low battery warning
• Power saving LCD |
| Mounting |
• Pressure ports 1/8" BSP/NPT (male)
• High pressure port is marked by the letter "H" on the housing
• Connect high pressure before low pressure
• Disconnect low pressure before high pressure
Controller :
• Directly on a 28mm diameter solenoid in horizontal or
vertical position with adaptor
• Wall mounting with four screws
• Accessories provided | Sensor : 2" (52 mm diameter) |
| Software |
See 'Programming key features' table |
| Options |
Option to change default factory settings |
| Standard protection class |
• IP66 | Dust and watertight |
| Solenoid |
G75-A, GALIT Latch 4Ω, G75-A3P 1Ω |
