Technical Data
| Solenoid |
Supplied with 3W NO 1 2mm G75 operator |
| Assembly |

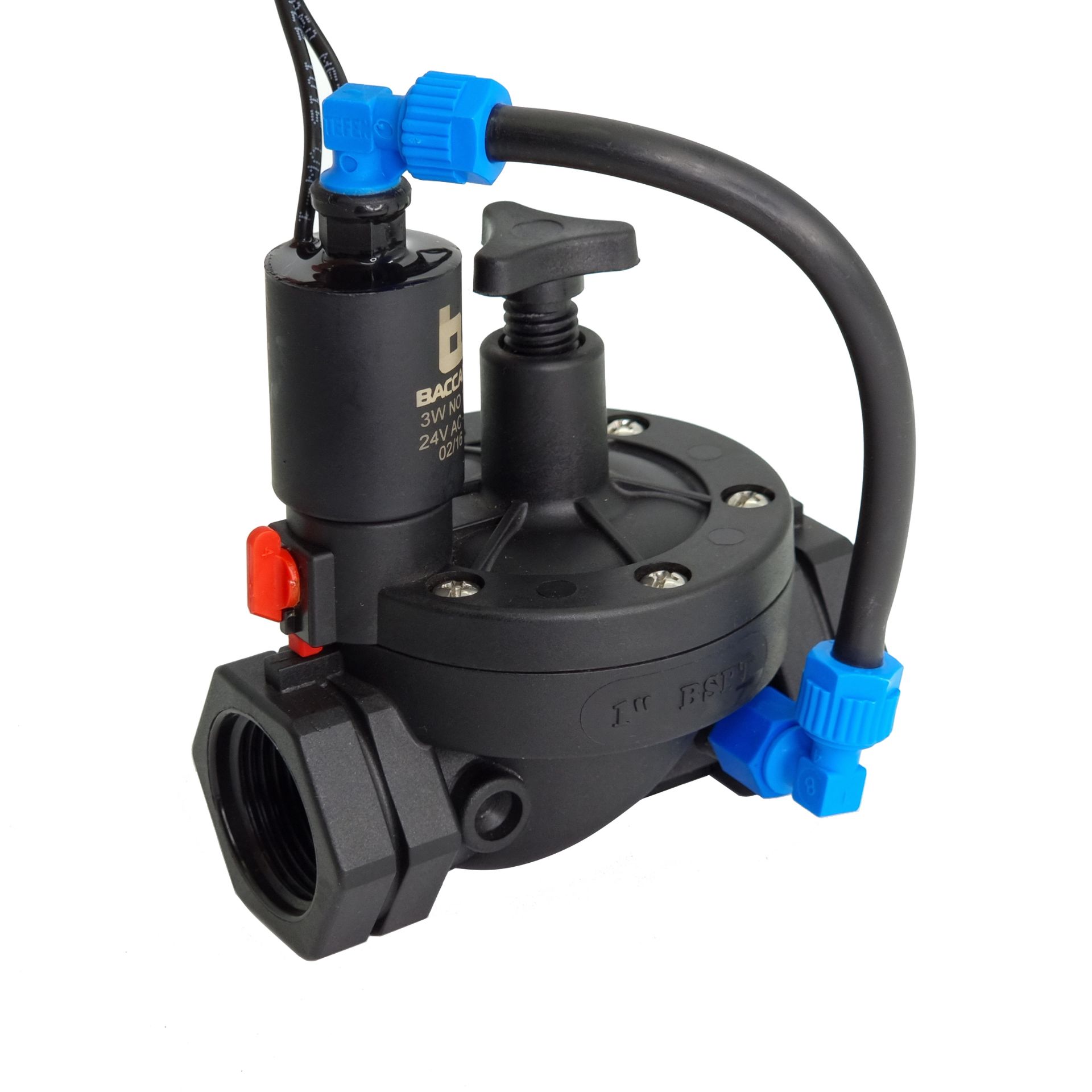

Upstream pilot control valve is supplied with
finger filter and accessories |
| Function |
2 Way NC |
| Ports size |
3/4", 1", 1-1/2", 2" BSPT |
| Pressure range |
0.3 to 10 bar |
| Temperature range |
Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC |
Materials in contact
with media |
Manual override:
Reinforced Nylon
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Diaphragm:
NR
Seals:
NBR
Spring:
Stainless Steel AISI 300 series |
| Solenoid |
• G75, 2W NC solenoids, all voltages.
• AC, DC and Latch |
| Coil voltage |
• Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal |
Voltage and Power Consumption
| |
AC (W)
50 Hz |
DC (W) |
| V |
2 |
4.5 |
| 12 |
• |
• |
| 24 |
• |
• |
| 110 |
• |
• |
Voltage and Current Table
| Solenoid |
Voltage |
Inrush [A] |
Holding [A] |
| 2W 50 Hz |
+10%
n-20%
V |
0.3 |
0.19 |
| 2W 60 Hz |
0.2 |
0.14 |
| 3W 50/60 Hz |
0.125 |
0.125 |
| DC |
4.5W |
Coil Resistance vs Input voltage range
| Resistance [Ω] |
Suitable input voltage range [V] |
| 4 |
6 - 9 |
| 9 |
12 - 14 |
| 12 |
14 - 16 |
| 23 |
18 - 21 |

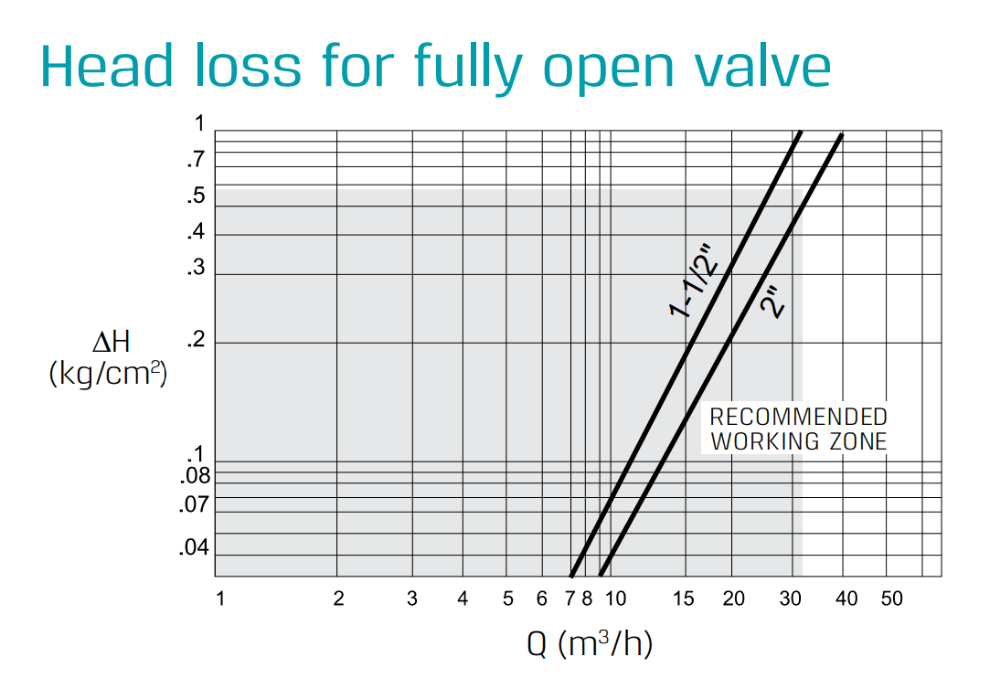

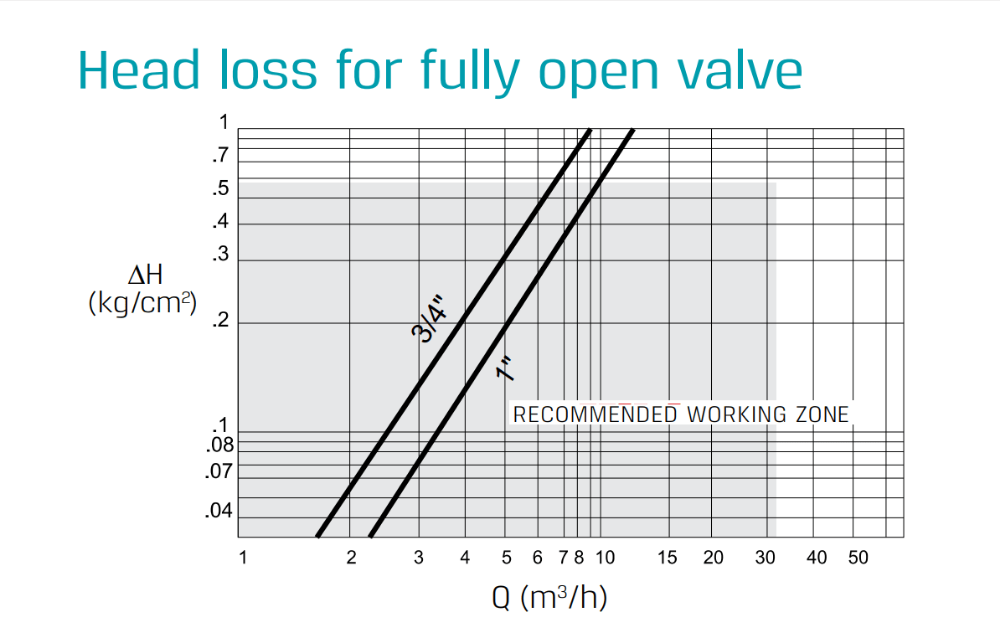

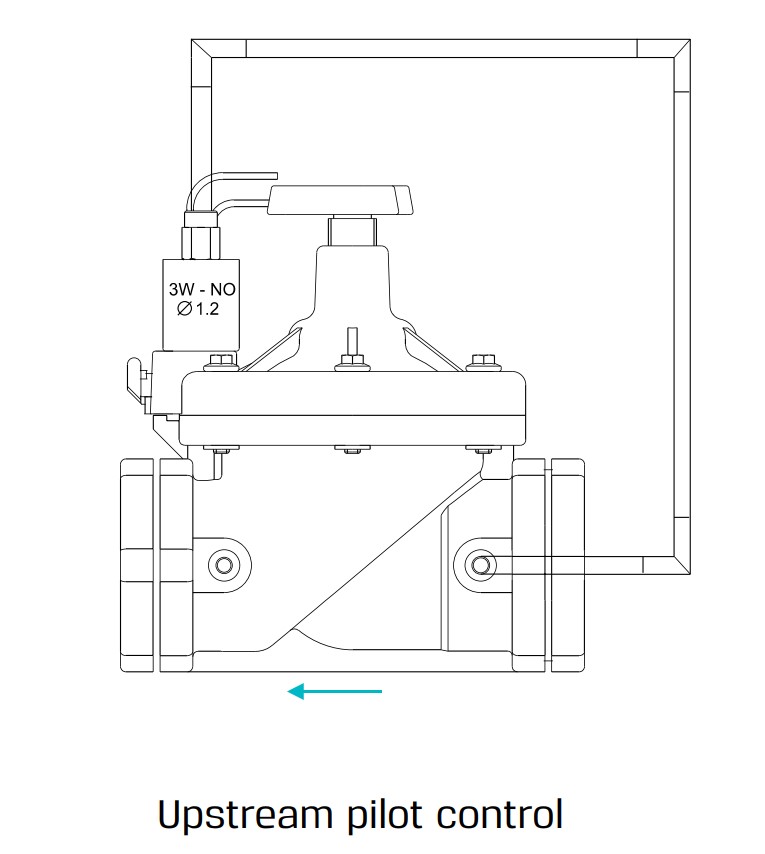

G75-S-Plumbing-Diagram
