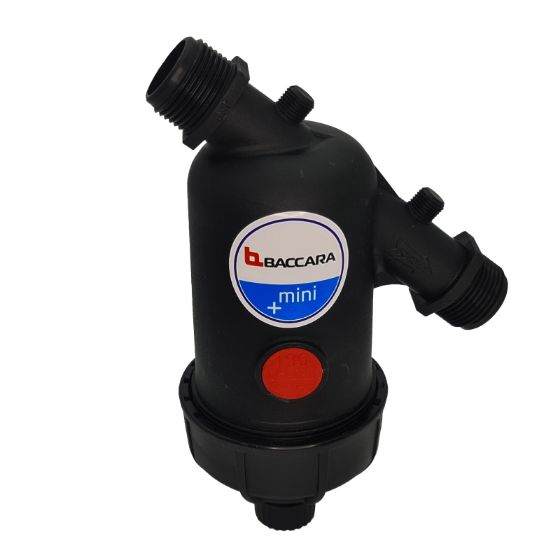

Baccara Mini Disc or Screen Filter

Baccara Mini Disc or Screen Filter

Baccara Mini Disc or Screen Filter 130 micron

Baccara flow rate for disc filter

Baccara flow rate for screen filter

Baccara mini inline filter technical specifications

Sorry - this product is no longer available

Manual inline Filter

Be the first to review this product

Body Material	:	Plastic
Internal Material	:	PP – PRGF
Maximum Working Pressure	:	8 bar
Maximum Working Temperature	:	60℃
The Filtration Sensitivity	:	130 micron
Cartridge	:	Disc or Screen
Made in	:	Turkey

US $17.00

Manufacturer: Baccara

SKU: MDF-MSF

Availability:

In stock

Shipping

Delivery date 2-3 business days

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Plastic Filter Size: *

PLEASE SELECT A SIZE

3/4" (20 mm)
1" (25 mm)
1 1/2" (40 mm) [+US $10.00]
2" (50 mm) [+US $17.00]

Cartridge Type: *

Disc Filter
Screen Filter

Qty:

+ -

Technical Specifications

Size

3/4", 1", 1 ¹/₂", 2" BSP

The Filtration Sensitivity

130 micron

Flow Rate

Please refer to the graph below

Maximum Working Pressure

8 bars

Maximum Working Temperature

60℃

Body Material

Plastic

Internal Material

PP – PRGF

Media

Water

Code	Size (Inch)	Filtr. Area (cm²)	Capacity (m³/h)
MSF1	¾"	115	3
MSF2	1"	115	5
MSF3	1¼"	275	8
MSF4	1½"	275	10
MSF5	2"	275	12

Size vs Flow Rate

Size	Flow Rate
3/4" BSP	5 m3/h
1" BSP	6 m3/h
1 ¹/₂" BSP	15 m3/h
2" BSP	25 m3/h

Technical Specifications

Size

3/4", 1", 1 ¹/₂", 2" BSP

The Filtration Sensitivity

130 micron

Flow Rate

Please refer to the graph below

Maximum Working Pressure

8 bars

Maximum Working Temperature

60℃

Body Material

Plastic

Internal Material

PP – PRGF

Media

Water

Code	Size (Inch)	Filtr. Area (cm²)	Capacity (m³/h)
MSF1	¾"	115	3
MSF2	1"	115	5
MSF3	1¼"	275	8
MSF4	1½"	275	10
MSF5	2"	275	12

Size vs Flow Rate

Size	Flow Rate
3/4" BSP	5 m3/h
1" BSP	6 m3/h
1 ¹/₂" BSP	15 m3/h
2" BSP	25 m3/h
