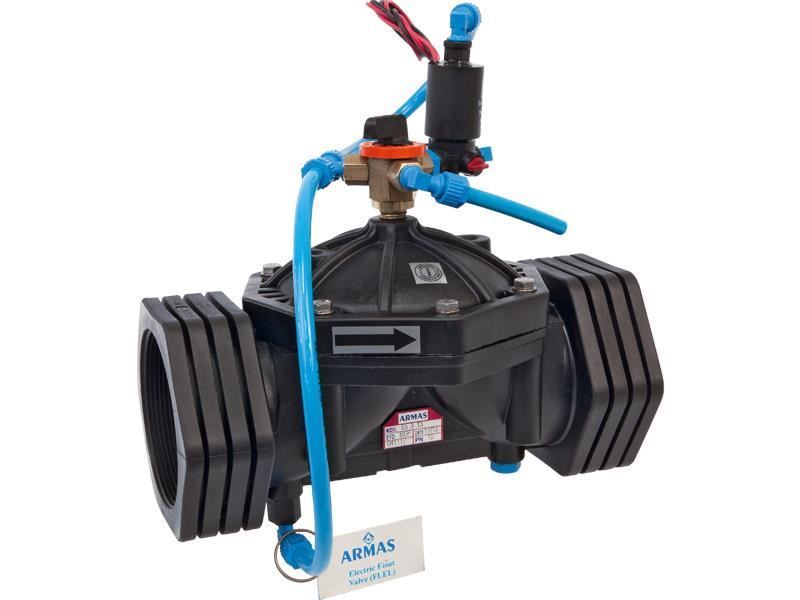

Solenoid Controlled Plastic Hydraulic Control Valve

SKU: 500-Series-EL/B
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

BACCARA G75 Solenoid Hydraulic control valve operated by line pressure and controlled remotely with electric signal.

Easy to use
Low cost
Operation in wide pressure range (PN10)
Perfect modulation even in lower flow rates
Anti-surge closing and opening with flexible diaphragm
Glass Reinforced Poly-amide material
US $113.00
*

Armas Solenoid - Hydraulic Control Valve

Applications

  • Irrigation
  • Industrial
  • Remove operation of hydraulic valve by an electric command.

FEATURES

  • 24V AC N.O. BACCARA G75 Solenoid valve, polyethylene plastic tubing system and nylon fittings.
  • 3-way selector valve
  • Made in Turkey



 Download Baccara G75 1/8" Solenoid Valves Technical Specifications

Armas solenoid hydraulic control valve

ARMAS 500 Series Baccara Solenoid Controlled Valve

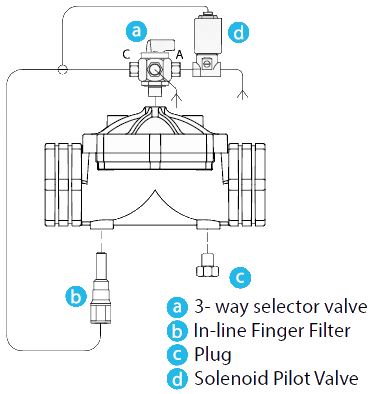

Armas “Solenoid” model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built in 3-way solenoid pilot valve controlled remotely with electric signal. Electric signal for solenoid pilot valve is ensured by means of a control device, time relay, main switch and PLC control units etc. Opening/Closing process can be realized easily thanks to manual control on solenoid pilot valve.

Depending on requirements. 24V AC 50Hz/60Hz or 12V DC, 9V Latch and 12V DC Latch normally open (N.O.) or normally closed (N.C.) solenoids coils can be used on main valve.

Armas Solenoid - Hydraulic Control Valve

Applications

  • Irrigation
  • Industrial
  • Remove operation of hydraulic valve by an electric command.

FEATURES

  • 24V AC N.O. BACCARA G75 Solenoid valve, polyethylene plastic tubing system and nylon fittings.
  • 3-way selector valve
  • Made in Turkey



 Download Baccara G75 1/8" Solenoid Valves Technical Specifications

Armas solenoid hydraulic control valve

ARMAS 500 Series Baccara Solenoid Controlled Valve

Armas “Solenoid” model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built in 3-way solenoid pilot valve controlled remotely with electric signal. Electric signal for solenoid pilot valve is ensured by means of a control device, time relay, main switch and PLC control units etc. Opening/Closing process can be realized easily thanks to manual control on solenoid pilot valve.

Depending on requirements. 24V AC 50Hz/60Hz or 12V DC, 9V Latch and 12V DC Latch normally open (N.O.) or normally closed (N.C.) solenoids coils can be used on main valve.
