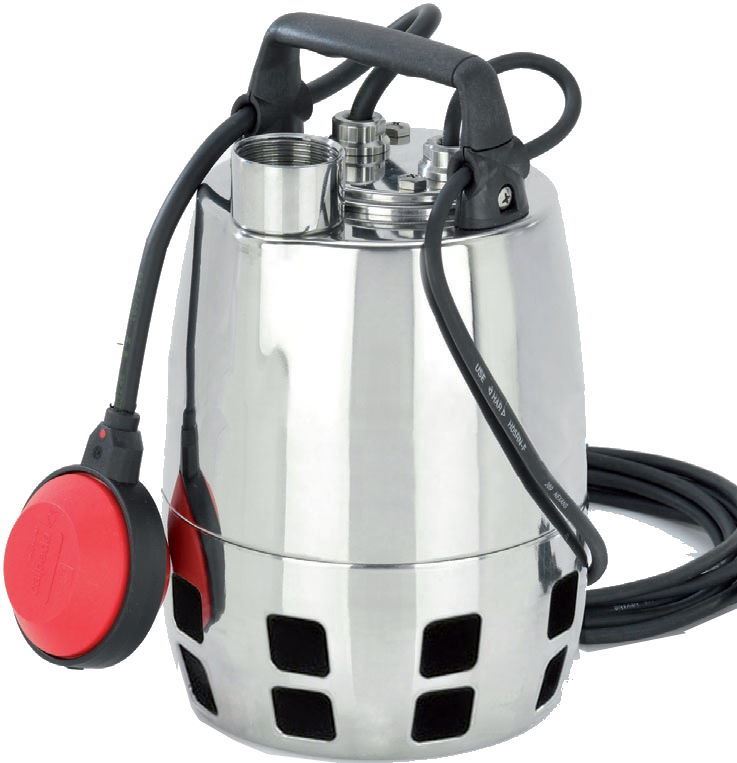

Calpeda GXV Submersible Drainage Pump with Vortex Impeller

Premium quality submersible drainage pump in stainless steel with vortex impeller

Motor Range
:
0.25 KW (0.33 HP) - 0.45 KW (0.6 HP)
Impeller
:
Chrome-nickel steel
Body
:
Chrome-nickel steel
Maximum immersion depth
:
5 m
Minimum water level w/float
:
70 mm
US $461.00
US $558.00
Manufacturer: Calpeda Pumps
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Construction

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GXV drainage pump with free-flow (vortex) impeller.
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket.
  • Double shaft seal with oil chamber.
  • Made in Italy
  • With float switch

Applications

  • For clean or slightly dirty water, containing solids up to 25 mm grain size.
  • Particularly suitable for liquids with a high solid content.

Operating Conditions

  • Solids passage up to 25 mm
  • Liquid temperature up to 50 oC
  • Maximum immerson depth: 5m
  • Minimum water level with float: 130 mm
  • Minimum water level manual operation: 30 mm
  • Continuous duty

Motor:

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • Single-phase 230 V, with float switch and thermal protector.
  • Incorporated capacitor.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Double impregnation humidity-proof dry winding.

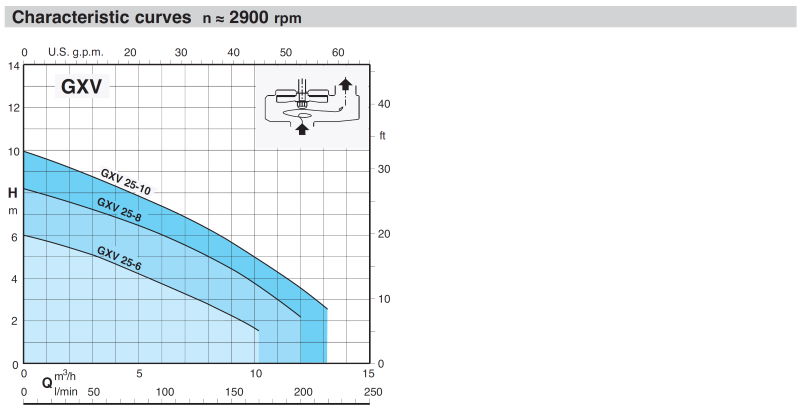

Calpeda-GXV-Performance-Curves
Calpeda-GXRM-Features

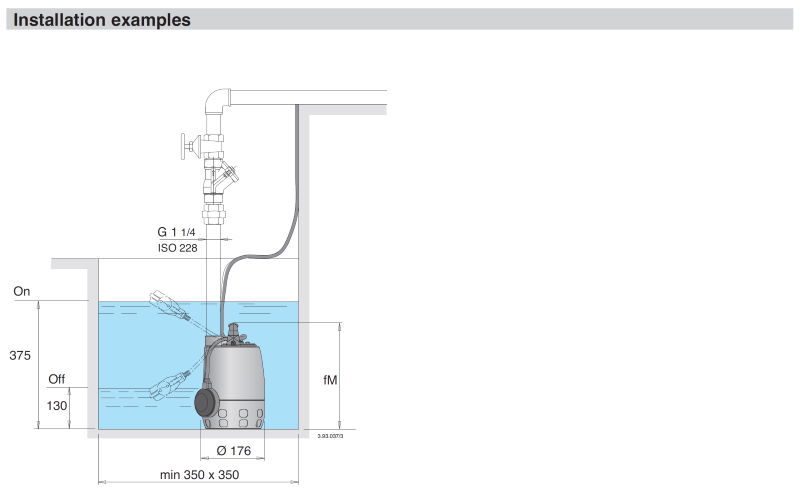

Calpeda-GXV-Installation

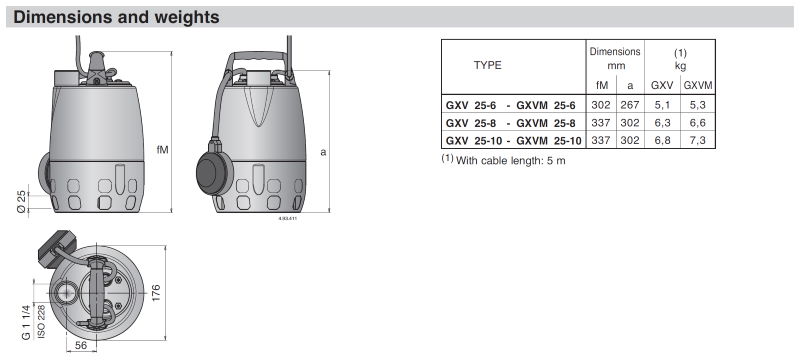

Calpeda-GXV-Dimensions-Weights
