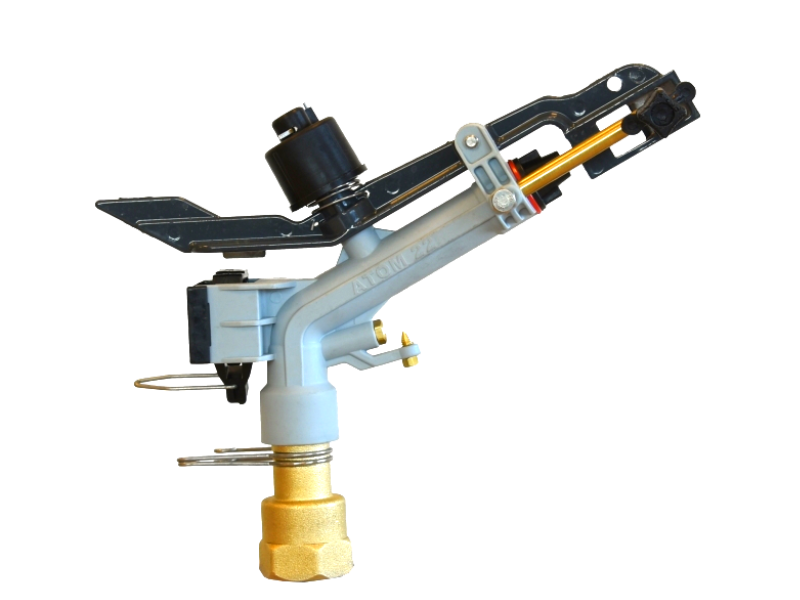

DuCaR Atom 22

NEW low to medium water flow, impact, part circle sprinkler with double sprayers.


Water Input
:
1" Female BSP

Working Pressure
:
29 - 56 psi

Water Flow
:
46 - 144 l/min

Shooting Radius
:
15 - 21 m

Free Nozzles
:
6, 8, 10 mm

Body Angle
:
27°

Box Dimensions
:
15x20x4 cm

Weight
:
0.5 kg

Body Material
:
Plastic & Aluminium

Housing
:
Brass

Made in
:
Turkey
¥323.00
Manufacturer: DuCaR Sprinklers
SKU: Atom22
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 22 sprinkler:

  • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
  • Runs on pressure range between 21 to 56 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 42m diameter
  • Lays down 2.5 to 8.6 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
  • Great for any field crops and vegetables
  • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel



Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2





IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 22 sprinkler:

  • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
  • Runs on pressure range between 21 to 56 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 42m diameter
  • Lays down 2.5 to 8.6 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
  • Great for any field crops and vegetables
  • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel



Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2





Products specifications
Attribute name Attribute value
Body Angle Low Body Angle (18 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 40 l/min
Maximum Water Flow 180 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
Box Dimension 25x40x6 cm
Nozzles 6, 8, 10 mm
Weight 0.8 kg
