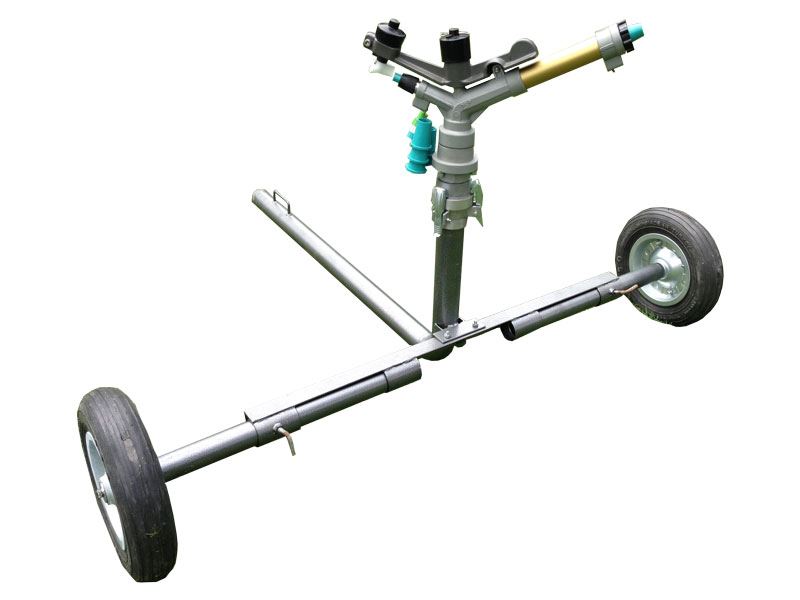

DuCaR Atom 42 Metal with 2 inch Wheeled Cart

SKU: Atom42w/Cart
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

High flow & long throw, full circle irrigation sprinkler with 2 inch inlet/outlet wheeled cart.


Water Input
:
2" Female BSP

Working Pressure
:
29 - 85 psi

Water Flow
:
183 - 850 l/min

Shooting Radius
:
24 - 47 m

Free Nozzles
:
8 mm (Sec.) 12, 14, 16, 18, 20, 22 mm

Body Angle
:
28°

Sprayers
:
2

Material
:
Iron Cast, Aluminium & Brass
US $444.00

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 42 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

  • Comes with 12, 14, 16, 18, 20, 22 mm nozzles
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 90m diameter!
  • Lays down 11 to 51 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 24 79 183,3 11 48 1384 0,34 7,9
12 .47 3 44 29 95 225 13,5 59 1962 0,48 6,9
12 .47 4 56 31 102 258,3 15,5 68 2461 0,61 6,3
14 .55 3 56 30 98 283,3 17 75 2461 0,61 6,9
14 .55 4 70 31 102 325 19,5 86 2826 0,70 6,9
14 .55 5 85 35 115 366,7 22 97 3215 0,79 6,8
16 .62 3 56 32 105 350 21 92 2826 0,70 7,4
16 .62 4 70 35 115 400 24 106 3419 0,84 7,0
16 .62 5 85 39 125 450 27 119 3846 0,95 7,0
18 .70 3 85 33 108 433,3 26 114 3017 0,75 8,6
18 .70 4 85 36 118 508,3 30,5 134 3630 0,90 8,4
18 .70 5 85 40 131 566,7 34 150 4298 1,06 7,9
20 .78 3 85 35 115 500 30 132 3630 0,90 8,3
20 .78 4 85 39 128 608,3 36,5 161 4298 1,06 8,5
20 .78 5 85 43 141 666,7 40 176 5024 1,24 8,0
22 .86 4 85 40 131 683,3 41 181 4298 1,06 9,5
22 .86 5 85 44 144 766,7 46 203 5024 1,24 9,2
22 .86 6 85 47 154 850 51 225 5805 1,43 8,8

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 42 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

  • Comes with 12, 14, 16, 18, 20, 22 mm nozzles
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 90m diameter!
  • Lays down 11 to 51 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 24 79 183,3 11 48 1384 0,34 7,9
12 .47 3 44 29 95 225 13,5 59 1962 0,48 6,9
12 .47 4 56 31 102 258,3 15,5 68 2461 0,61 6,3
14 .55 3 56 30 98 283,3 17 75 2461 0,61 6,9
14 .55 4 70 31 102 325 19,5 86 2826 0,70 6,9
14 .55 5 85 35 115 366,7 22 97 3215 0,79 6,8
16 .62 3 56 32 105 350 21 92 2826 0,70 7,4
16 .62 4 70 35 115 400 24 106 3419 0,84 7,0
16 .62 5 85 39 125 450 27 119 3846 0,95 7,0
18 .70 3 85 33 108 433,3 26 114 3017 0,75 8,6
18 .70 4 85 36 118 508,3 30,5 134 3630 0,90 8,4
18 .70 5 85 40 131 566,7 34 150 4298 1,06 7,9
20 .78 3 85 35 115 500 30 132 3630 0,90 8,3
20 .78 4 85 39 128 608,3 36,5 161 4298 1,06 8,5
20 .78 5 85 43 141 666,7 40 176 5024 1,24 8,0
22 .86 4 85 40 131 683,3 41 181 4298 1,06 9,5
22 .86 5 85 44 144 766,7 46 203 5024 1,24 9,2
22 .86 6 85 47 154 850 51 225 5805 1,43 8,8
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2"
Circle Full
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 85 psi (6 bar)
Minimum Required Water Flow 185 l/min
Maximum Water Flow 850 l/min
Minimum Shooting Range 21 - 25 m
Maximum Shooting Range 41 - 50 m
Box Dimension 55x34x12 cm
Nozzles 12, 14, 16, 18, 20, 22 mm
Weight 3.4 kg
