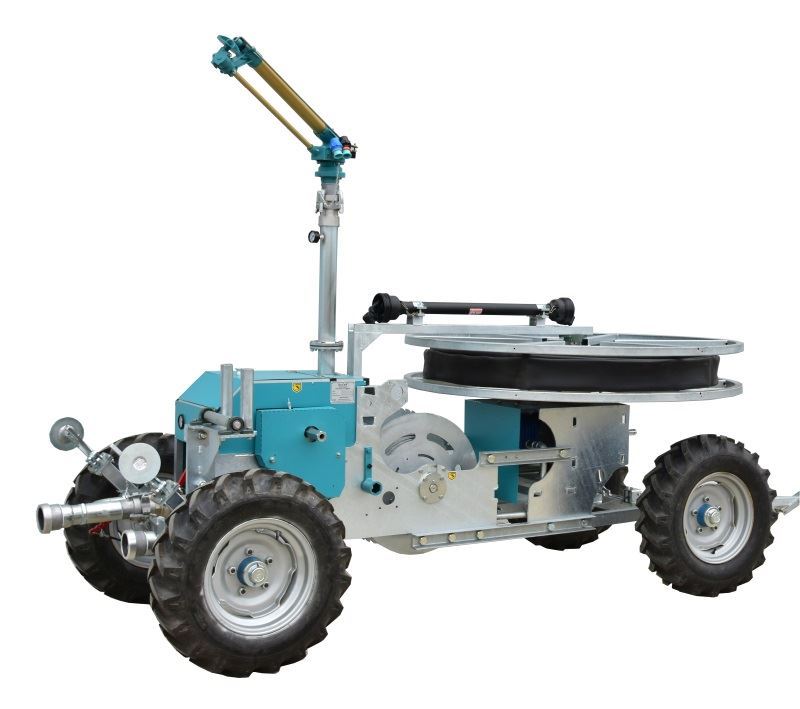

IrriCruiser ULTIMATE Travelling Irrigator

SKU: IrriCruiser-Ultimate
Availability: In stock
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

Latest Technology, heavy duty, easy to use, efficient, large spray width, turbine drive, soft hose travelling irrigator with FREE 3.5", 200 m lay flat hose.

Run Length
:
400 or 500 m
Lay Flat Hose
:
FREE 3.5" 200 m Premium Drag Hose
Working Pressure
:
70 - 100 psi
Water Flow
:
500 - 1500 l/min
Effective Spray Width
:
70 - 120 m
Total Irrigated Area
:
445 X 630 m = 280,350 m² (28 Hectare) in 7 days
Speed
:
10 - 70 m/hour
Sprinkler
:
DuCaR Green 150
Mechanism
:
Turbine drive, BIMA 3-Speed Gear Box & Automatic Travel Shut Off
Weight
:
1200 kg
Construction
:
Heavy duty welded chassis and hot dip galvanised hose reel
Call for pricing

DuCaR IrriCruiser ULTIMATE - New Generation Travelling Irrigator

APPLICATIONS

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Hot dip galvanised hose reel and frame
  • Travel shut-off mechanism
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
  • 3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control: Extremely wide range of speed for any crop and application.
  • Manual brake system
  • Rear Tyres 750 x 16 - Front Tyre : 4.5 x 12
  • PTO driven integrated hose reel
  • PTO driven PURGE pump allows you to easily empty the hose before rewinding the hose
  • Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Sensitive wheel system
  • NO EXHAUST WATER - NO PISTON - NO TOO MANY MOVING PARTS
  • Comes with 200m of 3.5" Premium Quality, German Made Drag Hose with Fittings
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCruiser Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
  • DuCaR IrriCruiser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCruiser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
  • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCruiser with infinite range of travel speeds to suit different crop water requirements.
  • The turbine’s RPM and travelling speed is read on accurate digital tachometers.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

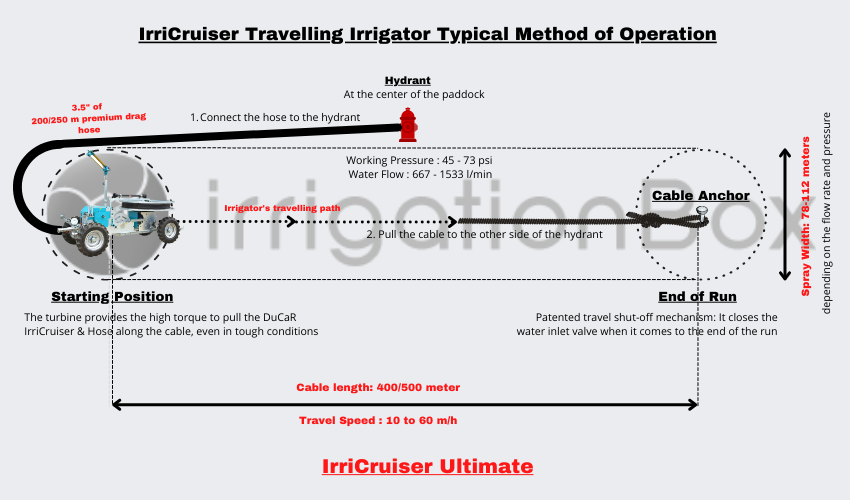

Irricruiser operation illustration



  Tribune Pressure Loss
1.3 bar
Tribune Pressure Loss
1.1 bar
Tribune Pressure Loss
0.8 bar
Tribune Pressure Loss
0.8 bar
Tribune Pressure Loss
0.8 bar
Tribune Pressure Loss
0.8 bar

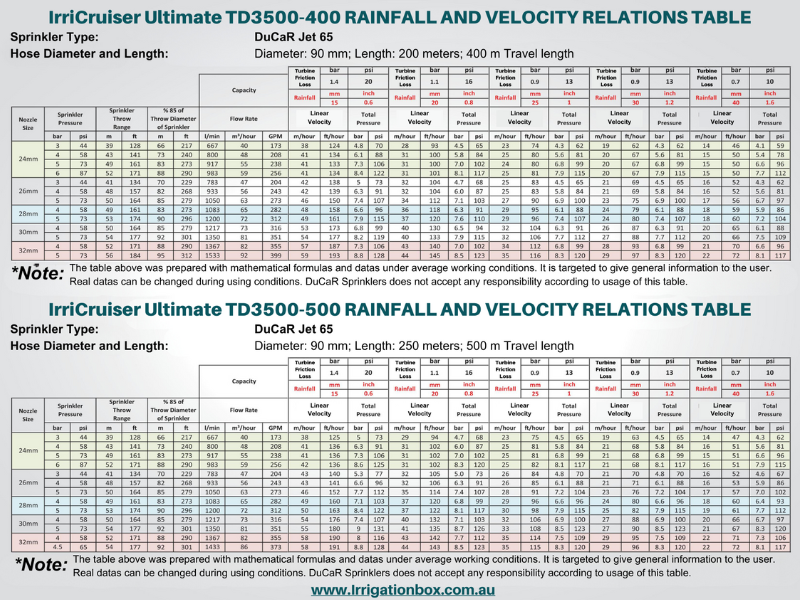

  Capacity Irrigated
Area
Rainfall
10 mm
Rainfall
15 mm
Rainfall
20 mm
Rainfall
25 mm
Rainfall
30 mm
Rainfall
40 mm
Nozzle Size Sprinkler Pressure (Bar)

Throw (Radius)

(m)

% 85 of Throw Diameter of Sprinkler (m) Flow Rate (l/min) Flow Rate (m3/h) m 2 Lineer Velocity
(m/h)
Total Pressure
(Bar)
Lineer Velocity
(m/h)
Total Pressure
(Bar)
Lineer Velocity
(m/h)
Total Pressure
(Bar)
Lineer Velocity
(m/h)
Total Pressure
(Bar)
Lineer Velocity
(m/h)
Total Pressure
(Bar)
Lineer Velocity
(m/h)
Total Pressure
(Bar)
20 mm 3 35 60 463 27.8 25,190 47 4.8 31 4.6 23 4.3 19 4.3 16 4.3 12 4.0
4 38 65 548 32.9 27,478 51 6.1 34 5.9 25 5.6 20 5.6 17 5.6 13 5.3
5 42 71 617 37 30,561 52 7.3 35 7.1 26 6.8 21 6.8 17 6.8 13 6.5
6 44 75 700 42 32,116 56 8.6 37 8.4 28 8.1 22 8.1 19 8.1 14 7.8
22 mm 3 36 61 567 34 25,950 56 5.1 37 4.9 28 4.6 22 4.6 19 4.6 14 4.3
4 41 70 680 40.8 29,787 59 6.5 39 6.3 29 6.0 20 6.0 20 6.0 15 5.7
5 44 75 753 45.2 32,116 60 7.7 40 7.5 30 7.2 24 7.2 20 7.2 15 6.9
6 48 82 783 47 35,253 58 9.0 38 8.8 29 8.5 23 8.5 19 8.5 14 8.2
24 mm 3 38 65 683 41 27,478 63 5.5 42 5.3 32 5.0 25 5.0 21 5.0 16 4.7
4 43 73 800 48 31,337 66 6.9 44 6.7 33 6.4 26 6.4 22 6.4 16 6.1
5 49 83 917 55 36,044 66 8.5 44 8.3 33 8.0 26 8.0 22 8.0 17 7.7
26 mm 4 48 82 850 51 35,253 63 7.2 42 7 31 6.7 25 6.7 21 6.7 16 6.4
5 50 85 950 57 36,836 67 8.6 45 8.4 34 8.1 27 8.1 22 8.1 17 7.8
28 mm 4 49 83 1000 60 36,044 72 7.9 48 7.7 36 7.4 29 7.4 24 7.4 18 7.1
5 53 90 1100 66 39,226 73 9.4 49 9.2 37 8.9 29 8.9 24 8.9 18 8.6



Technical Specifications for DuCaR Green 150 Sprinkler Head
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0
