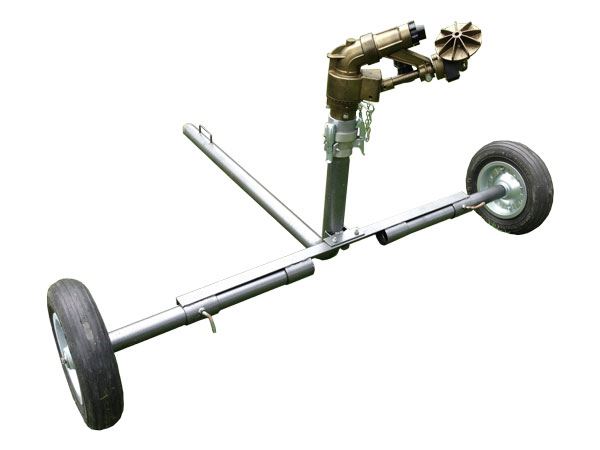

DuCaR Turf JET with Wheeled Cart

SKU: TurfJETw/Cart
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

Low flow, portable, gear drive turf - lawn sprinkler with wheeled cart. Perfect water uniformity.


Water Input
:
2" Female BSP

Working Pressure
:
29 - 100 psi

Water Flow
:
108 - 808 l/min

Shooting Radius
:
19 - 46 m

Free Nozzles
:
10, 12, 14, 16, 18, 20, 22 mm

Body Angle
:
25°
US $848.00

A new model for irrigation of turf and cooling of synthetic turfs. Special and small compact design makes it easy to move. It is specially designed for comfortable and quick movement for use at the horse farms, golf courses and narrow lands. It has body angle of 25° for optimum performance. It may be optionally manufactured with body angle of 23°.

High capacity, medium and high pressure (2 – 7 atm) and gear drive sprinkler head rotating full circle or, when required, in a range set by angle adjustment. Shot reaches to 46 meters in radius under no windy conditions.
Replaceable nozzle ends and gear drive rotation mechanism allow you to irrigate your field with an even water distribution excellently.
It rotates full and semi circle in the same speed.
The smallest nozzle is 10mm. This nozzle requires minimum 6.5 tons of water. The largest 22mm nozzle consumes 48.5 tons of water per hour. It is the professional irrigation gun for natural and synthetic turf. It is suitable for use at locations with confined working and revolving space for irrigation, dust control and cooling applications.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 0,39 2 29 19 62 108,3 6,5 29 1133,5 0,28 5,7
10 0,39 3 44 21 69 125 7,5 33 1384 0,34 5,4
10 0,39 4 56 23 75 143,3 8,6 38 1661 0,41 5,2
12 0,47 2 29 21 69 140 8,4 37 1384 0,34 6,1
12 0,47 2 29 21 69 140 8,4 37 1384 0,34 6,1
12 0,47 3 44 25 82 165 9,9 44 1962 0,48 5,0
12 0,47 4 56 28 92 191,7 11,5 51 2461 0,61 4,7
12 0,47 4 56 28 92 191,7 11,5 51 2461 0,61 4,7
14 0,70 3 56 28 92 238,3 14,3 63 2461 0,61 5,8
14 0,70 4 70 30 98 283,3 17 75 2826 0,70 6,0
14 0,70 5 85 32 105 303,3 18,2 80 3215 0,79 5,7
16 0,62 3 56 30 98 303,3 18,2 80 2826 0,70 6,4
16 0,62 4 70 33 108 351,7 21,1 93 3419 0,84 6,2
16 0,62 5 85 35 115 391,7 23,5 103 3846 0,95 6,1
18 0,70 3 85 31 102 366,7 22 97 3017 0,75 7,3
18 0,70 4 85 34 112 438,3 26,3 116 3630 0,90 7,2
18 0,70 5 85 37 121 491,7 29,5 130 4298 1,06 6,9
18 0,70 6 85 38 125 536,7 32,2 142 4534 1,12 7,1
20 0,78 3 85 34 112 450 27 119 3630 0,90 7,4
20 0,78 4 85 37 121 525 31,5 139 4298 1,06 7,3
20 0,78 5 85 40 131 600 36 159 5024 1,24 7,2
22 0,86 4 85 37 121 633,3 38 167 4298 1,06 8,8
22 0,86 5 85 40 131 700 42 185 5024 1,24 8,4
22 0,86 6 85 43 141 733,3 44 194 5805 1,43 7,6
22 0,86 7 100 46 151 808,3 48,5 214 6644 1,64 7,3

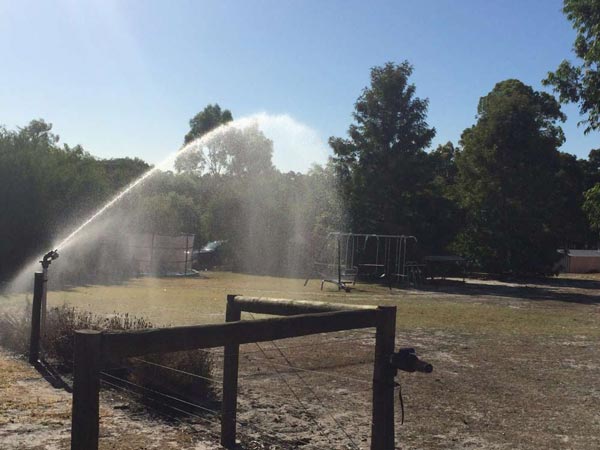

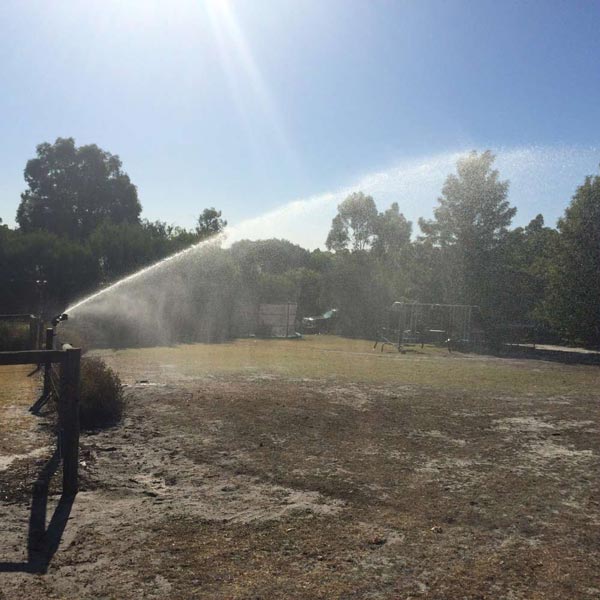

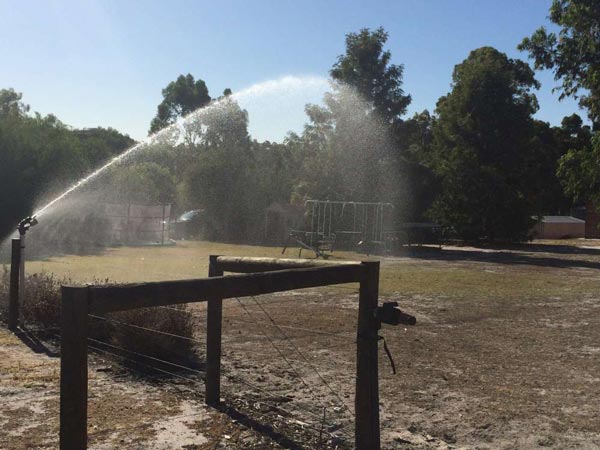

Photos Uploaded by Our Users
ducar-turf-jet-perth-australia-1 ducar-turf-jet-perth-australia-2
ducar-turf-jet-perth-australia-3 ducar-turf-jet-perth-australia-4

A new model for irrigation of turf and cooling of synthetic turfs. Special and small compact design makes it easy to move. It is specially designed for comfortable and quick movement for use at the horse farms, golf courses and narrow lands. It has body angle of 25° for optimum performance. It may be optionally manufactured with body angle of 23°.

High capacity, medium and high pressure (2 – 7 atm) and gear drive sprinkler head rotating full circle or, when required, in a range set by angle adjustment. Shot reaches to 46 meters in radius under no windy conditions.
Replaceable nozzle ends and gear drive rotation mechanism allow you to irrigate your field with an even water distribution excellently.
It rotates full and semi circle in the same speed.
The smallest nozzle is 10mm. This nozzle requires minimum 6.5 tons of water. The largest 22mm nozzle consumes 48.5 tons of water per hour. It is the professional irrigation gun for natural and synthetic turf. It is suitable for use at locations with confined working and revolving space for irrigation, dust control and cooling applications.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 0,39 2 29 19 62 108,3 6,5 29 1133,5 0,28 5,7
10 0,39 3 44 21 69 125 7,5 33 1384 0,34 5,4
10 0,39 4 56 23 75 143,3 8,6 38 1661 0,41 5,2
12 0,47 2 29 21 69 140 8,4 37 1384 0,34 6,1
12 0,47 2 29 21 69 140 8,4 37 1384 0,34 6,1
12 0,47 3 44 25 82 165 9,9 44 1962 0,48 5,0
12 0,47 4 56 28 92 191,7 11,5 51 2461 0,61 4,7
12 0,47 4 56 28 92 191,7 11,5 51 2461 0,61 4,7
14 0,70 3 56 28 92 238,3 14,3 63 2461 0,61 5,8
14 0,70 4 70 30 98 283,3 17 75 2826 0,70 6,0
14 0,70 5 85 32 105 303,3 18,2 80 3215 0,79 5,7
16 0,62 3 56 30 98 303,3 18,2 80 2826 0,70 6,4
16 0,62 4 70 33 108 351,7 21,1 93 3419 0,84 6,2
16 0,62 5 85 35 115 391,7 23,5 103 3846 0,95 6,1
18 0,70 3 85 31 102 366,7 22 97 3017 0,75 7,3
18 0,70 4 85 34 112 438,3 26,3 116 3630 0,90 7,2
18 0,70 5 85 37 121 491,7 29,5 130 4298 1,06 6,9
18 0,70 6 85 38 125 536,7 32,2 142 4534 1,12 7,1
20 0,78 3 85 34 112 450 27 119 3630 0,90 7,4
20 0,78 4 85 37 121 525 31,5 139 4298 1,06 7,3
20 0,78 5 85 40 131 600 36 159 5024 1,24 7,2
22 0,86 4 85 37 121 633,3 38 167 4298 1,06 8,8
22 0,86 5 85 40 131 700 42 185 5024 1,24 8,4
22 0,86 6 85 43 141 733,3 44 194 5805 1,43 7,6
22 0,86 7 100 46 151 808,3 48,5 214 6644 1,64 7,3

Photos Uploaded by Our Users
ducar-turf-jet-perth-australia-1 ducar-turf-jet-perth-australia-2
ducar-turf-jet-perth-australia-3 ducar-turf-jet-perth-australia-4
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 100 psi (7bar)
Minimum Required Water Flow 100 l/min
Maximum Water Flow 850 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 41 - 50 m
Box Dimension 19.5x 20x45 cm
Nozzles 10, 12, 14, 16, 18, 20, 22 mm
Weight 6.2 kg
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

DuCaR Sprinklers

Established in 1981 and headquartered in Turkey, is one of the leader irrigation sprinkler manufacturing companies in the world. It offers products and services ranging from gear driven, impact irrigation sprinklers, connection stands, pumps, and complete irrigation system design. Since agricultural and industrial irrigation needs vary for different environmental effects, producing only couple of different types of sprinklers does not meet the all requirments in different regions and countries. Hence why DuCaR Sprinklers offers custom designed sprinkler systems to meet all farmers' requirements around the world.

Its fully automated latest technology manufactirng system, CNC machines and CAD & CAM software systems enable them to produce accurate and defect free products.

DuCaR Sprinklers works with farmers and scientists around the world to improve irrigation systems' quality to promote sustainable agriculture with best prices.
