Electric Float Level Plastic Control Valve

SKU: 500-Series-FLEL
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

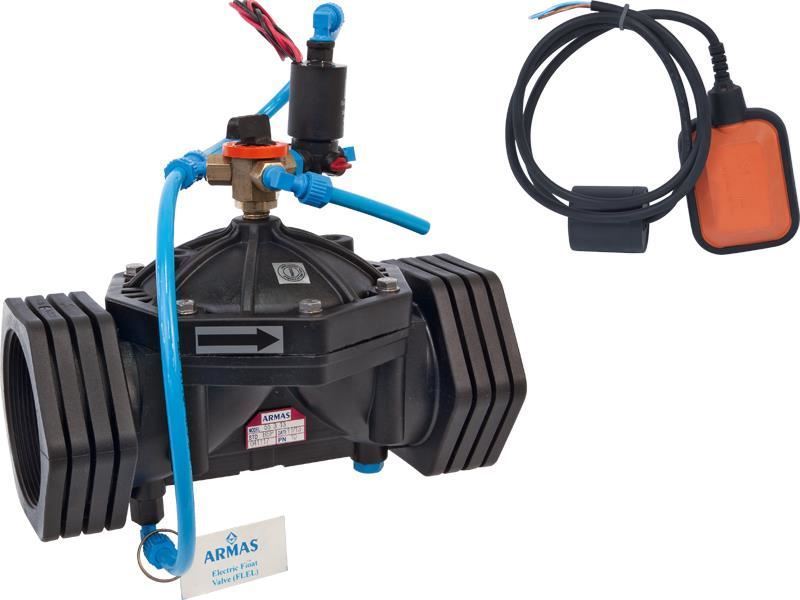

BACCARA G75 Solenoid - Float Level Control Valve controls water level continuously by means of electrical float placed in reservoirs and tanks.

Easy to use
Low cost
Operation in wide pressure range (PN10)
Perfect modulation even in lower flow rates
Anti-surge closing and opening with flexible diaphragm
Glass Reinforced Poly-amide material
US $180.00
*

Armas Solenoid - Electric Float Level Plastic Control Valve

Applications

  • Irrigation
  • Industrial
  • for when the water level reduce to minimum level, main valve opens fully itself and provides the water level at maximum.

FEATURES

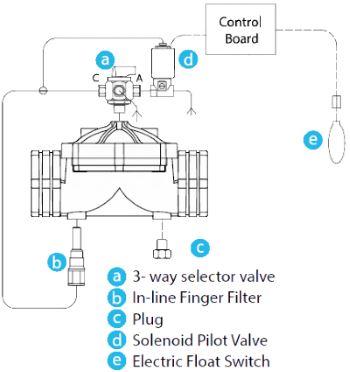

  • Electrically float level switch, 24V AC N.O. solenoid, needle valve, ball valve, polytethylene plastic tubing system and nylon fittings
  • Made in Turkey



Solenoid Electric Float Level Plastic Control Valve

ARMAS 500 Series Electric Float Level Plastic Control Valve

Armas solenoid valve controlled electrical float level control valve is the hydraulic control valve designed to control water level continuously by means of electrical float placed in reservoirs and tanks. Electrical float sends signal to solenoid coil on main valve when water level decreases below set level. Main valve is opened and ensures that tank or reservoir will be filled permanently. When water reaches maximum level, electrical float sends signal to solenoid coil again and main valve is closed as full sealed. Valve may be used in the system by mounting horizontal or vertical positions.

Armas Solenoid - Electric Float Level Plastic Control Valve

Applications

  • Irrigation
  • Industrial
  • for when the water level reduce to minimum level, main valve opens fully itself and provides the water level at maximum.

FEATURES

  • Electrically float level switch, 24V AC N.O. solenoid, needle valve, ball valve, polytethylene plastic tubing system and nylon fittings
  • Made in Turkey



Solenoid Electric Float Level Plastic Control Valve

ARMAS 500 Series Electric Float Level Plastic Control Valve

Armas solenoid valve controlled electrical float level control valve is the hydraulic control valve designed to control water level continuously by means of electrical float placed in reservoirs and tanks. Electrical float sends signal to solenoid coil on main valve when water level decreases below set level. Main valve is opened and ensures that tank or reservoir will be filled permanently. When water reaches maximum level, electrical float sends signal to solenoid coil again and main valve is closed as full sealed. Valve may be used in the system by mounting horizontal or vertical positions.

Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
Armas Plastic Hydraulic Control Valves - 500 Series

GENERAL DESCRIPTION

Armas 500 series valves are direct diaphragm closing automatic hydraulic control valves which work with line pressure. They ensure easy and smooth flow with minimum pressure losses thanks to excellent design of valve body and diaphragm. No wearable parts such as stem, bearing and seat exist in main valve body, valve life is much longer than other competitor valves. Only movable part of valve is the valve diaphragm. Armas 500 series hydraulic control valves are designed so that it can be used in potable water force network, agricultural irrigation, filtration, industrial applications by even an unskilled personnel.

GENERAL FEATURES

  • Easy use and maintenance due to simple design
  • Low cost
  • Operation in wide pressure range
  • Perfect modulation even in lower flow rates
  • Anti-surge closing and opening with flexible diaphragm
  • Full tightness thanks to reinforced diaphragm and inner spring
  • Long life with Glass Reinforced Polyamide material
  • Wide control application range by using different pilot valves
  • Operation in both horizontal and vertical positions in application areas

OPERATING PRINCIPLE

It is an automatic hydraulic control valve designed to make desired modulation in main valve network line as full hydraulically by means of line pressure without requiring different energy sources such as electric, pneumatic or mechanic energy.

Armas 500 series valve opening mode

VALVE OPENING MODE

When pilot valve located on main valve being in closed position is brought into relief position, pressurized water within control chamber on main valve diaphragm is released. When line pressure (P1) reaches to a value which will overcome spring force, water carries valve to fully open position by applying a hydraulic force to valve diaphragm from bottom.

Armas 500 series modulation mode

MODULATION MODE

Pilot valves which are connected to main valve actuator ensure that main valve works in modulated mode. According to flow rate or pressure conditions, it ensures that main valve Works in modulation mode by controlling pressure of fluid within main valve actuator (control chamber).

Armas 500 series valve closing mode

VALVE CLOSING MODE

When the pilot valves on the main valve transfers the upstream water pressure to valve actuator (control chamber), water in the control chamber creates a hydraulic force on the valve diaphragm. This pressure force combined with extra force applied by inner spring, ensures that valve will be closed with full tightness.

 Download 500 Series Hydraulic Control Valves Catalogue



Technical Specifications

Model 500 Series Hydraulic Control Valves
Connection Threaded - BSPT or NPT
Hydraulic Connections Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Actuator Type Disc Filter
Diaphragm Closing Type with Single
Control Chamber and Diaphragm Actuator
Material Glass Reinforced Polyamide
Pressure Range 0.7 - 10 bar (10 - 160 psi)
Available Sizes inch mm
1½" 40
2" 50
2½" 65
3" 80
4" 100



Dimensions

Armas 500 series valve dimensions DN D L H
inchmminchmminchmminchmm
1½" 40 2½" 62 7⅞" 200 4⅜" 110
2" 50 3" 75 7⅞" 200 4⅜" 110
2.5" 65 3¾" 95 9⅞" 250 5⅜" 138
3" 80 4¼" 109 9⅞" 250 5⅜" 145



Hydraulic Performance Chart

Armas 500 series valve head loss chart Valve Size mm 40 50 65 80
inch 1½" 2" 2½" 3"
Kv m3/h @ 1 bar 60 70 80 90
Cv gpm @ 1 psi 70 85 95 105
Kv: Valve Flow Coefficient (fluid passing under 1 bar pressure difference in m3/h @ 1 bar)
Cv: Valve Flow Coefficient (fluid passing under 1 bar pressure difference in gpm @ 1 bar)



Material List

Armas 500 series valve parts Part No Part Name Material
1 Body Glass Reinforced Polyamide
2 Bonnet Glass Reinforced Polyamide
3 Diaphragm Natural Rubber
4 Spring Thrust Ring Glass Reinforced Polyamide
5 Spring SST302
6 Bolt SST304
7 Nut Brass

Armas - Valves and Filters

ARMAS was founded in 1998 to produce valves for potable water and agricultural irrigation systems. It has become one of the leader establishments of its sector in a short time thanks to ARMAS makes valves.

ARMAŞ has given high quality services with economical prices to his costumers in industry, potable water networks and agricultural irrigation systems by means of Hydraulic Control Valves, Automatic Filtration Systems, Gate Valves, Ball Valves, Strainers, Check Valves, Air Valves and Hydrants he produced. Our company who does not sacrifice quality in production has used ISO 9001-2000 Quality Management System since 2000. In the scope of importance we gave for both human and environment, we have developed our institutional structure day by day with ISO 14001 Environmental Management System Certificate and TS 18001 Occupational Healthy and Safety Certificate since 2007. Our products have been subjected to pressure and performance tests before sales by Quality Control Department and technical support services have been given at the installation, operation and maintenance stages after sales by our experienced engineers.

ARMAS has continued R&D investments in order to present more quality and reliable products to his costumers, will continue its costumer-satisfaction focused services with increasing achievements in future thanks to his dynamic staff, powerful brand and permanent developing structure.



Made-in-Turkey

*
*
*
