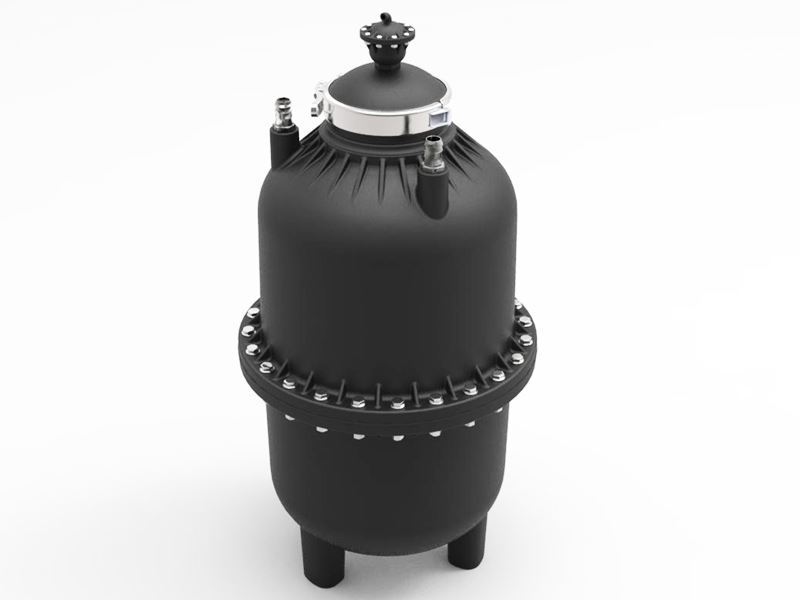

Glass Fiber Reinforced Fertilizer Tank

SKU: Aytok-P1100
Delivery date: 2-3 business days
Manufacturer: Aytok Filters
Body Material : Polyamide - Nylon 6 - 30% Glass Fiber Reinforced
Operating Pressure : 6 bar (88 psi)
Working Temperature : -10° C to 60° C
US $294.00

AYTOK GLASS FIBER REINFORCED FERTILIZER TANK

APPLICATIONS

  • Chemical fertilization applications by pressure agricultural irrigation systems
  • Pesticide administration by pressure agricultural irrigation systems

FEATURES

  • It provides ease of use and of maintenance due to simple structure.
  • It has long economic life.
  • It operates based on line pressure of the system.

Aytok P1100 series fertilizer tanks are developed for chemical fertilizer or pesticide applications directly to root region of the plant using irrigation water of drip or sprinkler irrigation systems. It ensures very practical and convenient fertilizing and pesticide administration in irrigation systems due to simple structure and ease of use. Different models with varying capacities are available including horizontal and vertical types depending on different needs of present irrigation system. Operating based on pressure difference principle in the irrigation systems, Aytok fertilizer tanks will operate long years without requiring maintenance due to resistant construction.

Armas fertilizer tank operating principle

OPERATING PRINCIPLE

Aytok P1100 series fertilizing tank is connected parallel to main pipe of irrigation system using elastic hoses via by-pass method. Irrigation water enters into the tank containing soluble chemical from the inlet hose of fertilizer tank connected to the line. Due to pressure gradient created using a valve or pressure reducer assembled on the irrigation line, chemical fertilizer is solved and it is blended within the tank. Solved chemical fertilizer is supplied to the root region of the plant using irrigation water.



Available models and recommended flow rates

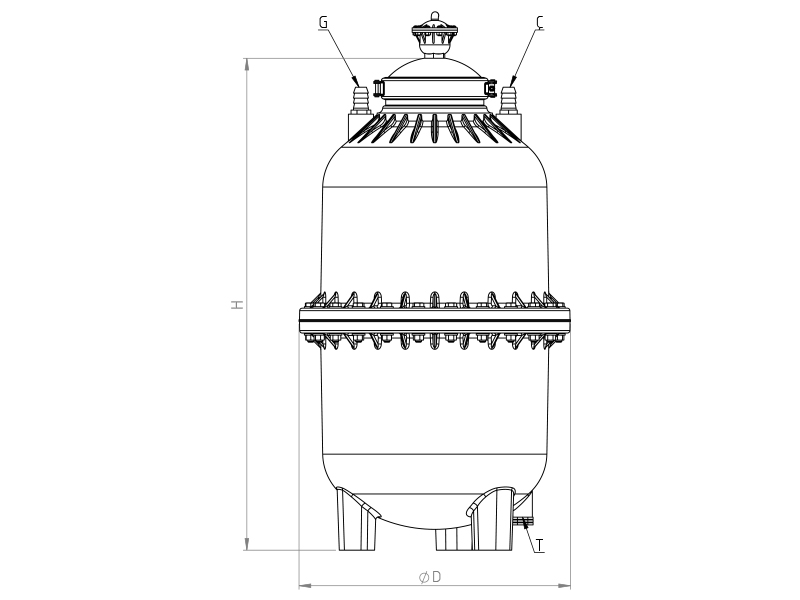

Plastic-fertilizer-technical-drawing Model Capacity ØD G C T H Weight
 litregaloninchmminchmminchmminchmminchmmkglbs
P1100 100 22 21" 533 1" 25 1" 25 3/4" 19 38" 965 24 53



Tank Injection Rate

Armas ferilizer tank injection rate Pressure Difference Injection Rate 3/4" inlet - 3/4" outlet Injection Rate ½" inlet- ½" outlet Injection Rate 1" inlet- 1" outlet
0.9 bar 1400 l/h 3980 l/h 5120 l/h
0.8 bar 1340 l/h 3750 l/h 4830 l/h
0.7 bar 1250 l/h 3510 l/h 4520 l/h
0.6 bar 1160 l/h 3250 l/h 4180 l/h
0.5 bar 1050 l/h 2970 l/h 3800 l/h
0.4 bar 940 l/h 2650 l/h 3420 l/h
0.3 bar 820 l/h 2300 l/h 2950 l/h
0.2 bar 670 l/h 1880 l/h 2400 l/h
0.1 bar 450 l/h 1320 l/h 1700 l/h
