Sorry - this product is no longer available

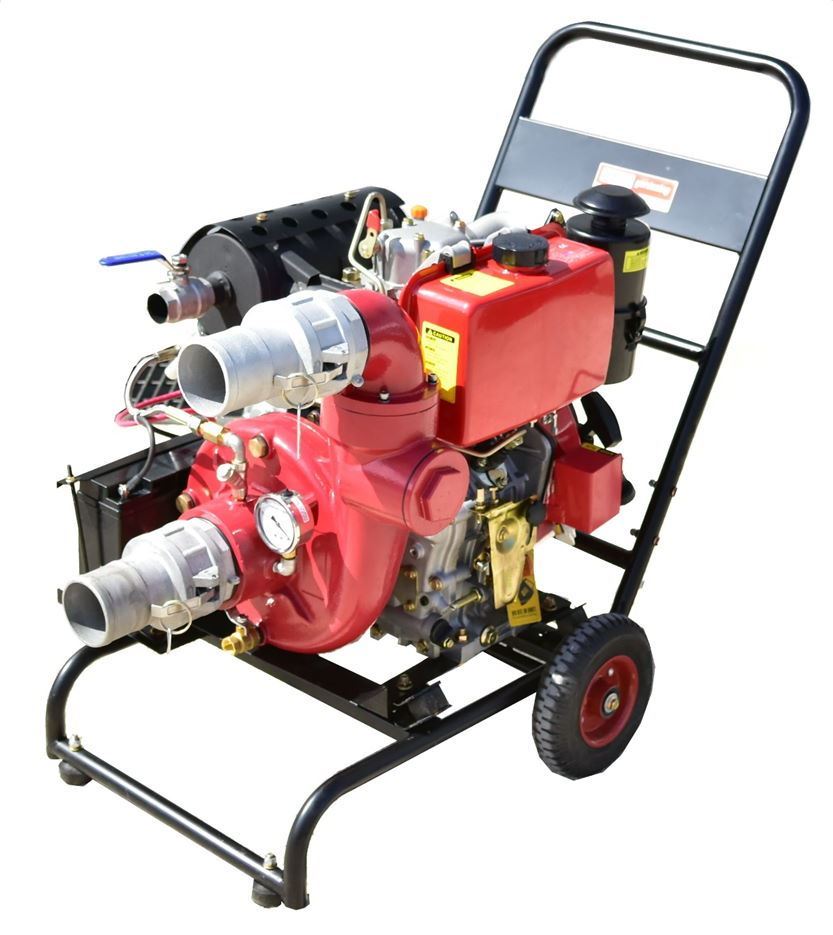

Omega 10HP Diesel Irrigation Pumps - High Pressure High Volume

Perfect for use in the medium range irrigation systems, fire protection, construction and anywhere there is a need to move water.

Max Capacity
:
700 l/min
Max Head
:
75 m at 3600 RPM
Engine Power
:
Omega 10 HP Diesel
Cylinder Volume
:
418 cc
Suction/Discharge
:
3"x3" (80x80 mm)
Fuel Tank
:
5.5 litre
Weight
:
80 kg
Comes with
:
3" Cam Lock Fittings, Plastic Foot Valve and Battery!
US $3,580.00
SKU: OMG-YBP3-75
Out of stock
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Omega 10HP Diesel Engine Powered High Pressure High Volume Irrigation Pump

Long range fuel tank, exhaust primer and electric start, recoil backup.

Exhaust Primer: It is an air operated primer comprised of an Ejector and cast iron Adapter. Unit operates on low engine exhaust pressure. When the exhaust valve (adapter cap) is closed, gases are directed through ejector, and water is drawn to pump by ejector vacuum.

Great for use in the construction, agricultural, fire protection industry and anywhere there is a need to move water or other liquids quickly and efficiently.

This is driven by a 10hp electric start Omega diesel engine, also used in homes and factories in remote areas to provide water supply to fire sprinkler systems.

Features

  • pressure die cast aluminium
  • pump body
  • cast iron volute diffuser
  • cast iron discharge caps
  • simply-charged, self-priming design
  • solid one piece aluminium impeller
  • 5.5 L fuel tank

10HP-Diesel-Powered-Pump-Performance-Curve

Omega 10 HP Diesel High Pressure High Volume Pump's Technical Specifications
Pump Model Engine Power
(HP)

Inlet X Outlet

Max Capacity

Max Head

Max Speed

Max Output

Type

Speed (RPM) m³/h 14 19 23 28 34 42 47 50
l/min 233 316 383 466 566 700 783 833
l/s 3.8 5.2 6.3 7.7 9.4 11.6 13.05 13.8

OMG-YBP3-75

Omega10 hp Diesel with electric/recoil start and exhaust primer 3" x 3" 700 l/min 63 m (95 psi) 3600 RPM 10 HP Single cylinder, 4 stroke air cooled, direct
injection diesel
3600 Head (m) 63 62 59 56 50 38 34 25

Omega 10HP Diesel Engine Powered High Pressure High Volume Irrigation Pump

Long range fuel tank, exhaust primer and electric start, recoil backup.

Exhaust Primer: It is an air operated primer comprised of an Ejector and cast iron Adapter. Unit operates on low engine exhaust pressure. When the exhaust valve (adapter cap) is closed, gases are directed through ejector, and water is drawn to pump by ejector vacuum.

Great for use in the construction, agricultural, fire protection industry and anywhere there is a need to move water or other liquids quickly and efficiently.

This is driven by a 10hp electric start Omega diesel engine, also used in homes and factories in remote areas to provide water supply to fire sprinkler systems.

Features

  • pressure die cast aluminium
  • pump body
  • cast iron volute diffuser
  • cast iron discharge caps
  • simply-charged, self-priming design
  • solid one piece aluminium impeller
  • 5.5 L fuel tank

10HP-Diesel-Powered-Pump-Performance-Curve

Omega 10 HP Diesel High Pressure High Volume Pump's Technical Specifications
Pump Model Engine Power
(HP)

Inlet X Outlet

Max Capacity

Max Head

Max Speed

Max Output

Type

Speed (RPM) m³/h 14 19 23 28 34 42 47 50
l/min 233 316 383 466 566 700 783 833
l/s 3.8 5.2 6.3 7.7 9.4 11.6 13.05 13.8

OMG-YBP3-75

Omega10 hp Diesel with electric/recoil start and exhaust primer 3" x 3" 700 l/min 63 m (95 psi) 3600 RPM 10 HP Single cylinder, 4 stroke air cooled, direct
injection diesel
3600 Head (m) 63 62 59 56 50 38 34 25
