Sorry - this product is no longer available

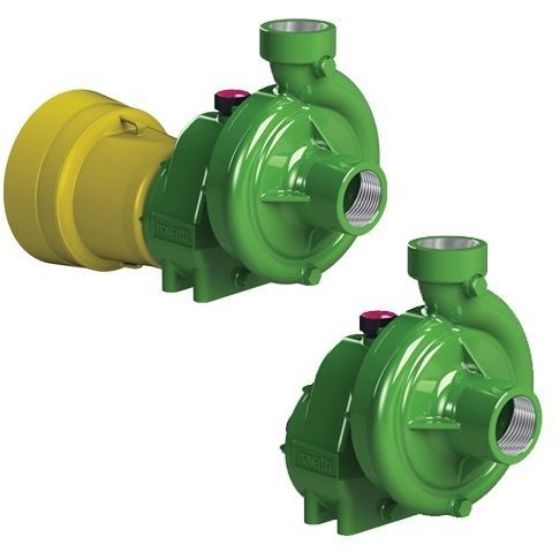

Rovatti Mini T0 Series PTO Pumps

Capacity	33 m³/h
Head	50 m
Working Temperature	-10 º C - + 140 º C
Minimum Tractor Power	10 HP
PTO RPM X Gear Ratio	1:7.77
Inlet	50 mm
Outlet	50 mm

US $963.00

Manufacturer: Rovatti Pompe

SKU: Rovatti-T-PTO

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Universal PTO pump linkage carry frame:

Universal 3 Point linkage carry frame for a variety of PTO tractor pumps size 1000 x 800 x 605 mm [+US $1,328.00]

Download sample

Qty:

+ -

Rovatti single-stage mini centrifugal high pressure pumps with overgear driven by cardan shaft of PTO or direct connection. Axial inlet and scroll outlet.

Rovatti T0-50 series of mini centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Complete with stabilising bar and attachments. Great performance pumps. These pumps are highly suited for farm irrigation, impoundements, sport field, spraying systems.

Features
■ Light and compact pump
■ Easy installation
■ Application flexibility
■ Available in self-priming execution
■ Available with trolleys and threepoint linkage

Rovatti T0-50 Series Technical Specifications

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	Gear Box Size	m³/h	6	12	18	21	24	27	30	33
					l/min	100	200	300	350	400	450	500	550
					l/s	1.6	3.3	5	5.8	6.6	7.5	8.3	9.1
T0-50 T0F-50	15	1 : 7.77	50 X 50	0	Head (m)	53.5	53.2	52.5	52	51.2	50.5	48.7	47
	10				Head (m)	46	45.5	44.5	44	43	42	41	39.8
	7.5				Head (m)	37.2	36.7	36	35.2	34.4	33.5	32.3	30.6

Rovatti-pto-pump-trolleys

Rovatti single-stage mini centrifugal high pressure pumps with overgear driven by cardan shaft of PTO or direct connection. Axial inlet and scroll outlet.

Features
■ Light and compact pump
■ Easy installation
■ Application flexibility
■ Available in self-priming execution
■ Available with trolleys and threepoint linkage

Rovatti T0-50 Series Technical Specifications

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	Gear Box Size	m³/h	6	12	18	21	24	27	30	33
					l/min	100	200	300	350	400	450	500	550
					l/s	1.6	3.3	5	5.8	6.6	7.5	8.3	9.1
T0-50 T0F-50	15	1 : 7.77	50 X 50	0	Head (m)	53.5	53.2	52.5	52	51.2	50.5	48.7	47
	10				Head (m)	46	45.5	44.5	44	43	42	41	39.8
	7.5				Head (m)	37.2	36.7	36	35.2	34.4	33.5	32.3	30.6

Rovatti-pto-pump-trolleys
