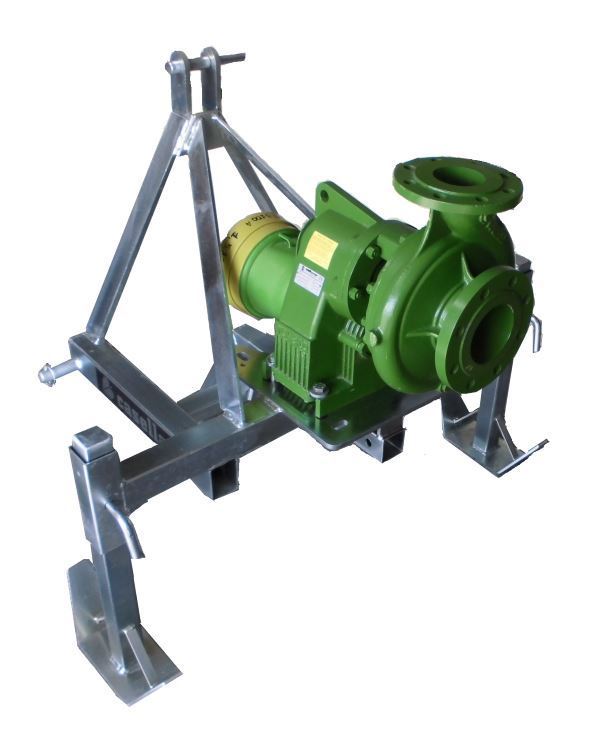

Rovatti Single Stage T2-85E PTO Pump Set

SKU: Rovatti-T2-85E
Delivery date: 2 to 3 weeks
Manufacturer: Rovatti Pompe

Best price guranteed ROVATTI PTO Pump, it can deliver 90 m3/h water flow at 81 m head!

Capacity
:
36-120 m³/h
Head
:
84-72 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
25-75 HP
PTO RPM X Gear Ratio
:
545 x 6.43
Inlet Range
:
100 mm (4")
Outlet Range
:
100 mm (4")
COMES WITH
:
Inlet/Outlet 100 mm (4") fittings, PTO Drive Shaft, 3-point linkage frame
Call for pricing

Rovatti single-stage T2-85E centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Comes with a 3 point linkage frame (galvanised), PTO drive shaft and 4" (100 mm) inlet/outlet fittings. This pump is highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 120 m3/h and heads up to 72 m.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Application flexibility
■ Available with trolleys and threepoint linkage



 Download Rovatti T Series PTO Pump Technical Spacifications



Rovatti T2-85E PTO Pump Technical Specifications



Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
Gear Box
Size
m³/h 36 42 48 54 60 75 90 105 120
l/min 600 700 800 900 1000 1250 1500 1750 2000
l/s 10 11.6 13.3 15 16.6 20.8 25 29.1 33.3

T2-85E

55 545 x 6.43 80 X 65 2 Head (m) 84.2 84.3 84.2 84.2 84 83 81 77.5 72



Rovatti T-TK Series PTO performance table

Rovatti-pto-pump-trolleys

Rovatti single-stage T2-85E centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Comes with a 3 point linkage frame (galvanised), PTO drive shaft and 4" (100 mm) inlet/outlet fittings. This pump is highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 120 m3/h and heads up to 72 m.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Application flexibility
■ Available with trolleys and threepoint linkage



 Download Rovatti T Series PTO Pump Technical Spacifications



Rovatti T2-85E PTO Pump Technical Specifications



Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
Gear Box
Size
m³/h 36 42 48 54 60 75 90 105 120
l/min 600 700 800 900 1000 1250 1500 1750 2000
l/s 10 11.6 13.3 15 16.6 20.8 25 29.1 33.3

T2-85E

55 545 x 6.43 80 X 65 2 Head (m) 84.2 84.3 84.2 84.2 84 83 81 77.5 72



Rovatti T-TK Series PTO performance table

Rovatti-pto-pump-trolleys
