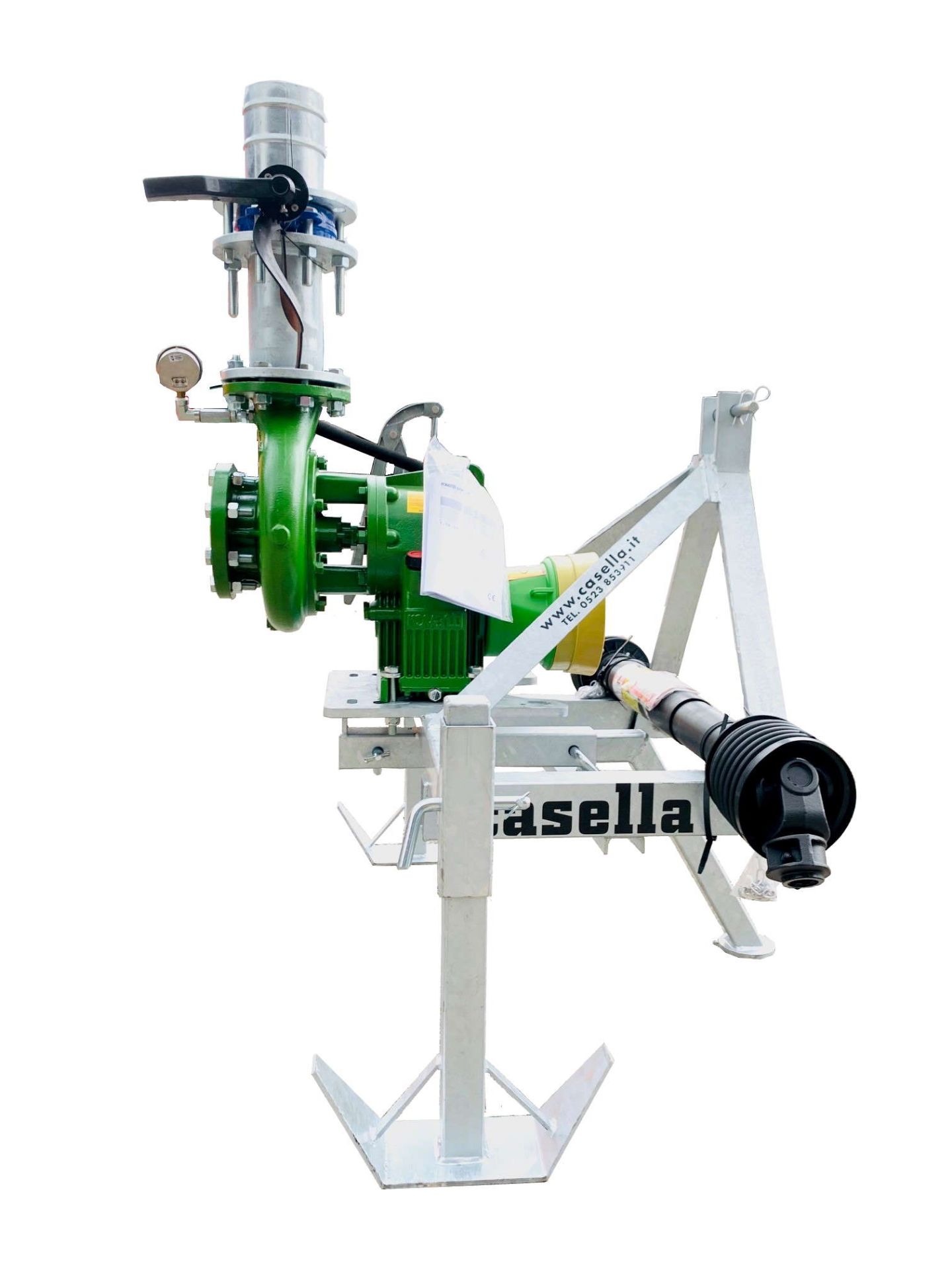

Rovatti T3-100AE PTO Pump Set

Best price guaranteed ROVATTI PTO Pump, it can deliver 120 m3/h water flow at 73 m head!

Capacity
:
75-180 m³/h
Head
:
78-57 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
70 HP
PTO RPM X Gear Ratio
:
500 x 6.38
Inlet Range
:
100 mm (4")
Outlet Range
:
100 mm (4")
COMES WITH
:
Inlet/Outlet 100 mm (4") Fittings, Pressure Gauge, Butterfly Valve, PTO Drive Shaft, Hot Dip Galvanised 3-Point Linkage Frame
Call for pricing
Manufacturer: Rovatti Pompe
SKU: Rovatti-T3-100AE
2 in stock
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Rovatti single-stage T3-100AE centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Comes with a 3-Point linkage frame (hot dip galvanised), PTO drive shaft, 4" (100 mm) inlet/outlet fittings, pressure gauge, and butterfly valve. This pump is highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 180 m3/h and heads up to 78 m.

Features
■ Robust cast iron construction

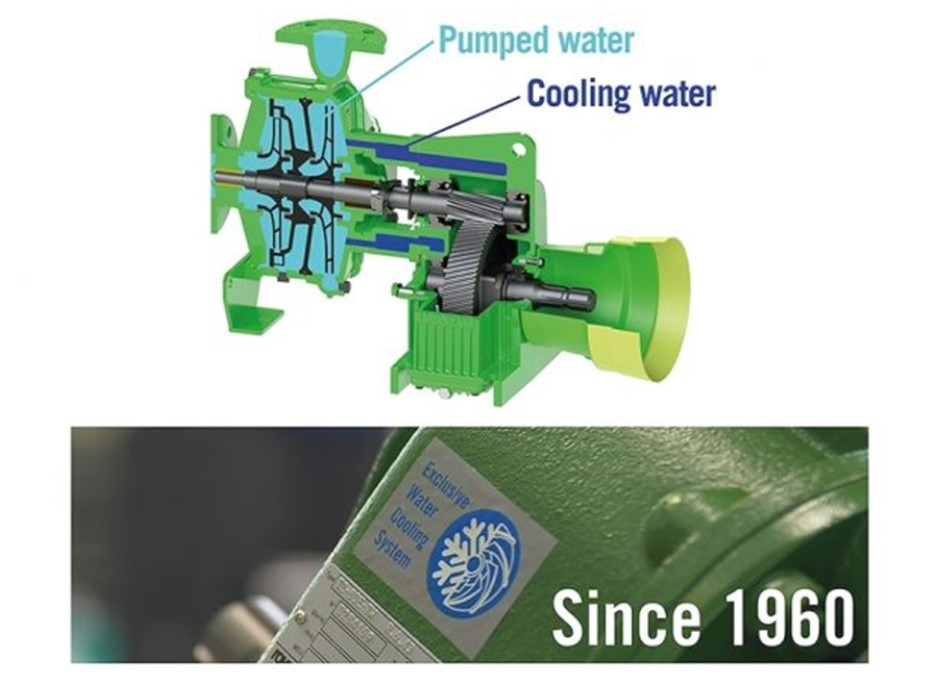

■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Application flexibility
■ Available with trolleys and threepoint linkage



 Download Rovatti T Series PTO Pump Technical Spacifications



Rovatti T3-100AE PTO Pump Technical Specifications



Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
m³/h 75 90 105 120 150 180
l/min 1250 1500 1750 2000 2500 3000
l/s 20.8 25 29.1 33.3 41.6 50

T3-100AE

70 500 x 6.38 100 X 100 Head (m) 78 77 75.5 73 66.3 57.3



Rovatti T-TK Series PTO performance table
