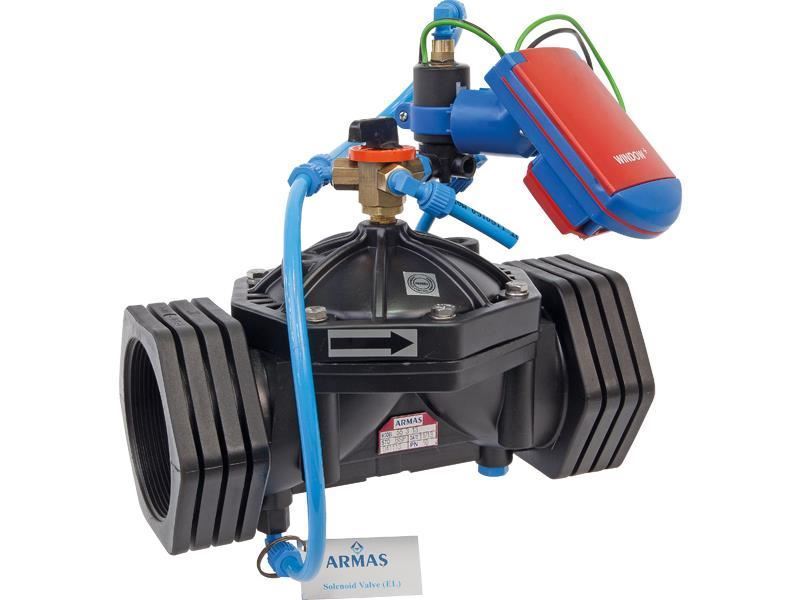

Solenoid and Control Unit Integrated Plastic Hydraulic Control Valve

Be the first to review this product

BACCARA G75 Solenoid Valve and Control Unit controlled Hydraulic control valve operated by line pressure. Easily control with stand-alone battery driven irrigation controller timer. Powered by a single 9V battery.

Easy to use

Low cost

Operation in wide pressure range (PN10)

Perfect modulation even in lower flow rates

Anti-surge closing and opening with flexible diaphragm

Glass Reinforced Poly-amide material

Made in Turkey

US $285.00

Manufacturer: Armas Valves & Filters

SKU: 500-Series-EL/C-3W

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Valve Size: *

Qty:

+ -

Armas Solenoid Valve & Controller Integrated Hydraulic Control Valve

Applications

Irrigation
Industrial
Programmed irrigation.

FEATURES

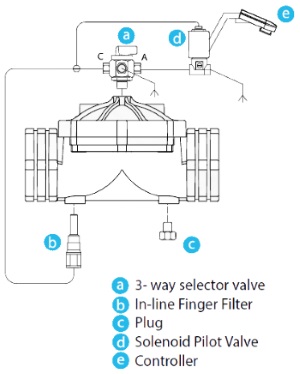

9V DC Baccara G75 Latch solenoid valve, Control Unit (1 Outlet), polyethylene plastic tubing system, nylon fittings and 3-way selector valve.
Made in Turkey

Download Baccara G75 1/8" Solenoid Valves Technical Specifications

Download Baccara G75 Irrigation Controller Catalogue

Download Baccara G75 Irrigation Controller User Manual

Download Baccara G75 Window Irrigation Controller Catalogue

ARMAS 500 Series Baccara Solenoid Controlled Valve

Armaş “Solenoid valve + Controller” model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built in solenoid pilot valve controlled remotely with electric signal at required time or required duration. Electric signal for solenoid pilot valve is ensured by means of a control device, time relay, main switch and PLC control units etc. Opening/Closing process may be realized easily thanks to manual control on solenoid pilot valve. Depending on requirements. The controller irrigates in cycles, during a window of time according to your needs.

BACCARA Single Station Window and Irrigation Controller

Stand-alone battery driven irrigation controller timer for ether 1,2,or 4 valves G75 2W NC system. The irrigation timer has 3 program options 9VDC latch coil connected. Powered by a single 9V battery. The window timer only operates a single valve and has a 24 hour 7 day week program Single Station Window. Can operate any valve equipped with 3/4″ UNEF solenoid capacity (Richdel type).
