Sorry - this product is no longer available

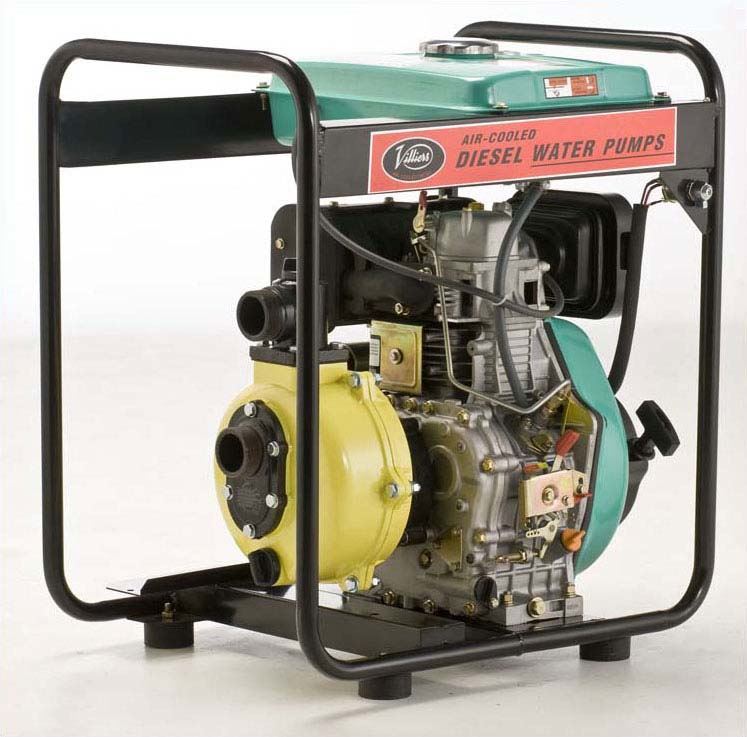

Villiers 12HP Diesel Water Pumps - High Pressure High Volume

Perfect for use in the medium range irrigation systems, fire protection, comstruction and anywhere there is a need to move water.

Max Capacity
:
500, 600 l/min
Max Head
:
50 - 70 m at 3600 RPM
Engine Power
:
Villiers 12 HP Diesel
Fuel Consumption
:
210 g/hp.h
Suction/Discharge
:
1.5"x1.5" - 2"x2" - 3"x3"
US $1,955.00
SKU: F460FDE
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Villiers 12HP Diesel Engine Driven High Pressure High Volume Water Pumps

Villiers F460FDE/200B: 2" Suction/Discharge - 600 l/min Max Capacity - 50 m Max Head

Villiers F460FDE/80RC: 3" Suction/Discharge - 600 l/min Max Capacity - 70 m Max Head

Villiers F460FDE/HPTI (Twin Impeller): 1.5" Suction/Discharge - 500 l/min Max Capacity - 90 m Max Head

Long range fuel tank, 4 hour running. Keyless ignition with electric start recoil backup.

Great for use in the construction, agricultural , hire and fire protection industry and anywhere there is a need to move water or other liquids quickly and efficiently.

The fire pump range includes both single and twin impeller models as well as a special single impeller model which produces both high pressure and high volume.

This is driven by a 12hp electric start Villiers diesel engine. Fire pumps are sold in roll frames as standard.

Also used in homes and factories in remote areas to provide water supply to fire sprinker systems.

Features

  • pressure die cast aluminium
  • pump body
  • cast iron volute diffuser
  • cast iron discharge caps
  • simply-charged, self-priming design
  • the 200B pumps have a solid one piece aluminium impeller
  • 12.5 L long range fuel tank
  • all Villiers engines have a 2 year warranty

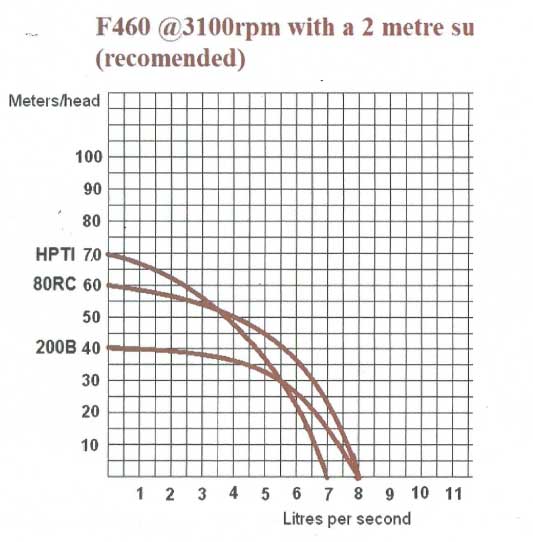

 Villiers Diesel High Pressure High Volume Water Pumps Curve

Villiers F460FDE / 80RC
Villiers F460FDE / HPTI TWIN-IMPELLER

Villiers-F460FDE-80RC-High-Volume-High-Pressure-Pump
Villiers-F460FDE-HPTI-TWIN-IMPELLER-Pump

Villiers Diesel High Pressure High Volume Pumps Technical Specifications
Pump Model Engine Power
(HP)

Inlet X Outlet

Max Capacity

Max Head

Max Speed

Max Output

Type

Fuel Consumption

Speed (RPM) m³/h 7.2 10.8 14.4 18 21.6 25.2 28.8 32.4
l/min 120 180 240 300 360 420 480 540
l/s 2 3 4 5 6 7 8 9

F460FDE/200B

Villiers 12hp Diesel with electric/recoil start 2" x 2" 600 l/min 50 m (70 psi) 3600 RPM 12 HP Single cylinder, 4 stroke air cooled, direct
injection diesel

210 g/hp.

3100 Head (m) 40 38 36 34 28 15 10
3600 Head (m) 50 48 46 44 38 25 20 10

F460FDE/80RC

Villiers 12hp Diesel with electric/recoil start 3" x 3" 600 l/min 70 m (95 psi) 3600 RPM 12 HP Single cylinder, 4 stroke air cooled, direct
injection diesel

210 g/hp.

3100 Head (m) 57 55 51 45 40 25  15
3600 Head (m) 67 65 61 55 50 35  25  10

F460FDE/HPTI

Villiers 12hp Diesel with electric/recoil start 1.5" x 1.5" 500 l/min 90 m (105 psi) 3600 RPM 12 HP Single cylinder, 4 stroke air cooled, direct
injection diesel

210 g/hp.

3100 Head (m) 63 56 48 40 25 10
3600 Head (m) 73 66 58 50 35 20  10
