Pumpman Rubber Layflat Pump Hose Assembly

Be the first to review this product

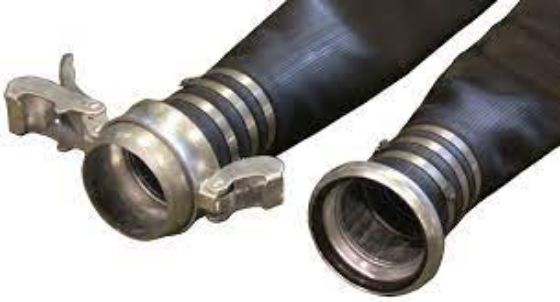

A quality rubber layflat discharge hose assembly, complete with male and female Bauer couplings with lever closure ring and Band-It preformed clamps, fitted

Inside Diameter Range

3" (76 mm) - 12" (305 mm)

Weight (kg/mtr)

0.23 -4.5 kg/mtr

Working Pressure Range

100-150 psi

US $787.00

Manufacturer: Advanced Industrial Products

SKU: Pumpman Hose Assembly

Shipping

Delivery date 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Hose Inside Diameter: *

*Indicated prices are per metre. Please select a hose size to update the price above.

3" (76 mm) - 25m Length
4" (102 mm) - 20m Length
10" (254 mm) [+US $3,044.00]
12" (305 mm) - 20m Length [+US $3,865.00]

Qty:

+ -

Pumpman Rubber Layflat Discharge Hose Assembly

Heavy duty pump discharge hose for water,slurry, etc. Abrasive resistant rubber, U.V. resistant, flexible and strong for tough
conditions, complete with male and female Bauer couplings with lever closure ring and Band-It preformed clamps, fitted.

Working Temperature: -30ºC to 70 ºC

Technical Specifications

Inside diameter mm	Inside diameter inches	Working Pressure PSI	Weight (kg/mtr)	Assembly Length Meter
76	3”	150	0.70	25 m
102	4″	150	1.02	20 m
152	6”	150	1.75	20 m
203	8″	150	2.40	20 m
253	10”	135	2.97	20 m
305	12″	100	4.50	20 m

* Please check the assembly length for each size prior ordering.

Pumpman Rubber Layflat Discharge Hose Assembly

Working Temperature: -30ºC to 70 ºC

Technical Specifications

Inside diameter mm	Inside diameter inches	Working Pressure PSI	Weight (kg/mtr)	Assembly Length Meter
76	3”	150	0.70	25 m
102	4″	150	1.02	20 m
152	6”	150	1.75	20 m
203	8″	150	2.40	20 m
253	10”	135	2.97	20 m
305	12″	100	4.50	20 m

* Please check the assembly length for each size prior ordering.
