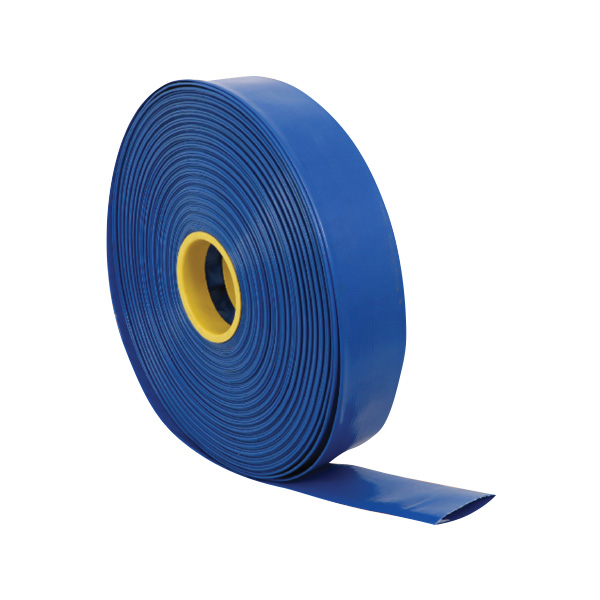

AIP Sunny Blue PVC Layflat Hoses

Sunny PVC Layflat Hose Blue

Medium duty PVC layflat hose suitable for water discharge, drip and trickle irrigation.

Primary Uses:

Water transfer, dewatering
Irrigation sprinklers
Sump/trash pumps
Medium Duty Irrigation/Agricultural use (not suitable for travelling irrigators)

Features:

The hose has an exceptionally high hoop strength, at the same time allowing minimum longitudinal movement.
It is a lightweight, water- proof flexible hose.
It is resistant to weather, abrasion, process fluids and is rugged enough to take repeated daily rough handling.
It does not corrode and is available in long lengths.
It assumes a conventional round appearance under pressure and returns to its flat shape after use, for easy handling and storage.
It does not need drying and can be rolled immediately after use.

The large diameter Sunnyhose, 250 ~ 400mm, is ideal for use as drainage hose in emergency/flood/disaster situations when large quantities of water must be moved quickly.

Technical Specifications

Inside diameter mm	Wall Thickness mm	Working Pressure at 20°C MPA	Working Pressure (PSI)	Weight (kg/m)
25	1.50	0.70	100	0.17
32	1.45	0.70	100	0.20
40	1.25	0.50	73	0.21
50	1.30	0.45	65	0.27
65	1.50	0.40	58	0.38
75	1.70	0.35	58	0.53
100	1.75	0.30	58	0.71
125	1.85	0.30	44	0.94
150	1.95	0.30	44	1.18
200	2.20	0.30	44	1.79
250	2.65	0.25	36	2.65
300	2.55	0.20	30	2.91
350	2.70	0.20	30	3.65
400	2.70	0.20	30	4.29

Sunny PVC Layflat Hose Blue

Medium duty PVC layflat hose suitable for water discharge, drip and trickle irrigation.

Primary Uses:

Water transfer, dewatering
Irrigation sprinklers
Sump/trash pumps
Medium Duty Irrigation/Agricultural use (not suitable for travelling irrigators)

Features:

The hose has an exceptionally high hoop strength, at the same time allowing minimum longitudinal movement.
It is a lightweight, water- proof flexible hose.
It is resistant to weather, abrasion, process fluids and is rugged enough to take repeated daily rough handling.
It does not corrode and is available in long lengths.
It assumes a conventional round appearance under pressure and returns to its flat shape after use, for easy handling and storage.
It does not need drying and can be rolled immediately after use.

The large diameter Sunnyhose, 250 ~ 400mm, is ideal for use as drainage hose in emergency/flood/disaster situations when large quantities of water must be moved quickly.

Technical Specifications

Inside diameter mm	Wall Thickness mm	Working Pressure at 20°C MPA	Working Pressure (PSI)	Weight (kg/m)
25	1.50	0.70	100	0.17
32	1.45	0.70	100	0.20
40	1.25	0.50	73	0.21
50	1.30	0.45	65	0.27
65	1.50	0.40	58	0.38
75	1.70	0.35	58	0.53
100	1.75	0.30	58	0.71
125	1.85	0.30	44	0.94
150	1.95	0.30	44	1.18
200	2.20	0.30	44	1.79
250	2.65	0.25	36	2.65
300	2.55	0.20	30	2.91
350	2.70	0.20	30	3.65
400	2.70	0.20	30	4.29

Sunny Blue Layflat Hose

Sunny PVC layflat hose is designed for temporary water supply or drainage, for drip irrigation and sprinkler irrigation at farms..
