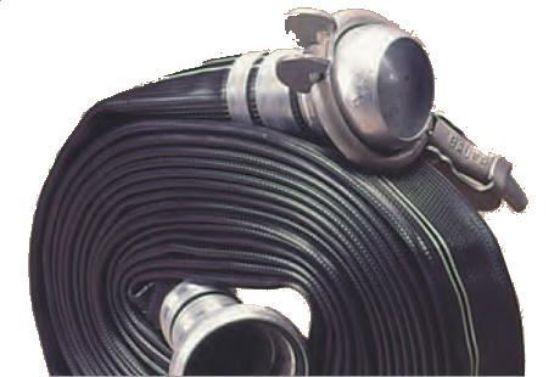

Angus Dragmaster Agricultural Layflat Hoses

ANGUS travelling irrigator drag hose constructed from a circular woven synthetic jacket encapsulated in rubber, suitable for all types of water operations.


Inside Diameter Range
:
2" (51 mm) - 6" (152 mm)

Wall Thickness
:
2.3 - 4.1 mm

Weight per Meter
:
0.46 - 2.3 kg

Working Pressure Range
:
15 - 18 Bar



Made in England
Call for pricing
Manufacturer: Angus Flexible Pipelines
SKU: Dragmaster
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

This product has a minimum quantity of 200
+ -

Dragmaster Agricultural Layflat Hose

  • Agricultural Slurry Disposal
  • Industrial Sludge Disposal to Land
  • Dirty Water Distribution Systems
  • Non-Potable Water Transfer
  • Irrigation Systems

A high performance flexible layflat hose for all types of agricultural use including irrigation, sludge, slurry, and dirty water disposal operations.

Easy to Store & Transport
Lightweight, compact and excellent coilability for economical storage. More flexible than current plastic hoses in the market for smoother coiling and easier handling.

Fast Deployment & Retrieval
Long continuous lengths can be quickly deployed and retrieved using light duty reels.

Low Operating Costs
Unique textile construction for minimum pressure loss and maximum hydraulic efficiency. Superior kink resistance at low pressure maintains maximum hydraulic efficiency. Suitable for continuous operation at high pressure.

Long Service Life
Designed for long service life on a wide variety of ground conditions with minimal maintenance.

Dragmaster Features:

  • Tough and durable rubber cover with exceptional resistance to abrasion and cutting. Advanced black rubber compound for maximum resistance to agricultural chemicals, ozone, UV, and weathering. Resistant to microbiological attack from untreated and treated sludges and slurries.
  • Features unique “through-the-weave” one piece construction comprising a circular woven high tenacity yarn reinforcement totally encapsulated in a tough vulcanised rubber cover and lining. The integral woven construction imparts extremely high tensile strength to withstand all practical loading conditions.
  • Manufactured in compliance with BS EN ISO 9001:2000 quality management systems. Raw materials, components, and finished products are rigorously tested and inspected to ensure excellent product reliability.
  • Meets ASAE 394.
  • Operating temperature: -20 to +70 °C

It is mainly used for:

  • Travelling irrigators and boom type irrigation equipment
  • Drag hose for farm use
  • Dewatering in mines
  • High pressure wash–down hose
  • Industrial hose for use with certain oils & chemicals
  • Heavy duty farm hose
  • Temporary bypass hose
  • Air hose

Technical Specifications

Inside diameter
mm
Inside diameter
inches
Working Pressure
Bar
Burst Pressure
Bar
Burst PressurePSI Tensile Load Tonnes Avg. Single Wall Thickness(mm) Weight per Metre(kg)
51 2” 18 36 525 2.8 2.3 0.46
64 2½ 18 36 525 3.1 2.3 0.53
76 3″ 18 36 525 4.5 3.1 0.97
89 3½” 17.5 35 510 5.4 3.4 1.14
102 4″ 17.5 35 510 7.8 3.7 1.44
114 4½ 15 30 435 9.9 3.8 1.66
127 5” 15 30 435 11.3 4.1 1.98
152 6″ 15 30 435 16.5 4.1 2.3

Dragmaster Agricultural Layflat Hose

  • Agricultural Slurry Disposal
  • Industrial Sludge Disposal to Land
  • Dirty Water Distribution Systems
  • Non-Potable Water Transfer
  • Irrigation Systems

A high performance flexible layflat hose for all types of agricultural use including irrigation, sludge, slurry, and dirty water disposal operations.

Easy to Store & Transport
Lightweight, compact and excellent coilability for economical storage. More flexible than current plastic hoses in the market for smoother coiling and easier handling.

Fast Deployment & Retrieval
Long continuous lengths can be quickly deployed and retrieved using light duty reels.

Low Operating Costs
Unique textile construction for minimum pressure loss and maximum hydraulic efficiency. Superior kink resistance at low pressure maintains maximum hydraulic efficiency. Suitable for continuous operation at high pressure.

Long Service Life
Designed for long service life on a wide variety of ground conditions with minimal maintenance.

Dragmaster Features:

  • Tough and durable rubber cover with exceptional resistance to abrasion and cutting. Advanced black rubber compound for maximum resistance to agricultural chemicals, ozone, UV, and weathering. Resistant to microbiological attack from untreated and treated sludges and slurries.
  • Features unique “through-the-weave” one piece construction comprising a circular woven high tenacity yarn reinforcement totally encapsulated in a tough vulcanised rubber cover and lining. The integral woven construction imparts extremely high tensile strength to withstand all practical loading conditions.
  • Manufactured in compliance with BS EN ISO 9001:2000 quality management systems. Raw materials, components, and finished products are rigorously tested and inspected to ensure excellent product reliability.
  • Meets ASAE 394.
  • Operating temperature: -20 to +70 °C

It is mainly used for:

  • Travelling irrigators and boom type irrigation equipment
  • Drag hose for farm use
  • Dewatering in mines
  • High pressure wash–down hose
  • Industrial hose for use with certain oils & chemicals
  • Heavy duty farm hose
  • Temporary bypass hose
  • Air hose

Technical Specifications

Inside diameter
mm
Inside diameter
inches
Working Pressure
Bar
Burst Pressure
Bar
Burst PressurePSI Tensile Load Tonnes Avg. Single Wall Thickness(mm) Weight per Metre(kg)
51 2” 18 36 525 2.8 2.3 0.46
64 2½ 18 36 525 3.1 2.3 0.53
76 3″ 18 36 525 4.5 3.1 0.97
89 3½” 17.5 35 510 5.4 3.4 1.14
102 4″ 17.5 35 510 7.8 3.7 1.44
114 4½ 15 30 435 9.9 3.8 1.66
127 5” 15 30 435 11.3 4.1 1.98
152 6″ 15 30 435 16.5 4.1 2.3
