Aytok PE Manual Plastic Screen Filters

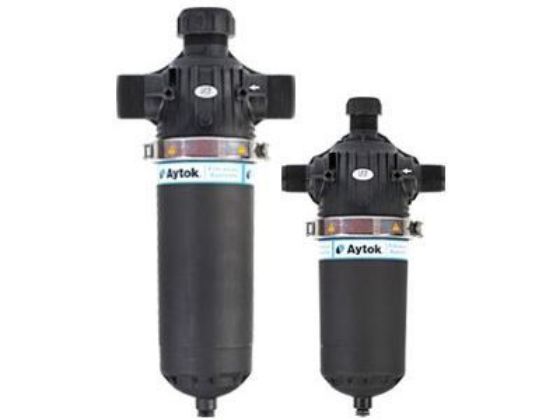

PSE Manual Super Plastic Screen Filter

Be the first to review this product

Body Material	:	Super Plastic
Cartridge Material	:	PP - PRGF
Maximum Working Pressure	:	8 bar
Maximum Working Temperature	:	60°
The Filtration Sensitivity	:	20-50-100-125 micron
Cartridge	:	Screen
Made in	:	Turkey

US $129.00

Manufacturer: Aytok Filters

SKU: PSE2-3

Shipping

Delivery date 3-5 business days

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Plastic Filter Size: *

PLEASE SELECT A SIZE

2" (50 mm)
3" (80 mm) [+US $32.00]

Qty:

+ -

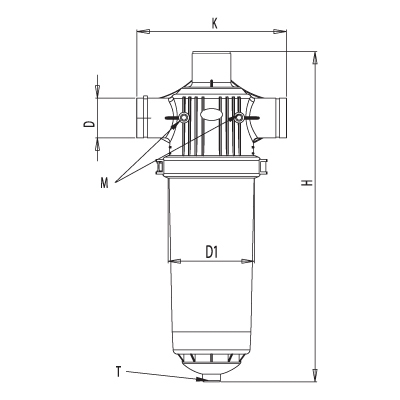

Technical Specifications

		mm	inch	mm	mm	mm	inch	inch	m³/h	cm²	kg

	Product Code	D		D1	H	K	M	T
	Product Code	D		D1	H	K	M	T	Flow Rate	Filter Surface	Weight
	PE 2	50	2"	190	600	340	1/4”	3/4”	30	726	5.676
	PSE 2	50	2"	190	750	340	1/4”	3/4”	35	968	6.36
	PE 3	76	3"	190	600	340	1/4”	3/4”	40	726	5.8
	PSE 3	76	3"	190	750	340	1/4”	3/4”	45	968	6.55

PE Manual plastic screen filter curve

Technical Specifications

		mm	inch	mm	mm	mm	inch	inch	m³/h	cm²	kg

	Product Code	D		D1	H	K	M	T
	Product Code	D		D1	H	K	M	T	Flow Rate	Filter Surface	Weight
	PE 2	50	2"	190	600	340	1/4”	3/4”	30	726	5.676
	PSE 2	50	2"	190	750	340	1/4”	3/4”	35	968	6.36
	PE 3	76	3"	190	600	340	1/4”	3/4”	40	726	5.8
	PSE 3	76	3"	190	750	340	1/4”	3/4”	45	968	6.55

PE Manual plastic screen filter curve
