Powaflex Vacman PVC Suction Hose

An extra flexible, lightweight, high abrasive suction hose.


Inside Diameter Range
:
1 1/2" (38 mm) - 8" (203 mm)

Bending Radius (mm)
:
150 - 480mm

Working Pressure Range
:
45 psi
196.642,00 ₫
SKU: Powaflex Vacman PVC Suction Hose
Delivery date 3-5 business days (PLEASE CONTACT US FOR THE SHIPPING COST)
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

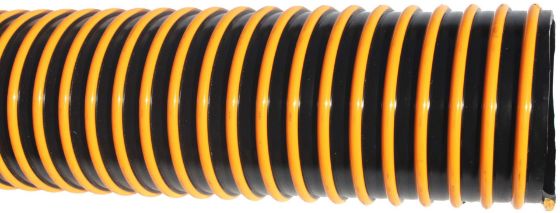

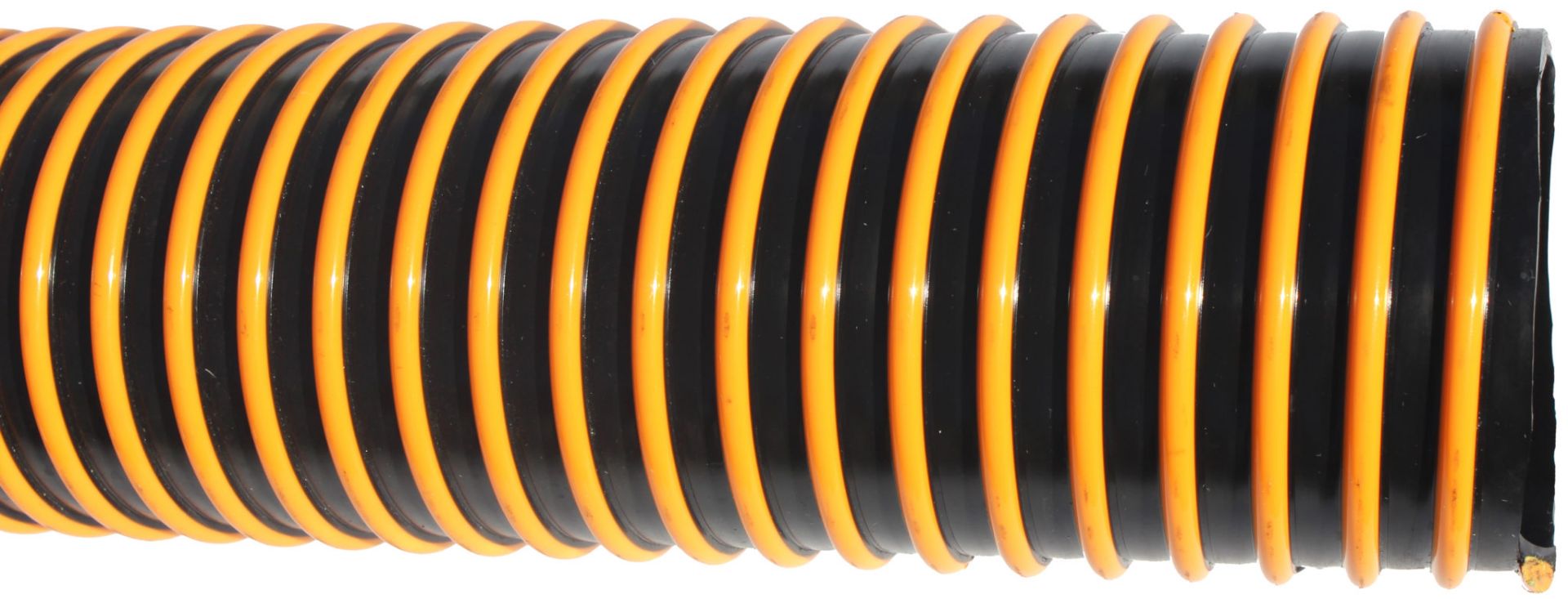

POWAFLEX VACMAN PVC SUCTION HOSE

Powaflex Vacman Suction hose is an extra flexible, lightweight, high abrasive suction hose. Smooth bore, PVC/Nitrile blend, black wall and orange spiral. It is suitable for water slurries and abrasive materials applications.

Working Temperature: -10ºC to 60 ºC

Technical Specifications

Inside diameter
mm
Inside diameter
inches
Working Pressure PSI (20ºC) VAC rating mm/hg 20ºC Bending radius mm Weight gm/mtr Standard Coil
38 45 700 150 0.70 30 m
51 2” 45 700 160 0.83 30 m
63 2 1/2″ 45 700 180 1.35 30 m
76 3” 45 650 210 1.60 30 m
102 4″ 45 600 270 2.80 30 m
127 5” 45 600 350 4.40 30 m
152 6″ 45 500 420 5.30 30 m
203 8” 45 350 480 7.50 30 m
