Powaflex Grey PVC Suction Hoses

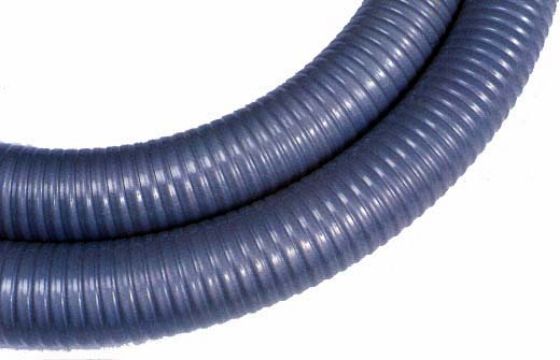

POWAFLEX GREY GENERAL PURPOSE PVC SUCTION HOSE

General purpose heavy duty PVC suction/delivery hose, grey with white spiral. Flexible and strong for suction and delivery of water slurries, waste, chemicals, agricultural, construction and industrial uses. Lightly corrugated on the outside, it is reinforced with a continuous high impact PVC helix. Resistant to crushing and abrasion.

High impact PVC helix reinforcement
Resistant to crushing and abrasion
UV Stabilised & Weather resistant
Smooth bore
Excellent flow characteristics
Suitable for liquid, powder & granular materials

Working Temperature: -10ºC to 60 ºC

Technical Specifications

Inside diameter mm	Inside diameter inches	Outside diameter mm	Working Pressure PSI	VAC rating mm/hg 20ºC	Bending radius mm	Standard Coil
25	1"	32.4	90	900	125	30 m
32	1 1/4”	40.4	90	900	160	30 m
38	1½”	46.4	75	900	234	30 m
45	2”	52.0	75	900	239	30 m
50	2 1/2″	59.0	75	900	243	30 m
63	3”	73.0	65	800	292	30 m
76	4″	87.0	65	800	342	30 m
102	6”	114.0	45	800	450	30 m
125	8″	140.0	45	800	575	30 m
152	10”	160.0	50	800	810	30 m
