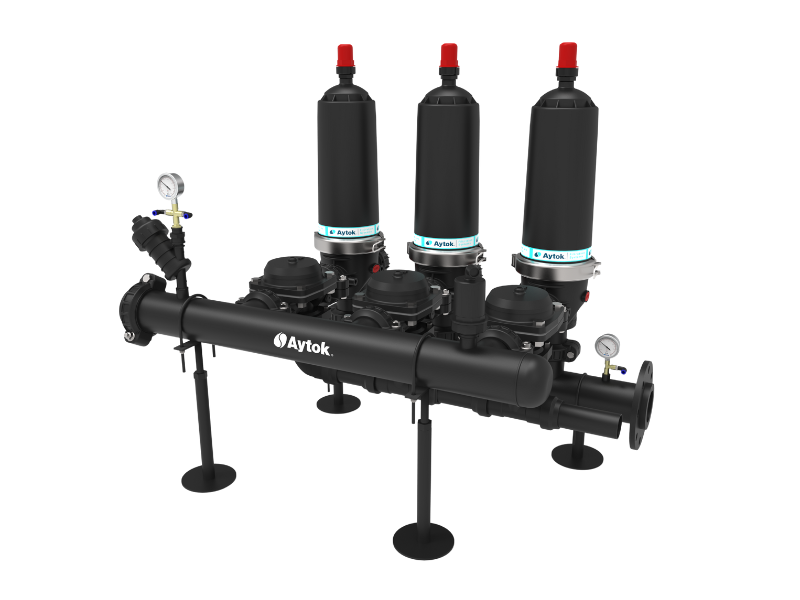

Aytok Plastic Automatic Disc Filter System

Be the first to review this product

Plastic automatic filter system with steel manifold.

Body Material

:

PA6GFR30

Disc Material

:

PP

Maximum Working Pressure

:

8 Bar (116 PSI)

Minimum Working Pressure

:

2 Bar (29 PSI)

Maximum Working Temperature

:

60 °C (140 °F)

Backwash Operation Criteria

:

Time interval or Pressure Differential

Backwash Controlling Unit

:

Electronic (AC/DC) Control

Filtration Degree

:

20-50-100-130 micron (µ)

Painting

:

Epoxy Polyester, Electrostatic Powder Coating

Made in

:

Turkey

Call for pricing

Manufacturer: Aytok Filters

SKU: A222-323-433-443

Shipping

Delivery date 2 to 3 weeks

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Filter Inlet/Outlet Size: *

2"2x2" Plastic Disc Filter System
3"2x3" Plastic Disc Filter System
4"3x3" Plastic Disc Filter System
4"4x3" Plastic Disc Filter System

Qty:

+ -

Aytok Automatic Plastic Disc Filter System

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 8 Bar (116 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Time and/or Pressure Differential
Back Flush Controlling Unit : Electronic (AC/DC) Control
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code	SYSTEM	CAPACITY (m³/h)
A222	2"2X2"PLASTIC DISC FILTER SYSTEM	10 - 30
A323	3"2X3"PLASTIC DISC FILTER SYSTEM	30 - 50
A433	4"3X3"PLASTIC DISC FILTER SYSTEM	50 - 70
A443	4"4X3"PLASTIC DISC FILTER SYSTEM	70 - 100

Aytok filtration system

Aytok Automatic Plastic Disc Filter System

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 8 Bar (116 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Time and/or Pressure Differential
Back Flush Controlling Unit : Electronic (AC/DC) Control
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code	SYSTEM	CAPACITY (m³/h)
A222	2"2X2"PLASTIC DISC FILTER SYSTEM	10 - 30
A323	3"2X3"PLASTIC DISC FILTER SYSTEM	30 - 50
A433	4"3X3"PLASTIC DISC FILTER SYSTEM	50 - 70
A443	4"4X3"PLASTIC DISC FILTER SYSTEM	70 - 100

Aytok filtration system
