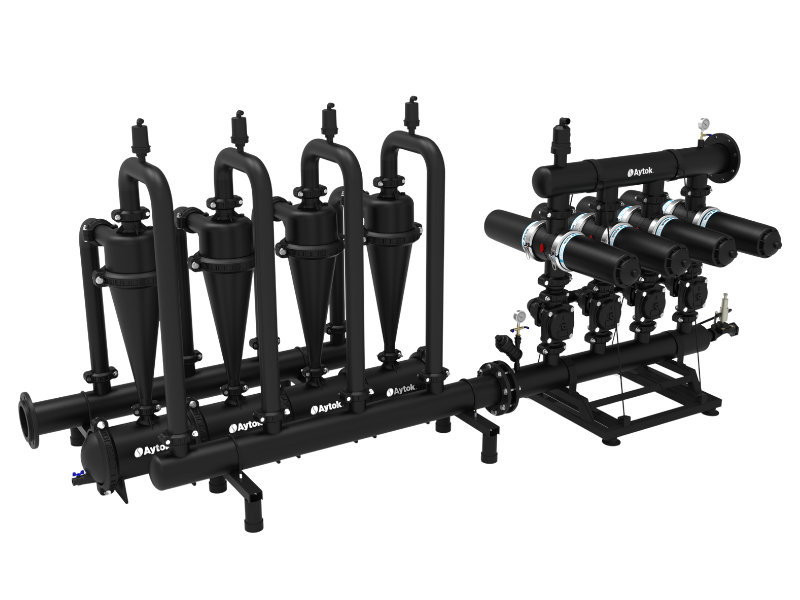

Aytok Plastic Automatic Filter Systems With Hydrocyclone

Plastic Automatic Filter Systems With Hydrocyclone


Body Material
:
PA6GFR30

Disc Material
:
PP

Maximum Working Pressure
:
6 Bar (87 PSI)

Minimum Working Pressure
:
2 Bar (29 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-50-100-130 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: 3xP2030+A534
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Plastic Automatic Filter Systems With Hydrocyclone

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 6 Bar (87 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*



Availability: 8-10 weeks



Code System CAPACITY (m³/h)
3xP2030+A534 3x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 5"3X3"PLS.HYDROCYCLONE 100- 140
4xP2030+A644 4x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 6"4X3"PLS.HYDROCYCLONE 140 - 200
5xP2030+A836 3X6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"5X3"PLS.HYDROCYCLONE 200 - 280
6xP2030+A846 4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"6X3"PLS.HYDROCYCLONE 280 - 330
7xP2030+A1046 4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"7X3"PLS.HYDROCYCLONE 330 - 380
9xP2030+A1056 5x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"9X3"PLS.HYDROCYCLONE 380 - 480
10xP2030+A1066 6x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"10X3"PLS.HYDROCYCLONE 480 - 570
12xP2030+A1276 7x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 12"12X3"PLS.HYDROCYCLONE 570 -670



Aytok filtration system

Aytok Plastic Automatic Filter Systems With Hydrocyclone

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 6 Bar (87 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*



Availability: 8-10 weeks



Code System CAPACITY (m³/h)
3xP2030+A534 3x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 5"3X3"PLS.HYDROCYCLONE 100- 140
4xP2030+A644 4x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 6"4X3"PLS.HYDROCYCLONE 140 - 200
5xP2030+A836 3X6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"5X3"PLS.HYDROCYCLONE 200 - 280
6xP2030+A846 4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"6X3"PLS.HYDROCYCLONE 280 - 330
7xP2030+A1046 4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"7X3"PLS.HYDROCYCLONE 330 - 380
9xP2030+A1056 5x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"9X3"PLS.HYDROCYCLONE 380 - 480
10xP2030+A1066 6x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"10X3"PLS.HYDROCYCLONE 480 - 570
12xP2030+A1276 7x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 12"12X3"PLS.HYDROCYCLONE 570 -670



Aytok filtration system
