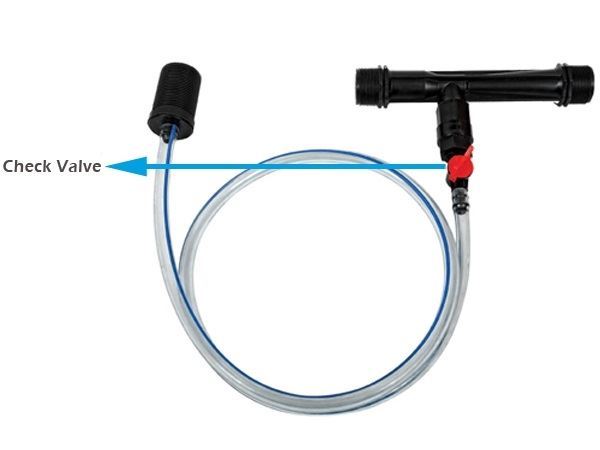

Plastic Ventury

SKU: Ventury
Delivery date: 3-5 business days
Manufacturer: Aytok Filters
Body Material : Moblen
Maximum Working Pressure : 4 bar
Maximum Working Temperature : 60°
US $18.00
*

PLEASE SELECT A SIZE

Technical Specifications



Aytok Plastic Ventury

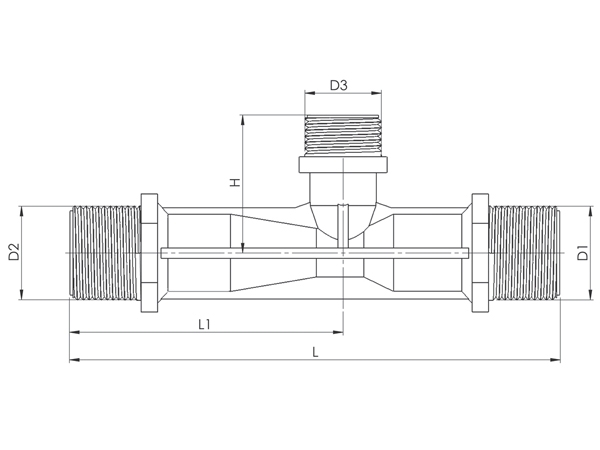

Product Code D1 D2 D3 L L1 H
Weight
 mminchinchinchmmmmmmkg
4022-1 20 3/4" 3/4" 1/2" 169 95 48 0.25
4022-2 25 1" 1" 3/4" 166.5 92.5 48 0.27
4022-3 38 1 1/2" 1 1/2" 3/4" 280 167 50 0.5
4022-4 50 2" 2" 1" 301 180 60 0.7



Injector Performance Table



P in
(bar)
P out
(bar)
3/4"
1"

1 1/2"
2"

Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
0.5
0
9
400
41
480
54
655
146
1000
0.75
0
11
440
47
500
70
900
174
1075
1
0
13
420
50
514
81
1029
204
1200
0.25
13
420
50
514
73
1029
202
1200
0.5
13
360
47
480
73
800
200
1040
1.5
0
15
400
57
514
94
1029
238
1200
0.5
15
400
57
514
94
1029
236
1075
0.75
15
300
53
480
90
900
242
1075
1
15
103
53
340
85
655
213
889
2
0
18
380
64
514
105
1029
268
1200
0.5
18
380
64
514
105
1029
268
1200
0.75
18
380
64
514
105
1029
268
1200
1
18
200
64
514
105
1029
268
1040
1.25
18
100
61
400
105
800
255
1000
1.5


60
120

232
238

2.5
0
20
360
70
500
116
1029
285
1200
0.5
20
360
70
500
116
1029
285
1200
0.75
20
360
70
500
116
1029
285
1200
1
20
360
70
500
116
1029
285
1200
1.25
20
360
69
480
116
1029
281
1200
1.5
20
200
69
480
112
900
281
1040
1.75


66
343
109
800
272
527
2


65
120




3
0
21
330
75
500
126
1029
319
1200
1
21
330
75
500
126
1029
315
1200
1.25
21
330
75
450
126
1029
315
1200
1.5
21
330
75
450
126
1029
315
1125
1.75
21
330
75
450
125
800
306
1125
2
21
200
75
400
119
655
302
1000
2.25


73
200
117
277
293
889
2.5







527
3,5
0
22
300
81
480
135
1029
344
1200
1
22
300
81
480
135
1029
344
1200
1.5
22
300
81
480
135
1029
344
1200
1.75
22
300
81
480
135
1029
344
1200
2
22
300
81
480
135
1029
340
1200
2.25
22
240
79
400
130
800
332
1125
2.5
22
100
79
340
128
655
319
889
2.75


78
200
125



4
0
24
280
85
480
143
1029
366
1200
1
24
280
85
480
143
1029
366
1200
2
24
280
85
480
143
1029
357
1200
2.25
24
280
85
480
141
1029
357
1200
2.5
24
240
85
480
140
1029
357
1200
2.75
24
180
85
400
138
655
349
1125
3
24
100
83
300
135
277
340
527
3.25


81
120




Technical Specifications



Aytok Plastic Ventury
Product Code D1 D2 D3 L L1 H
Weight
 mminchinchinchmmmmmmkg
4022-1 20 3/4" 3/4" 1/2" 169 95 48 0.25
4022-2 25 1" 1" 3/4" 166.5 92.5 48 0.27
4022-3 38 1 1/2" 1 1/2" 3/4" 280 167 50 0.5
4022-4 50 2" 2" 1" 301 180 60 0.7



Injector Performance Table



P in
(bar)
P out
(bar)
3/4"
1"

1 1/2"
2"

Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
0.5
0
9
400
41
480
54
655
146
1000
0.75
0
11
440
47
500
70
900
174
1075
1
0
13
420
50
514
81
1029
204
1200
0.25
13
420
50
514
73
1029
202
1200
0.5
13
360
47
480
73
800
200
1040
1.5
0
15
400
57
514
94
1029
238
1200
0.5
15
400
57
514
94
1029
236
1075
0.75
15
300
53
480
90
900
242
1075
1
15
103
53
340
85
655
213
889
2
0
18
380
64
514
105
1029
268
1200
0.5
18
380
64
514
105
1029
268
1200
0.75
18
380
64
514
105
1029
268
1200
1
18
200
64
514
105
1029
268
1040
1.25
18
100
61
400
105
800
255
1000
1.5


60
120

232
238

2.5
0
20
360
70
500
116
1029
285
1200
0.5
20
360
70
500
116
1029
285
1200
0.75
20
360
70
500
116
1029
285
1200
1
20
360
70
500
116
1029
285
1200
1.25
20
360
69
480
116
1029
281
1200
1.5
20
200
69
480
112
900
281
1040
1.75


66
343
109
800
272
527
2


65
120




3
0
21
330
75
500
126
1029
319
1200
1
21
330
75
500
126
1029
315
1200
1.25
21
330
75
450
126
1029
315
1200
1.5
21
330
75
450
126
1029
315
1125
1.75
21
330
75
450
125
800
306
1125
2
21
200
75
400
119
655
302
1000
2.25


73
200
117
277
293
889
2.5







527
3,5
0
22
300
81
480
135
1029
344
1200
1
22
300
81
480
135
1029
344
1200
1.5
22
300
81
480
135
1029
344
1200
1.75
22
300
81
480
135
1029
344
1200
2
22
300
81
480
135
1029
340
1200
2.25
22
240
79
400
130
800
332
1125
2.5
22
100
79
340
128
655
319
889
2.75


78
200
125



4
0
24
280
85
480
143
1029
366
1200
1
24
280
85
480
143
1029
366
1200
2
24
280
85
480
143
1029
357
1200
2.25
24
280
85
480
141
1029
357
1200
2.5
24
240
85
480
140
1029
357
1200
2.75
24
180
85
400
138
655
349
1125
3
24
100
83
300
135
277
340
527
3.25


81
120




Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

Obstruction of sprinklers and drippers is one of most significant problems encountered in irrigation systems. Most common reason of the obstruction is about minerals, organic and inorganic materials found in the water resource. Process of filtering water in the irrigation system is referred as filtration. Filtration is the best protection method against avoiding entrance/obstruction of dripper, sprinkler, hydrant and other similar equipments used in the irrigation system by sediments. Because, process of finding the obstructed dripper, to clean or replace the dripper is very costly and laborious. Therefore, filtration is most significant control unit of an irrigation system.



 Download General Product Catalogue

 Download General Filtration Systems Catalogue



Filter Selection Table

Water Source Type of Filter to be Used
Network Water Screen Filter
Hydrocyclone (Sand Separators)
Disc Filter
Well Water Disc Filter
Hydrocyclone (Sand Separators)
Screen Filter
River or Stream Water Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Screen Filter System
Gravel Filter and Hydrocyclone System
Lake or Pool Water Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Screen Filter System
Gravel Filter and Hydrocyclone System
Spring or Artesian Well Water Screen Filter
Hydrocyclone(Sand Separators)
Disc Filter
Water Supply Containing Organic Material Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Hydrocyclone System
Water Supply Containing Sand Screen Filter
Hydrocyclone (Sand Separators)
Disc Filter



Mesh and disc numbers based on particulate matter dimension classification

Particle Class Particle Size (mm) Screen-Disc Number (mesh) Screen-Disc Number (micron)
Very Rough Sand 1.0 – 2.0 10 – 18 1500 – 850
Rough Sand 0.50 – 1.0 18 – 35 850 – 420
Intermediary Sand 0.25 – 0.50 35 – 60 420 – 250
Fine Sand 0.10 – 0.25 60 – 160 250 – 100
Very Fine Sand 0.05 – 0.10 160 – 270 100 – 50
Silt 0.002 – 0.05 270 – 400 50 – 30
Clay < 0.002 > 400 > 30



Filtration Degree Conversion Table

Micron 25 30 40 50 80 100 130 150 200 400 800 1500 3000
mm 0.025 0.03 0.04 0.05 0.08 0.1 0.13 0.15 0.2 0.4 0.8 1.5 3.0
Mesh 650 550 400 300 200 150 120 100 80 40 20 10 5
*
*
*
