1/8" BSP
Function
:
3 Way NO
Valve Operation
:
Direct Operated
Body Material
:
Plastic
Seal
:
EPDM
Pressure Range
:
please refer to technical info
Media
:
Air, water, oil
£96.00
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

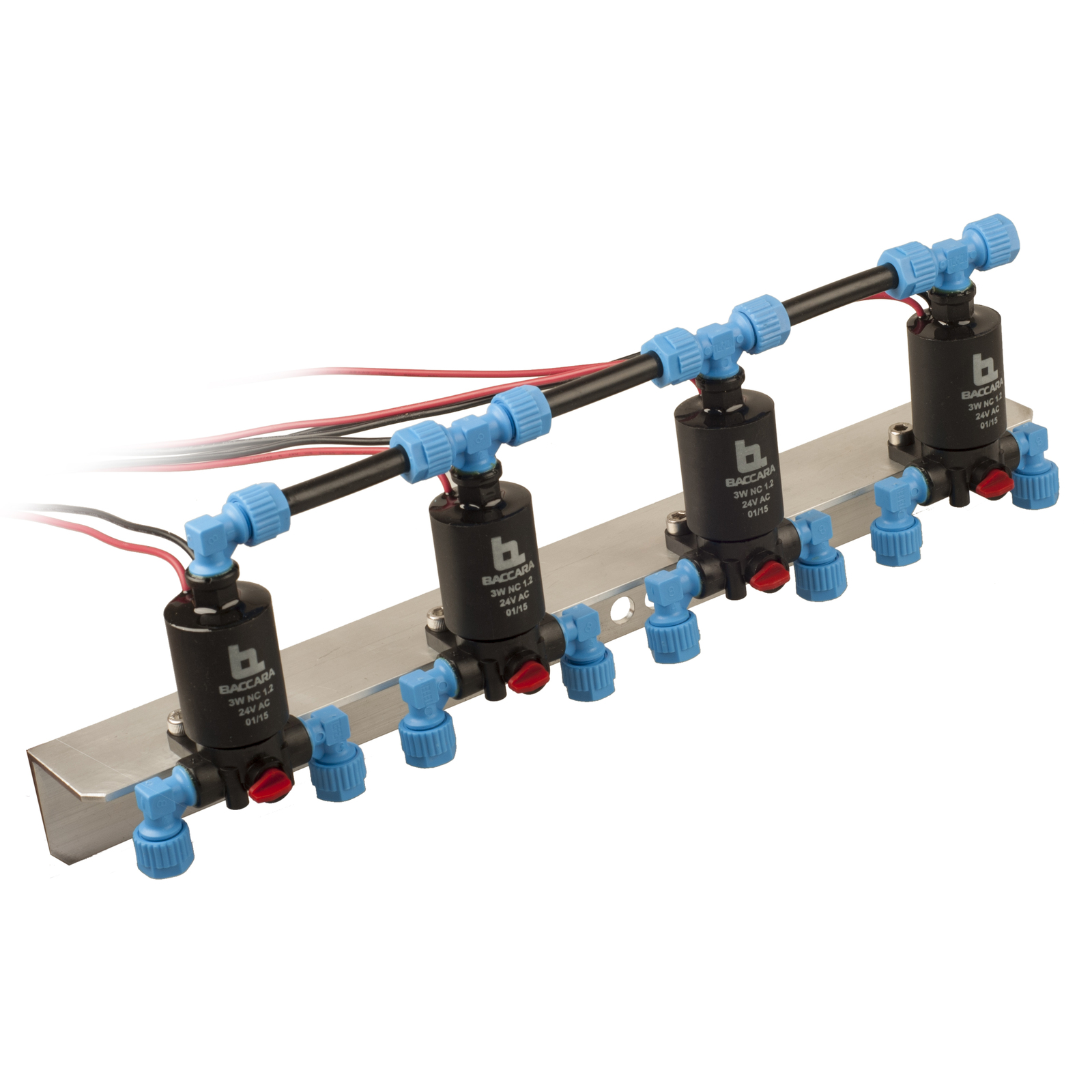

Manifold with 2, 4 or 6 x G75-A Plastic 1/8" BSP 3 Way NO 24V AC Orifice: 1.6mm with Manual Override

Technical Data

Function 3 Way NO
Ports size 1/8"
Orifice size See table
Pressure range See table
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Reinforced Nylon
Main Valve:
Brass or Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM
Coil voltage • Voltage and power consumption - see table
Standard protection class IP66

* Available with brass adaptor upon request

Max. Pressure (bar) Table

Function Orifice (mm) AC DC DC
Latch
3W NO 1 0 16 16 16
1 2 12 12 12
1 6 10 10 10

Voltage and Current Table

Solenoid Voltage Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%
03 019
2W 60 Hz 02 014
3W 50/60 Hz * 0125 0125
DC 45W

* Except 24V AC without Diode

Voltage and Power Consumption

  AC (W) DC (W)
50 Hz
V 2 45
24

g75-m-manifold-dimension

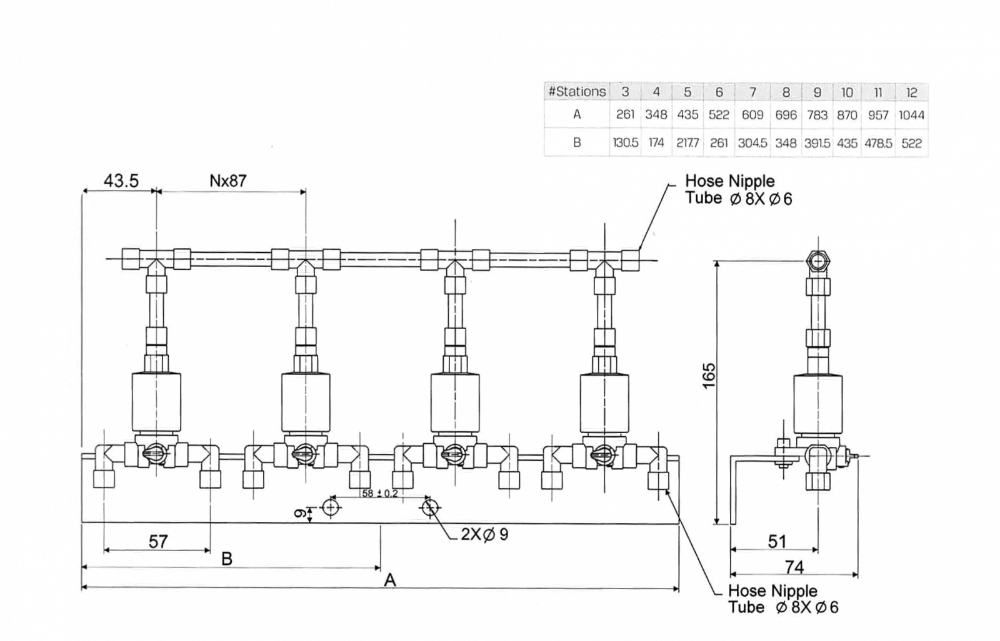

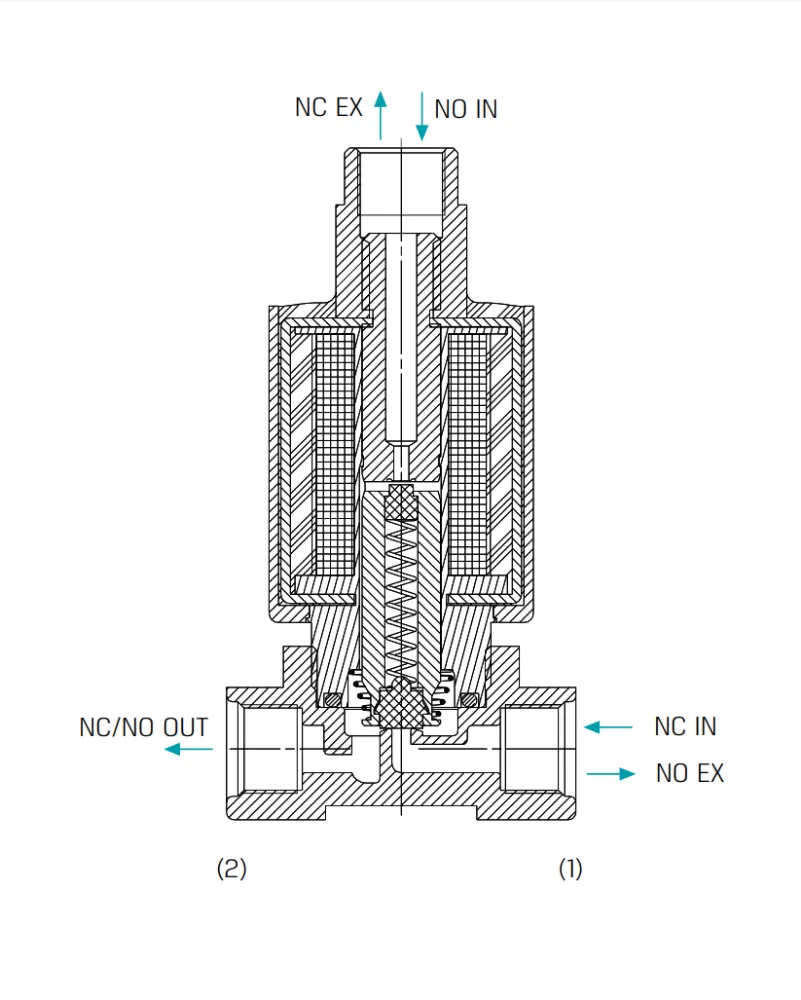

G75-M Manifold Plumbing Diagram

G75-M Manifold-plumbing-diagram

Manifold with 2, 4 or 6 x G75-A Plastic 1/8" BSP 3 Way NO 24V AC Orifice: 1.6mm with Manual Override

Technical Data

Function 3 Way NO
Ports size 1/8"
Orifice size See table
Pressure range See table
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Reinforced Nylon
Main Valve:
Brass or Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM
Coil voltage • Voltage and power consumption - see table
Standard protection class IP66

* Available with brass adaptor upon request

Max. Pressure (bar) Table

Function Orifice (mm) AC DC DC
Latch
3W NO 1 0 16 16 16
1 2 12 12 12
1 6 10 10 10

Voltage and Current Table

Solenoid Voltage Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%
03 019
2W 60 Hz 02 014
3W 50/60 Hz * 0125 0125
DC 45W

* Except 24V AC without Diode

Voltage and Power Consumption

  AC (W) DC (W)
50 Hz
V 2 45
24

g75-m-manifold-dimension

G75-M Manifold Plumbing Diagram

G75-M Manifold-plumbing-diagram
