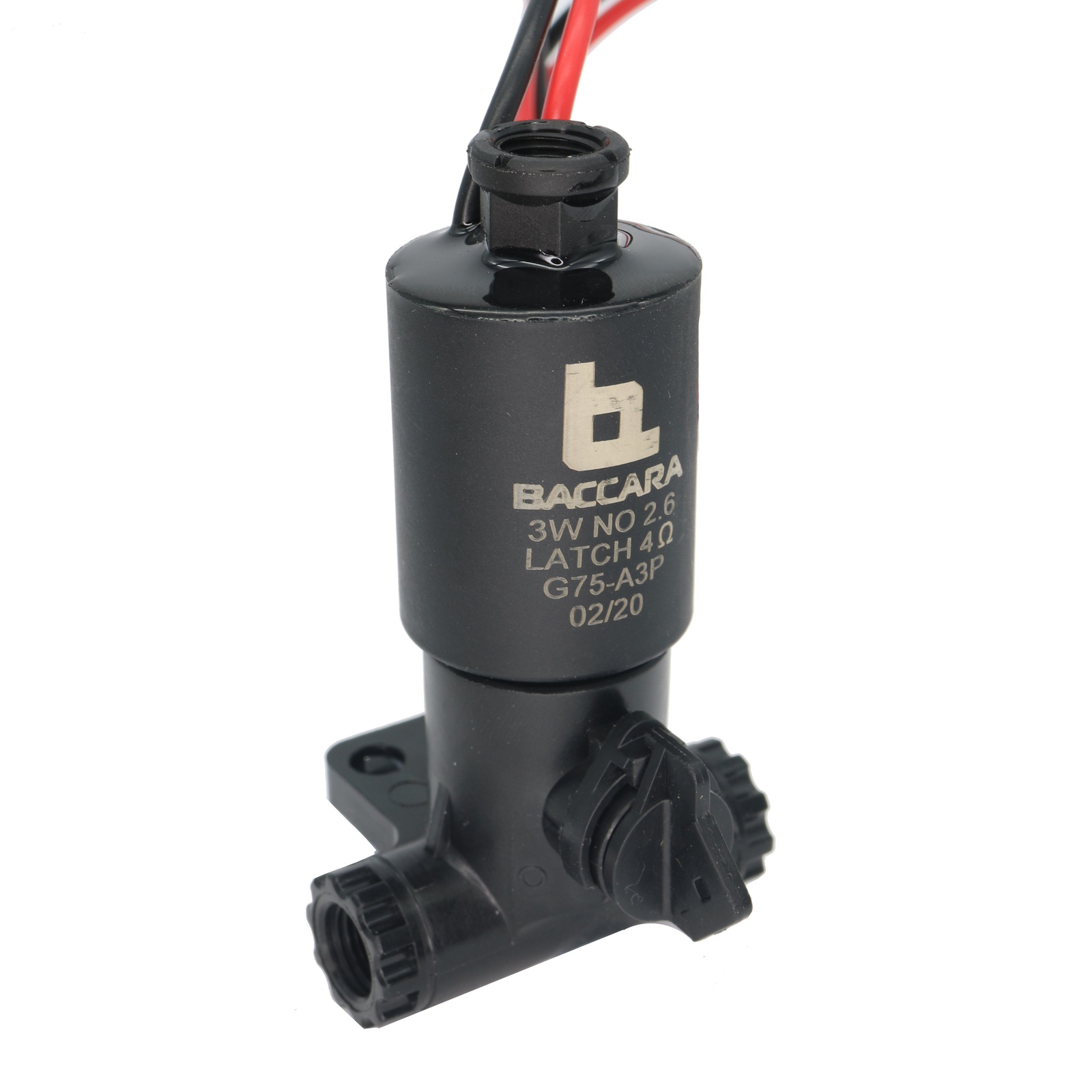

G75-A3P | Latch Irrigation Solenoid Valve

Size
:
1/8" BSP
Function
:
2 Way NC, 3 Way, NC, NO
Valve Operation
:
Direct Operated
Body Material
:
Plastic
Seal
:
NBR
Pressure Range
:
8 - 10 bar
Media
:
Air, water
US $68.00
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
+ -

Technical Data

Function 2 Way NC, 3 Way NC, NO
Ports size 1/8” BSP & NPT
Orifice size 2.6 mm
Pressure range NC 2 Way : 10 bar
NC 3 Way : 8 bar
NO 3 Way : 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : 10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic
Main Valve:
UV Stabilized - Reinforced Nylon 6 30% GF
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR
Mounting 2 x Ø6 mm holes
Manual override 3 positions (Open/Auto/Close)
Media Air, water
Coil voltage Latch
Switching time 40-60 msec
Electric connection 22AWG cable
Standard protection class IP66

* Can only be operated with supplied coil

Coil resistance vs input voltage range

Resistance [] Suitable input voltage range [V]
1 8 - 12
4 12 - 18

G75-A3P-latch-irrigation-solenoid-valve-Dimensions

G75-A3P-2W-Plumbing-Diagram

G75-A3P-2W-latch-irrigation-solenoid-valve-Plumbing-Diagram

G75-A3P-three-way-latch-irrigation-solenoid-valve-Plumbing-Diagram
