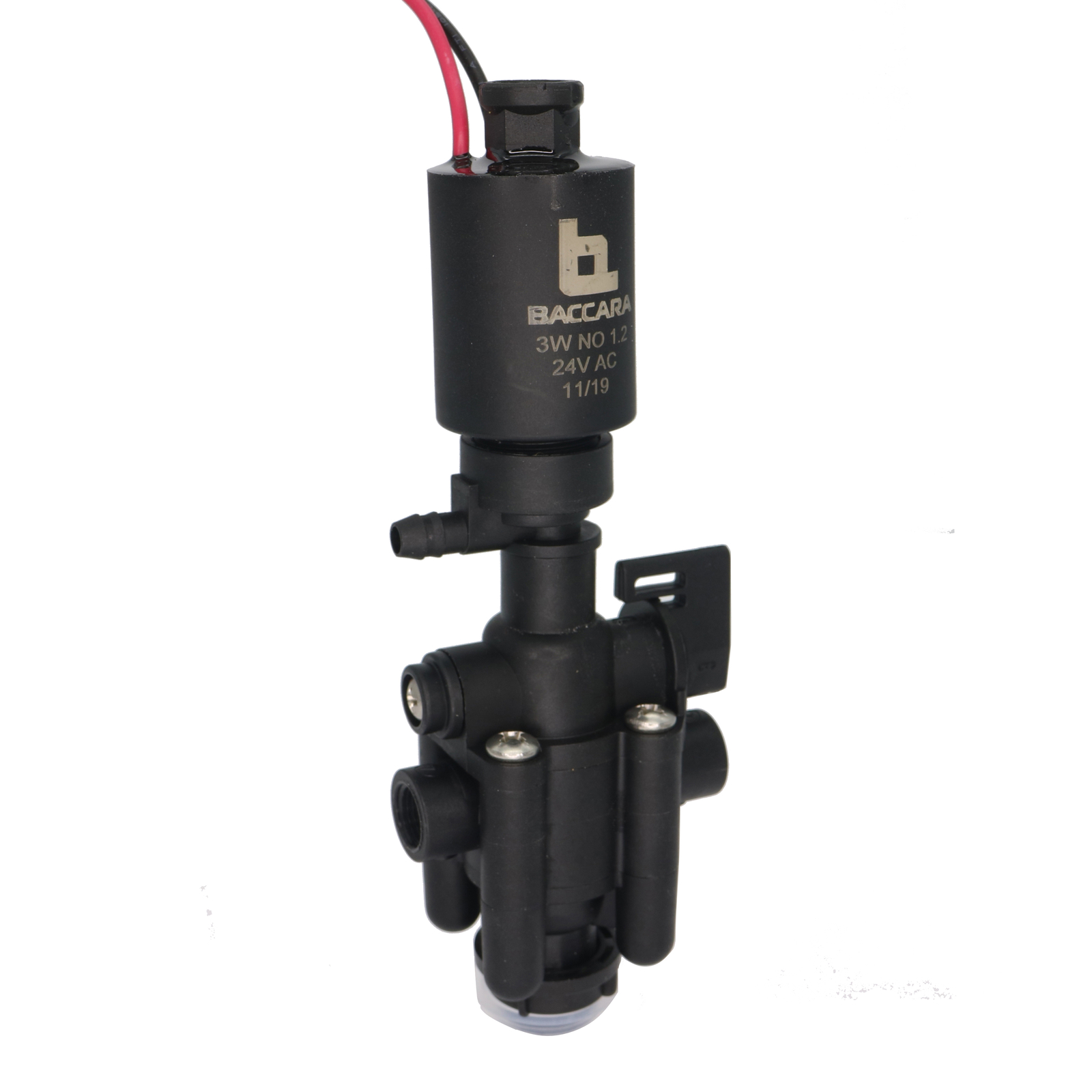

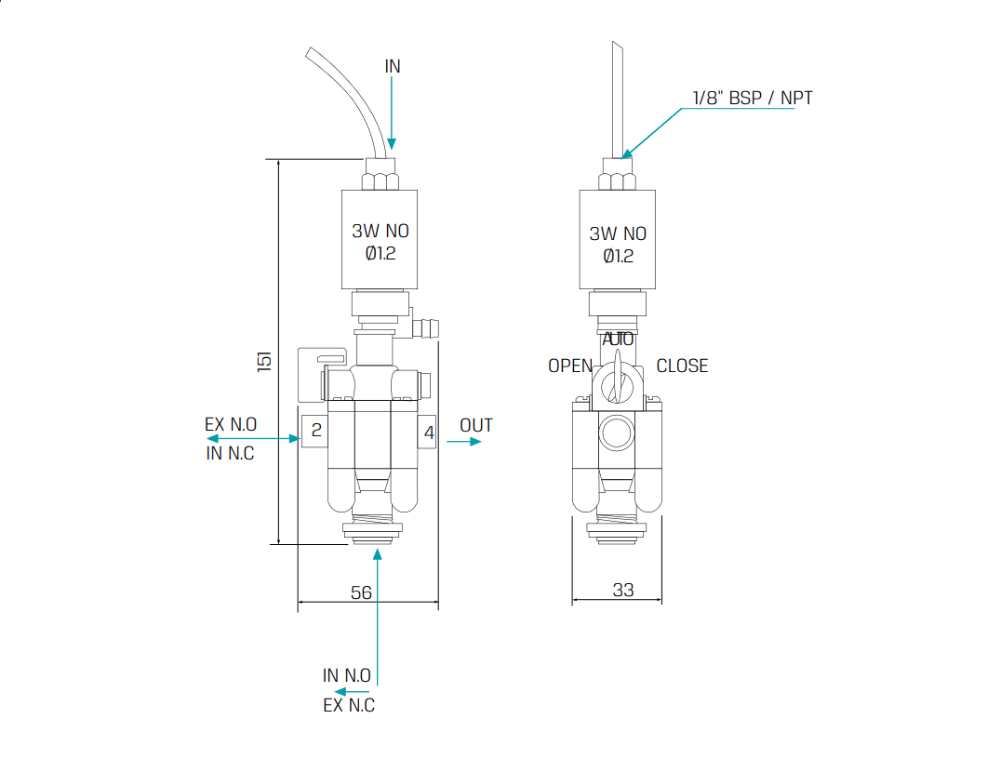

Technical Data
Function |
3 Way NC, NO |
Ports size |
1/8" BSP & NPT |
Orifice size |
5mm |
Pressure range |
1 to 10 bar |
Temperature range |
Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Main Valve: Reinforced Nylon Solenoid Operator: Stainless Steel 300 & 400 series Seals: NBR Spring: Stainless Steel AISI 300 series |
Manual override |
Manual override with 3 positions : • AUTO - for automatic operation (valve is open when solenoid is energized) • MANUAL - valve is kept open • CLOSE - valve is kept closed |
Solenoid |
Assembled with 3W NO 1.2mm G75 operator |
Coil voltage |
• Voltage and power consumption - see table |
Standard protection class |
IP66 |
Voltage and Current Table
Solenoid |
Voltage |
Inrush [A] |
Holding [A] |
2W 50 Hz |
+10% n-20% V |
0.3 |
0.19 |
2W 60 Hz |
0.2 |
0.14 |
3W 50/60 Hz * |
0.125 |
0.125 |
DC |
4.5W |
* Except 24V AC without Diode
Voltage and Power Consumption
|
AC (W) |
DC (W) |
50 Hz |
V |
2 |
4.5 |
12 |
• |
• |
24 |
• |
• |
• Available options
Coil resistance vs input voltage range
Resistance [Ω] |
Suitable input voltage range [V] |
4 |
6 - 9 |
9 |
12 - 14 |
12 |
14 - 16 |
23 |
18 - 21 |
