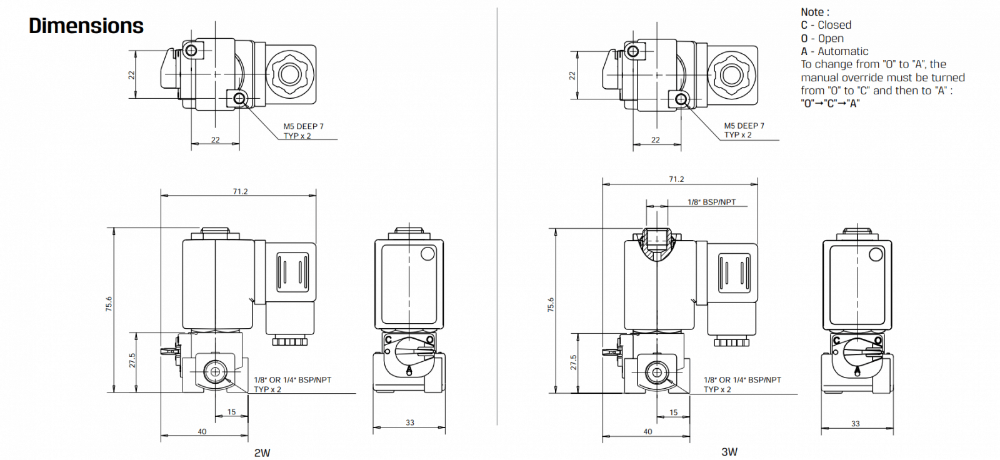

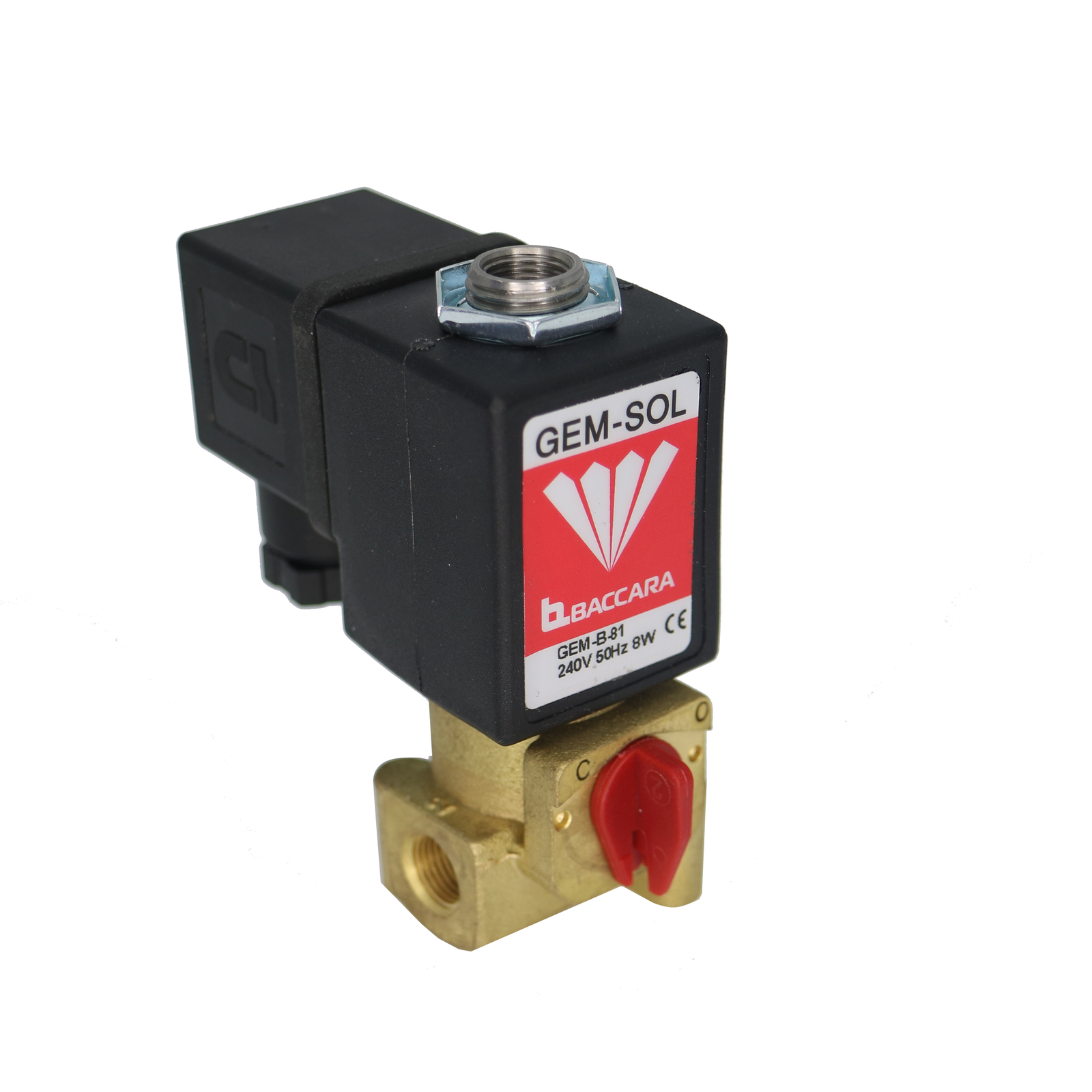

Technical Data
| Function |
2, 3 Way NC |
| Ports size |
1/8" and 1/4" BSP |
| Orifice size |
See table |
| Pressure range |
See table |
| Kv (l/min) |
See table |
| Temperature range |
Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC |
Materials in contact
with media |
Manual override:
Plastic
Main Valve:
Brass
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, EPDM |
| Media |
Air, water, oil |
| Coil type |
Latch |
| Standard protection class |
IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil) |
Max. Pressure (bar) 2W NC table
| Orifice (mm) |
08 |
1 2 |
1 6 |
2 0 |
2 4 |
30 |
40 |
| Pressure (bar) |
16 |
16 |
16 |
16 |
16 |
16 |
8 |
| Flow factor Kv(l/min) |
05 |
1 1 |
1 7 |
2 5 |
35 |
45 |
5 |
Max. Pressure (bar) 3W NC table
| Orifice (mm) |
08 |
1 2 |
1 6 |
2 0 |
2 4 |
30 |
| Pressure (bar) |
16 |
16 |
16 |
14 |
10 |
6 |
| Flow factor Kv(l/min) |
05 |
1 1 |
1 7 |
2 5 |
35 |
45 |

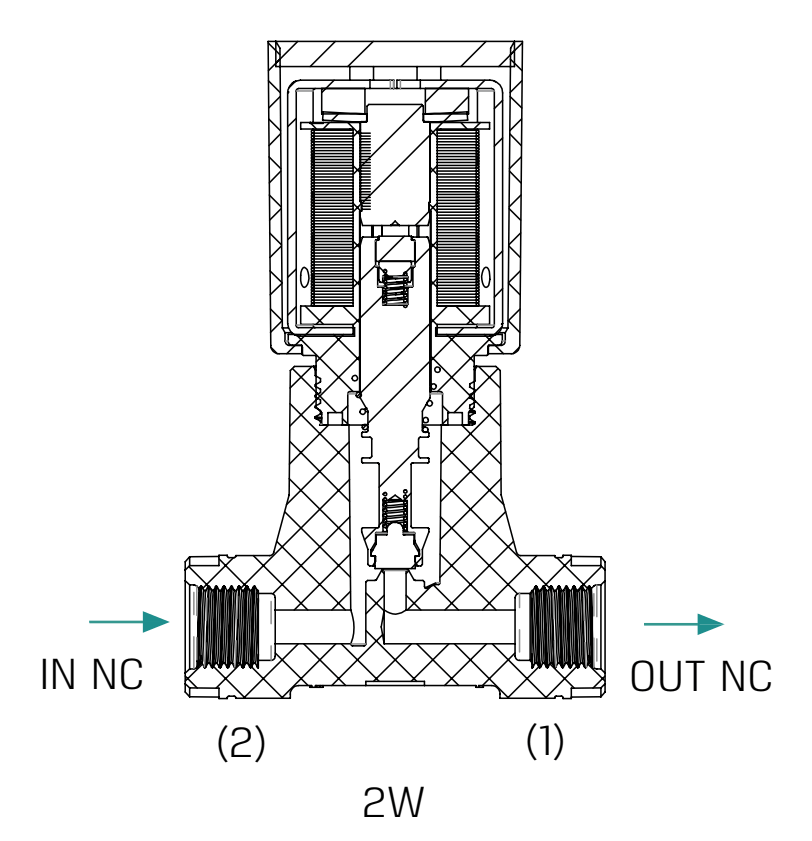

G75-A3P-2W-Plumbing-Diagram
