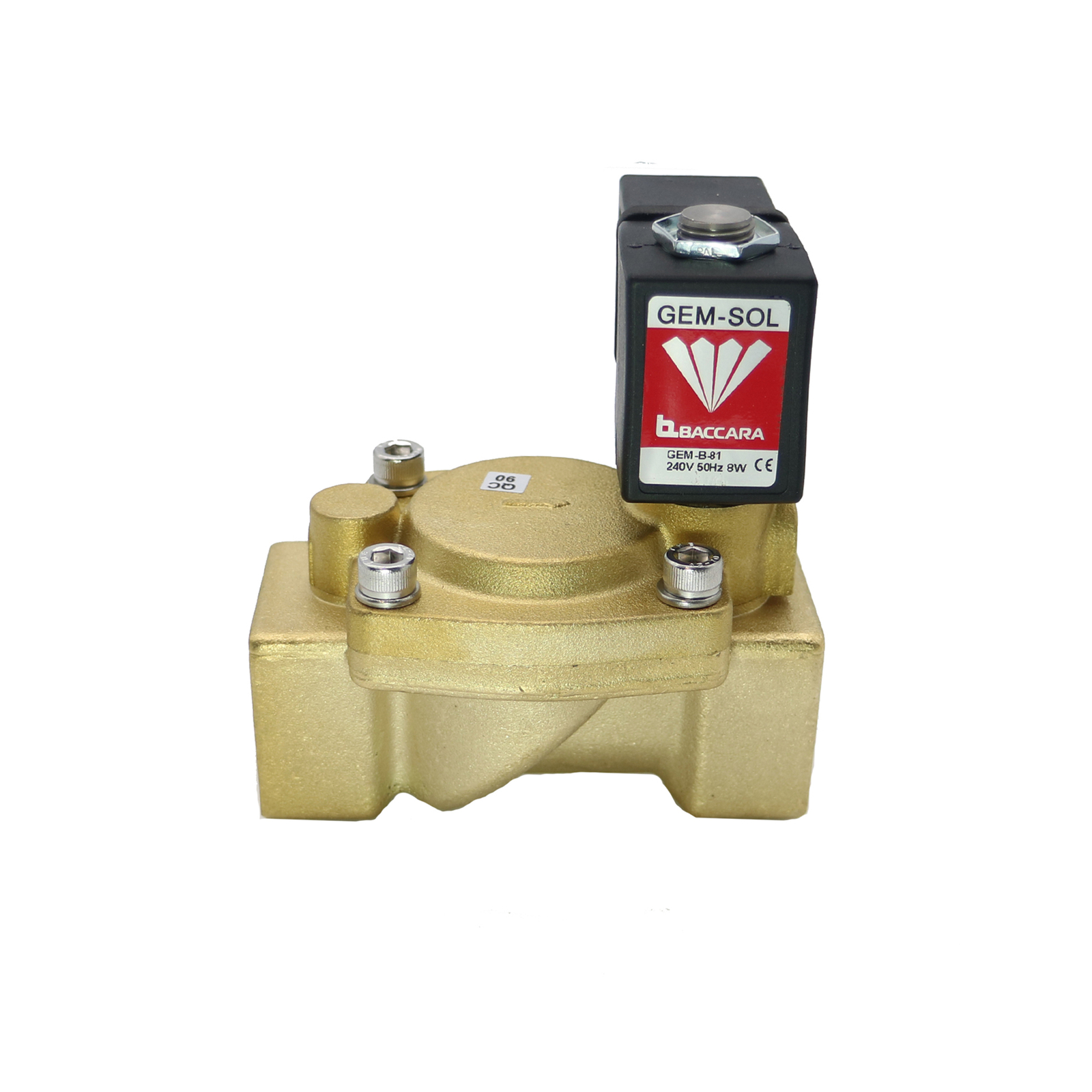

GEM-S | General Purpose Brass Solenoid Valve

Size
:
1/4", 3/8", 1/2", 3/4" and 1" BSP
Function
:
2 Way, NC, NO
Valve Operation
:
Pilot Operated
Body Material
:
Brass
Seal
:
NBR
Pressure Range
:
See table* Minimum pressure differential of 03 or 05 is required
Media
:
US $137.00
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
*
*
+ -

Technical Data

Function 2 Way NC, NO
Ports size 1/4", 3/8", 1/2", 3/4", 1" BSP & NPT
Pressure range

See table
* Minimum pressure differential of
03 or 05 is required
* Pressure of voltage DC is  70% of voltage AC only.

Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
NC/NO - Brass screw
NOa* - manual override is not available

*pressure is supplied through the base
Main Valve:
Brass, Stainless Steel AISI 316
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM

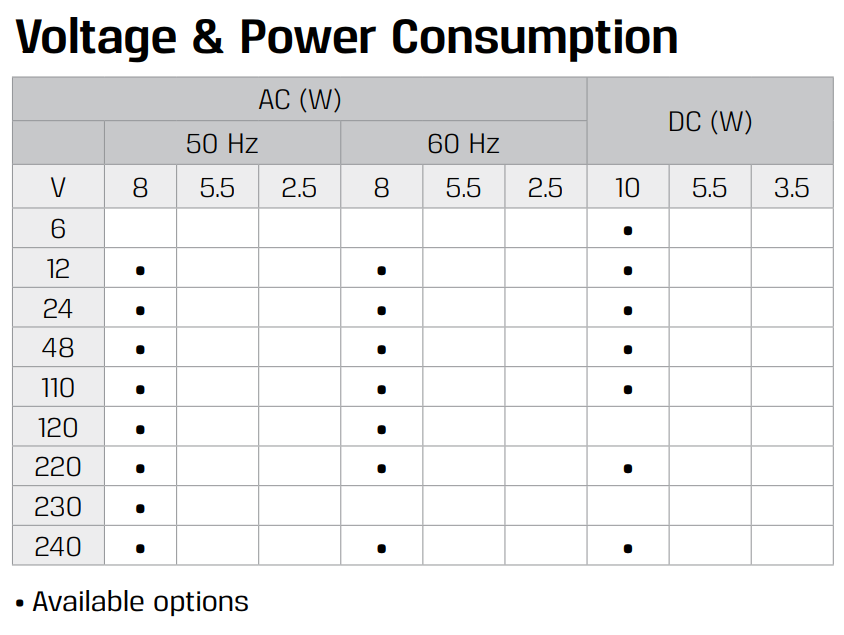

Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard / Certification • UL 429
* Available on selected models only
Please contact our technical sales
department for details
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)

• Slow closing system to prevent water hammer effect

Gem-S-general-purpose-brass-solenoid-valve

Pressure (bar) & Flow table NO/NC GEM-S--20....41

Size Orifice
(mm)
Pressure
(bar)
Kv
(l/min)
1/4" 8 05 to 20 12
3/8" 8 16
1/2" 12 35



Pressure (bar) & Flow table NO/NC GEM-S--r

Size Orifice
(mm)
Pressure
(bar)
Kv
(l/min)
1/2" 16 05 to 20 60
3/4" 16 80



Pressure (bar) & Flow table NO/NC GEM-S--50....60

Port
Connection
Orifice
(mm)
Pressure (bar)
AC DC
Kv
(l/min)
3/4" 20 03 to 15 03 to 15 130
1" 25 05 to 15 05 to 15 200

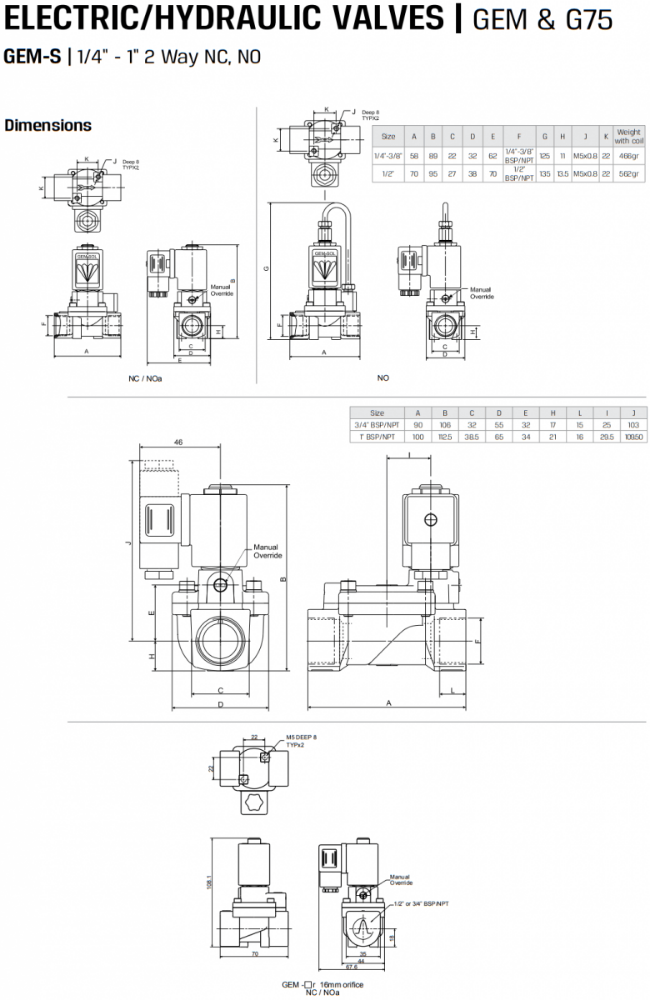

GEM-S-General-Purpose-Brass-Solenoid-Valve-dimensions

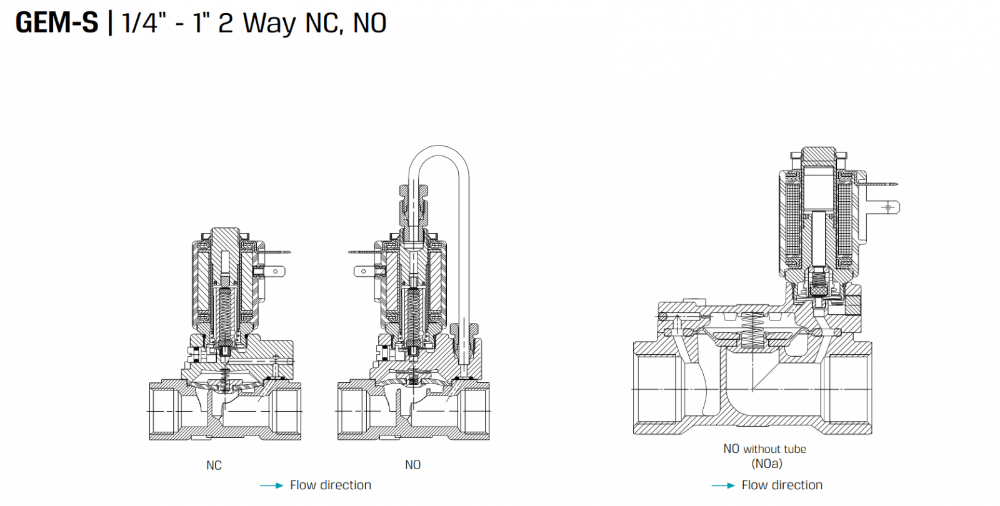

GEM-S-General-Purpose-Brass-Solenoid-Valve Plumbing-Diagram

GEM-S-General-Purpose-Brass-Solenoid-Valve-Plumbing-Diagram

Technical Data

Function 2 Way NC, NO
Ports size 1/4", 3/8", 1/2", 3/4", 1" BSP & NPT
Pressure range

See table
* Minimum pressure differential of
03 or 05 is required
* Pressure of voltage DC is  70% of voltage AC only.

Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
NC/NO - Brass screw
NOa* - manual override is not available

*pressure is supplied through the base
Main Valve:
Brass, Stainless Steel AISI 316
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard / Certification • UL 429
* Available on selected models only
Please contact our technical sales
department for details
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)

• Slow closing system to prevent water hammer effect

Gem-S-general-purpose-brass-solenoid-valve

Pressure (bar) & Flow table NO/NC GEM-S--20....41

Size Orifice
(mm)
Pressure
(bar)
Kv
(l/min)
1/4" 8 05 to 20 12
3/8" 8 16
1/2" 12 35



Pressure (bar) & Flow table NO/NC GEM-S--r

Size Orifice
(mm)
Pressure
(bar)
Kv
(l/min)
1/2" 16 05 to 20 60
3/4" 16 80



Pressure (bar) & Flow table NO/NC GEM-S--50....60

Port
Connection
Orifice
(mm)
Pressure (bar)
AC DC
Kv
(l/min)
3/4" 20 03 to 15 03 to 15 130
1" 25 05 to 15 05 to 15 200



GEM-S-General-Purpose-Brass-Solenoid-Valve-dimensions

GEM-S-General-Purpose-Brass-Solenoid-Valve Plumbing-Diagram

GEM-S-General-Purpose-Brass-Solenoid-Valve-Plumbing-Diagram
