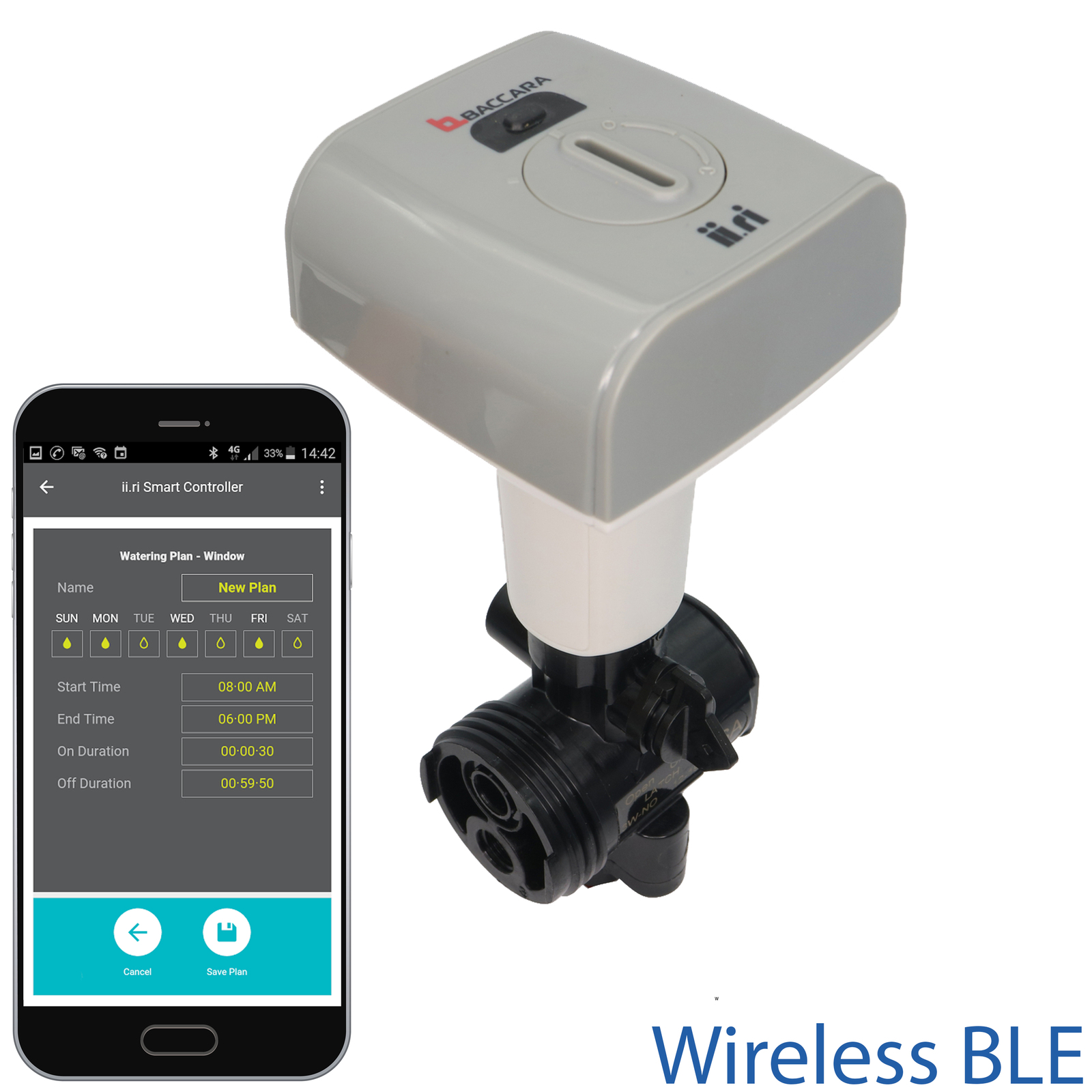

ii.ri-C-VSA | 1/8" BSP Smart Irrigation Controller 3W

Function
:
3 Way Latch
Body Material
:
Plastic
Seal
:
EPDM
Pressure Range
:
0 - 8 Bar
US $131.00
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Highlights

  • Single Station Irrigation Controller
  • Wireless operated by smart device
  • Four irrigation program types
  • Min required iOS 7 or Android V4.3
  • Battery Included

Programming Key Features

* Four different irrigation plans

Weekly Interval Days Even / Odd Days Window
Irrigation each day of
the week
Periodical days up to
98 periods
Even / odd calendar
dates
Repeated cycles within
a defined time frame
Set up to 6 cycles per day Set cycle On and Off
duration
Option to set different irrigation durations per cycle Set start and end times
for irrigation

Baccara ii.ri The smart and simple way to control your garden irrigation.

Manage and control your garden irrigation system through a user-friendly smartphone app.Until recently the world of irrigation controllers was reserved for professional gardeners, requiring complicated technical and operational know-how. But that’s all history now.
The new ii.ri by Baccara, is the first irrigation controller that allows anyone and everyone to manage and control their garden irrigation system through a user-friendly smartphone app.

  • The ii.ri smartphone irrigation controller features four different built-in plans that address most of the automatic irrigation needs
  • Programming the ii.ri is simple and intuitive, nevertheless it requires a little know-how in order to familiarize yourself with it
  • It is recommended to define the irrigation areas before starting the programming process
  • The ii.ri can actuate one valve each time, therefore, one controller would be used for each irrigation area.
  • There is no need to connect the ii.ri to the smartphone during the programming process.
  • The irrigation specifications depends on the type of field crops, flowers, trees, etc and may vary depending on the seasons.
  • The ii.ri it is self-energized by an internal battery and does not require any additional wiring or power supply.
  • The ii.ri app must be installed and running on the smartphone

Technical Data

Function 3 Way Latch
Pressure range 0 to 8 bar
Temperature range Fluid : 5º to 50ºC (no freezing)
Ambient : -5º to 50ºC
Communication range Up to 10 m (328 feet)
App Downloading Google Play or Apple Store
Pairing code Not required
Battery type CR123
Mounting Direct mounting on UNEF 3/4"
Standard / Certification • CE
• Federal Communications Commission (FCC)
Standard protection class • Dust and watertight IP68

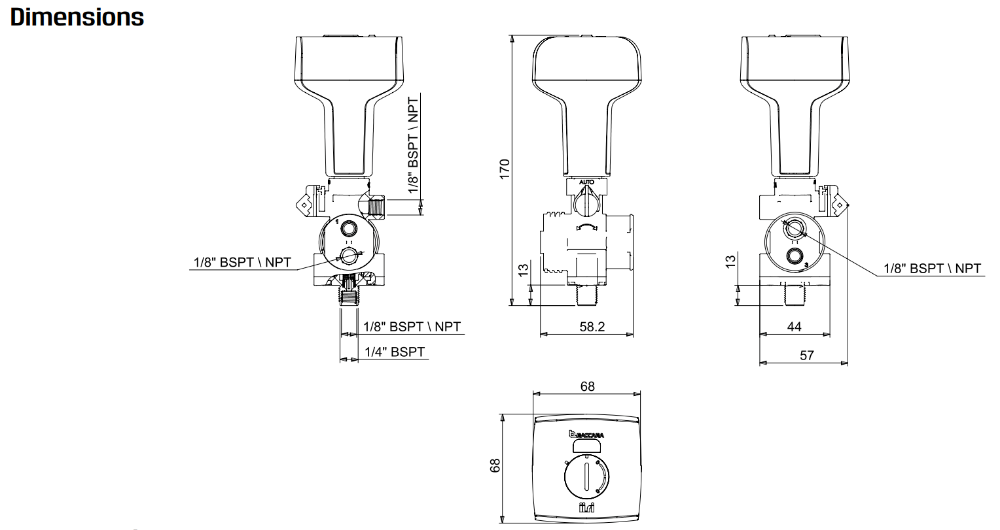

ii.ri-C-VSA-1-8-BSP1Smart-Irrigation-Controller-3W-dimensions

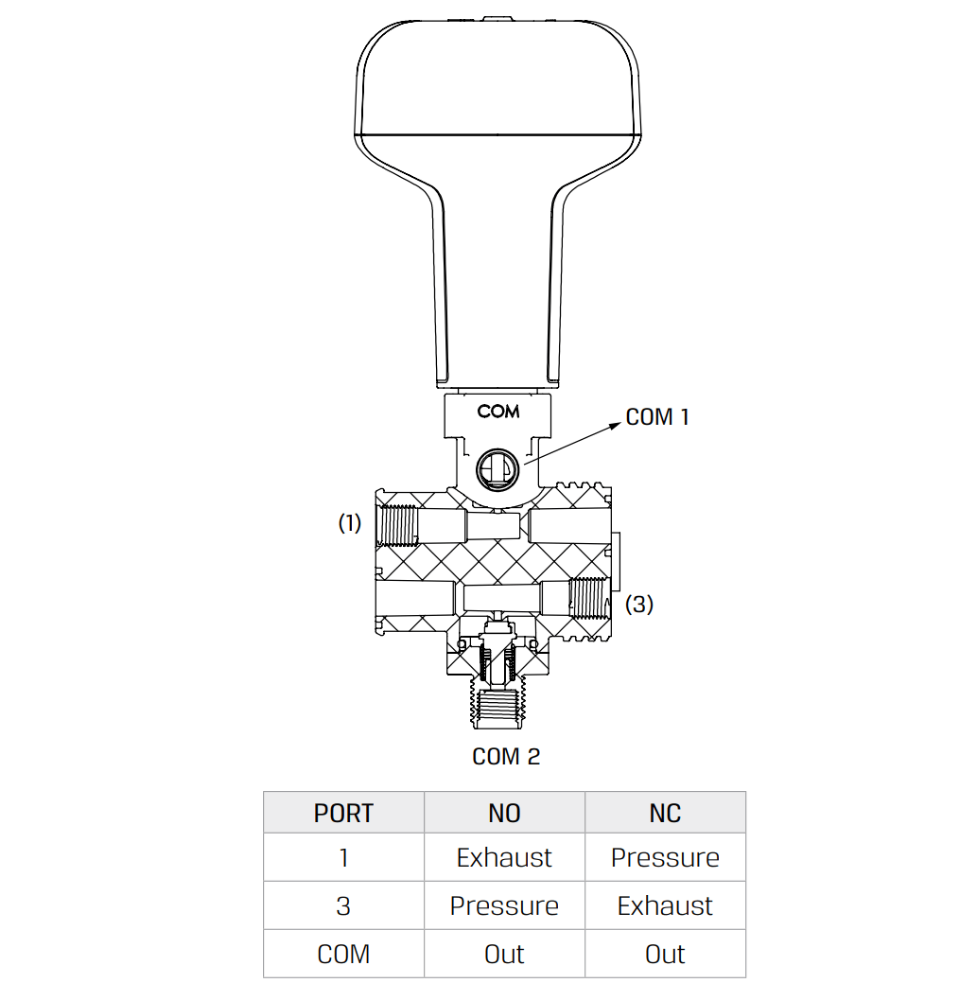

ii.ri-C-VSA | 1/8" BSP Smart Irrigation Controller 3W Plumbing Diagram

ii.ri-C-VSA-1-8-BSP1Smart-Irrigation-Controller-3W-plumbing-diagram
