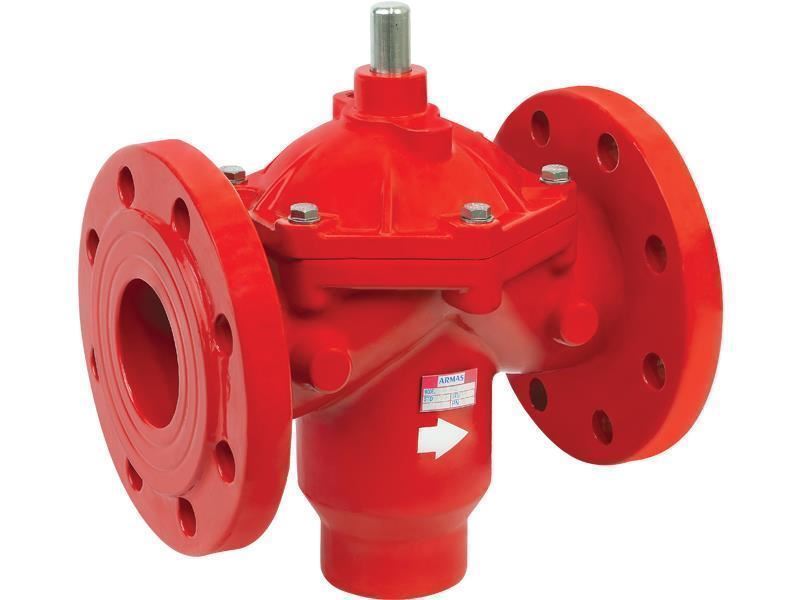

Back Flushing Control Valve

SKU: 600-Series-BF
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Back Flushing Control Valve prevents that fresh water is mixed with waste water and cleans filter elements in the best manner.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25
Coating
:
Polyester
Temperature
:
-10 to 80 °C
Flow Rate
:
20 - 100 m3/h
US $205.00
*

Armas Back Flushing Control Valve

Applications

  • Irrigation
  • Industrial

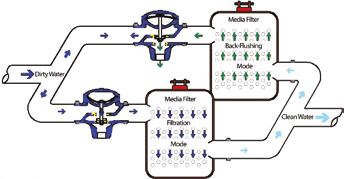

Back Flushing Control Valve Working Principle

ARMAS Back Flushing Control Valve

Armas Backflushing control valves are the 3-way control valves which are operated by line pressure or an external pneumatic pressure. Valve works in filtration and back flushing mode as coordinated with filter elements in the system. Diaphragm-pilot valve assembly of valve works as bidirectional. While valve is switching into backflushing mode in filtration mode, pilot valve changes its way and opens relief way. It thereby prevents that fresh water is mixed with waste water and cleans filter elements in the best manner.

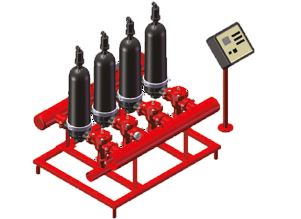

ARMAS Back Flushing Control Valve Sample Application

Back Flushing Control Valve Sample Application

Armas Back Flushing Control Valve

Applications

  • Irrigation
  • Industrial

Back Flushing Control Valve Working Principle

ARMAS Back Flushing Control Valve

Armas Backflushing control valves are the 3-way control valves which are operated by line pressure or an external pneumatic pressure. Valve works in filtration and back flushing mode as coordinated with filter elements in the system. Diaphragm-pilot valve assembly of valve works as bidirectional. While valve is switching into backflushing mode in filtration mode, pilot valve changes its way and opens relief way. It thereby prevents that fresh water is mixed with waste water and cleans filter elements in the best manner.

ARMAS Back Flushing Control Valve Sample Application

Back Flushing Control Valve Sample Application
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

 Download Armas Back Flushing Control Valves Catalogue

Available Models

Model 21 Diameter Connection Dimensions
Armas BackflushingValve Model 21 Dimensions 2"x2" Filter: 2” Threaded   mm inch
L 195 7.8
Drainage: 2” Threaded H 190 7.6
H1 100 4

Model 27 Diameter Connection Dimensions
Armas 600 BackflushingValve Model 27 Dimensions 4"x3" Filter: 4” Flanged   mm inch
L 295 11.6
Drainage: 3” Threaded H 240 9.4
H1 125 5

Model 28 Diameter Connection Dimensions
Armas 600 BackflushingValve Model 28 Dimensions 4"x3" Filter: 4” Grooved End   mm inch
L 270 10.6
Drainage: 3” Grooved End H 240 9.4
H1 125 5

Model 37 Diameter Connection Dimensions
Armas 600 BackflushingValve Model 37 Dimensions 3"x2" Filter: 3” Flanged   mm inch
L 230 9
Drainage: 2” Threaded H 138 5.4
H1 272.5 10.7

Model 38 Diameter Connection Dimensions
Armas 600 BackflushingValve Model 38 Dimensions 3"x2" Filter: 3” Grooved End   mm inch
L 230 9
Drainage: 2” Threaded H 138 5.4
H1 272.5 10.7

Parts List

Part Name Material
Body Cast Iron - GG 25
Cover Cast Iron - GG 25
Diaphragm Nylon Reinforced Natural Rubber
Stem Stainless Steel - SST 304
Spring Thrust Ring Polyamide
Spring Stainless Steel - SST 302
Bolt, Nut Coated Steel - SST
Sealing Seat Bronze
Sealing Gaskets EPDM, Natural Rubber
Head Loss Charts

4x3 Back flushing valve Head Loss Chart 3x2 Back flushing Valve Head Loss Chart
2x2 Back flushing valve Head Loss Chart
