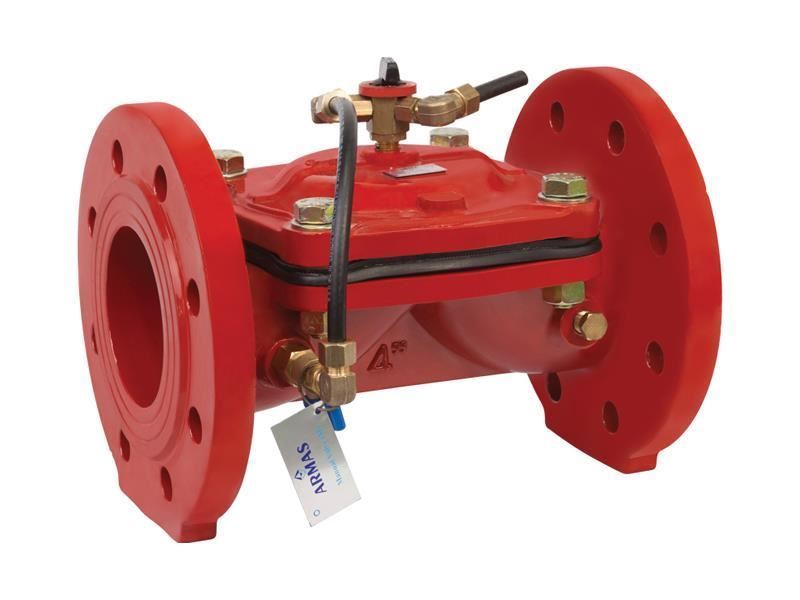

Manual Hydraulic Control Valve

Be the first to review this product

Manual hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of a 3-way selector valve.

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

US $96.00

Manufacturer: Armas Valves & Filters

SKU: 600-Series-M

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Threaded

Not available
Grooved End

Not available
Flanged

Not available

Threaded Valve Size: *

Threaded Valve Max Working Pressure: *

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series Manual - Hydraulic Control Valve

Applications

Irrigation
Industrial
Local operation of hydraulic valve by a manual command.

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Armas 600 series Manual hydraulic control valve

ARMAS 600 Series Manual Control Valve

Armas manual hydraulic control valve is operated by line pressure and designed to ensure opening/closing process by means of 3-way selector valve. Minimum opening pressure of valve is 0.7 bar. Thanks to its flexible diaphragm, it makes easy and fast control process in high pressure applications and is closed as full tightness without causing surge. It can be used in different applications by adding different pilot valves on its main body.

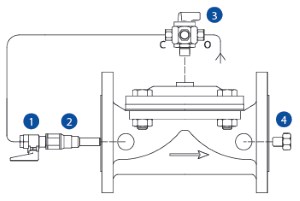

COMPONENTS:

Ball Valve
In-line Finger Filter
3-Way Selector Valve
Plug

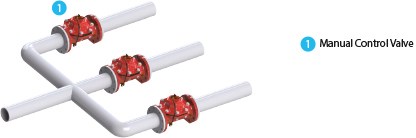

ARMAS 600 Series Manual Control Valve Sample Application
