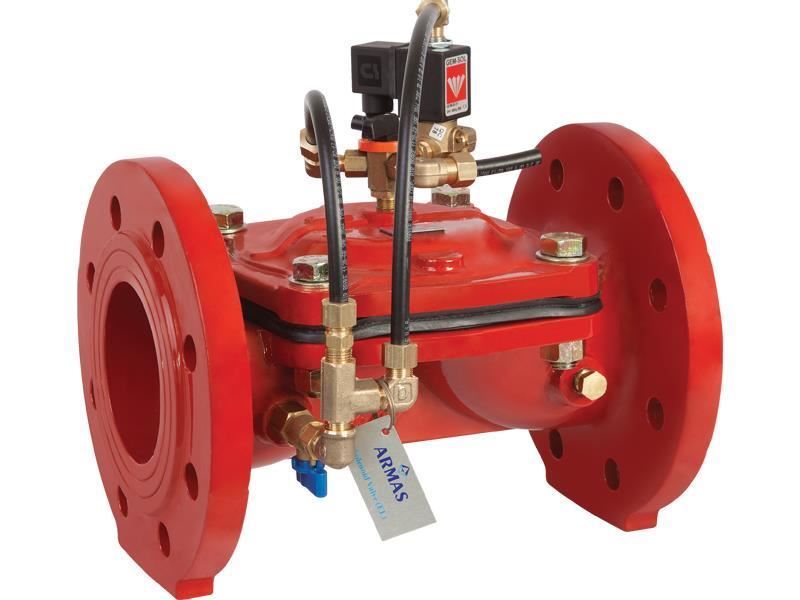

Solenoid Controlled Hydraulic Control Valve

Baccara Solenoid Controlled Hydraulic Control Valve ensures opening/closing process by means of built-in 3/2-way solenoid pilot valve.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
US $153.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-EL
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Threaded
    Threaded
    Not available
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
*
*
+ -

Armas 600 Series Baccara Solenoid Controlled Hydraulic Control Valve

Applications

  • Irrigation
  • Industrial
  • Local operation of hydraulic valve by a manual command.

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Solenoid controlled hydraulic control valve

ARMAS 600 Series Solenoid Controlled Hydraulic Control Valve

Armaş Solenoid Controlled Hydraulic Control Valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built-in 3/2-way solenoid pilot valves controlled remotely with electric signal. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc.

Opening/Closing process may be realized easily thanks to manual control on solenoid pilot valve. Depending on desire, 24V AC 50Hz/60Hz or 12V DC, 9V DCLATCH and 12V DC latch normally open (N.O.) or normally closed (N.C.) solenoid coils may be used on main valve.

COMPONENTS:

  1. Ball Valve
  2. In-line Finger Filter
  3. Solenoid Pilot Valve
  4. 3-Way Selector Valve
  5. Plug

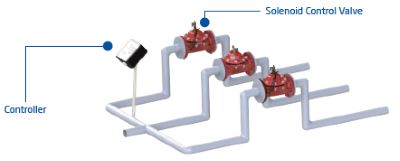

ARMAS 600 Series Solenoid Controlled Hydraulic Control Valve Sample Application

Solenoid controlled hydraulic control valve sample

Armas 600 Series Baccara Solenoid Controlled Hydraulic Control Valve

Applications

  • Irrigation
  • Industrial
  • Local operation of hydraulic valve by a manual command.

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Solenoid controlled hydraulic control valve

ARMAS 600 Series Solenoid Controlled Hydraulic Control Valve

Armaş Solenoid Controlled Hydraulic Control Valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built-in 3/2-way solenoid pilot valves controlled remotely with electric signal. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc.

Opening/Closing process may be realized easily thanks to manual control on solenoid pilot valve. Depending on desire, 24V AC 50Hz/60Hz or 12V DC, 9V DCLATCH and 12V DC latch normally open (N.O.) or normally closed (N.C.) solenoid coils may be used on main valve.

COMPONENTS:

  1. Ball Valve
  2. In-line Finger Filter
  3. Solenoid Pilot Valve
  4. 3-Way Selector Valve
  5. Plug

ARMAS 600 Series Solenoid Controlled Hydraulic Control Valve Sample Application

Solenoid controlled hydraulic control valve sample
