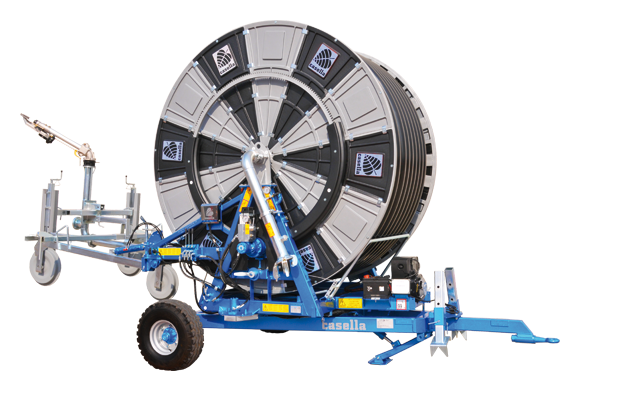

Casella EXP MOTOR 100/400 Hard Hose Irrigator

SKU: EXP M
Manufacturer: Casella

Diesel engine driven hard hose irrigator perfect for applications with LOW FLOW RATE and PRESSURE!

Hose Length
:
400 m
Hose Diameter
:
100 mm
Hose Thickness
:
9.0 mm
Working Pressure
:
60 - 100 psi
Water Flow
:
650 - 1100 l/min
Effective Spray Width (Diameter)
:
60 - 90 m
Total Irrigated Area
:
440 X 560 m = 246,400 m² (24 Hectare) in 7 days
Sprinkler
:
DuCaR Green 150 or Sime Reflex
Weight
:
2600 kg
Mechanism
:
Hydraulic Gear Box
Rewind Speed Control
:
Computer 260
Call for pricing

CASELLA Hard Hose Irrigator EXP MOTOR 100/400

Applications

Agriculture: Medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

This higly efficient hard hose irrigator is operated by a small 7 HP diesel engine. So, it does not require ANY water flow and pressure to operate the machine. The fuel consumption of the motor is around 0.5 liter per hour and you can run the machine up to 60 hours with one full tank. It is perfect for irrigation applications with very low flow rate and pressure. Except the friction loss along the 400 m hose on the machine, there will be NO pressure loss in between the gun and water inlet of the machine.

FEATURES

  • Heavy duty design
  • Hot dip galvanised and powder coated DOUBLE chassis
  • Travel shut-off mechanism
  • High efficient turbine
  • 7 HP Diesel Engine with 30 lt of tank
  • 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control
  • Computer for adjusting the rewinding speed and pausing at the beginning and end of run
  • Hydraulic rotation of upper frame (360°) with tractor connection
  • Hydraulic lift for sprinkler trolley
  • Trolley with 3 Rubber Wheels
  • Flexible hose Ø80 for water inlet
  • Double (two sides) water inlets
  • Tyres : 10.0 / 80-12
  • Mechanical front brackets
  • Water Flow : 650 - 1100 l/min
  • Comes with Ducar Green 150 or Sime Reflex Sprinkler Head
  • Excellent Water Uniformity
  • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement : The Cassella EXP-MOTOR can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Made in Italy



 Download Casella Quality Comperison Document

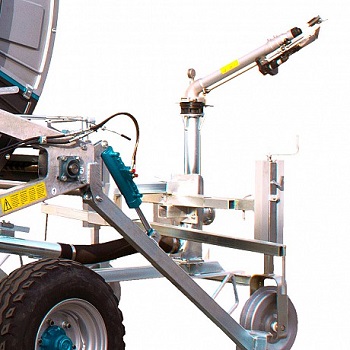

Casella Hydraulic Lift
 Hydraulic pump and lifting system for trolley.

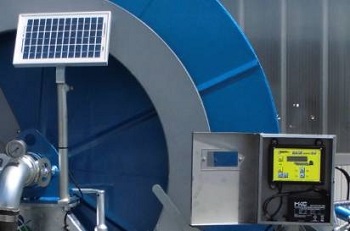

Casella Hydro Control 160

Hose re-winding control 5 to 250 m/h.
During irrigation the back-lit display shows:
irrigator recovery speed in m/h, remaining
length to be rewound, remaining time to the
end of irrigation.

Solar energy powered rewinding speed control panel.

Casella Computer
HY-TURB-M-110-400 Pipe Sizes

Largest diameters on all major connection pipes to save energy.

HY-TURB-M-110-400 double inlet

1. Strong Double Water Inlet

2.Flexible hose connection to reduce vibrations

HY-TURB-M-110-400-Drum

Big Cassella Quality Drum

HY-TURB-M-110-400-drum-support

Support for Big Drum

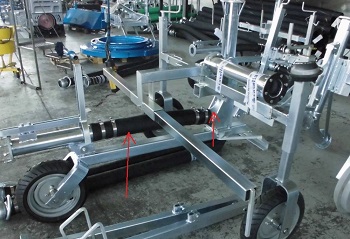

HY-TURB-M-110-400-Trolley

Cassella Trolley

HY-TURB-M-110-400-fron-fixingHY-TURB-M-110-400-front-lift

Front tow connection and manual brackets

HY-TURB-S-75-300-Wheel

Wide wheels for maximum stability

Casella label
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0

CASELLA Hard Hose Irrigator EXP MOTOR 100/400

Applications

Agriculture: Medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

This higly efficient hard hose irrigator is operated by a small 7 HP diesel engine. So, it does not require ANY water flow and pressure to operate the machine. The fuel consumption of the motor is around 0.5 liter per hour and you can run the machine up to 60 hours with one full tank. It is perfect for irrigation applications with very low flow rate and pressure. Except the friction loss along the 400 m hose on the machine, there will be NO pressure loss in between the gun and water inlet of the machine.

FEATURES

  • Heavy duty design
  • Hot dip galvanised and powder coated DOUBLE chassis
  • Travel shut-off mechanism
  • High efficient turbine
  • 7 HP Diesel Engine with 30 lt of tank
  • 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control
  • Computer for adjusting the rewinding speed and pausing at the beginning and end of run
  • Hydraulic rotation of upper frame (360°) with tractor connection
  • Hydraulic lift for sprinkler trolley
  • Trolley with 3 Rubber Wheels
  • Flexible hose Ø80 for water inlet
  • Double (two sides) water inlets
  • Tyres : 10.0 / 80-12
  • Mechanical front brackets
  • Water Flow : 650 - 1100 l/min
  • Comes with Ducar Green 150 or Sime Reflex Sprinkler Head
  • Excellent Water Uniformity
  • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement : The Cassella EXP-MOTOR can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Made in Italy



 Download Casella Quality Comperison Document









Casella Hydraulic Lift
 Hydraulic pump and lifting system for trolley.

Casella Hydro Control 160

Hose re-winding control 5 to 250 m/h.
During irrigation the back-lit display shows:
irrigator recovery speed in m/h, remaining
length to be rewound, remaining time to the
end of irrigation.

Solar energy powered rewinding speed control panel.

Casella Computer
HY-TURB-M-110-400 Pipe Sizes

Largest diameters on all major connection pipes to save energy.

HY-TURB-M-110-400 double inlet

1. Strong Double Water Inlet

2.Flexible hose connection to reduce vibrations

HY-TURB-M-110-400-Drum

Big Cassella Quality Drum

HY-TURB-M-110-400-drum-support

Support for Big Drum

HY-TURB-M-110-400-Trolley

Cassella Trolley

HY-TURB-M-110-400-fron-fixingHY-TURB-M-110-400-front-lift

Front tow connection and manual brackets

HY-TURB-S-75-300-Wheel

Wide wheels for maximum stability

Casella label
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0
