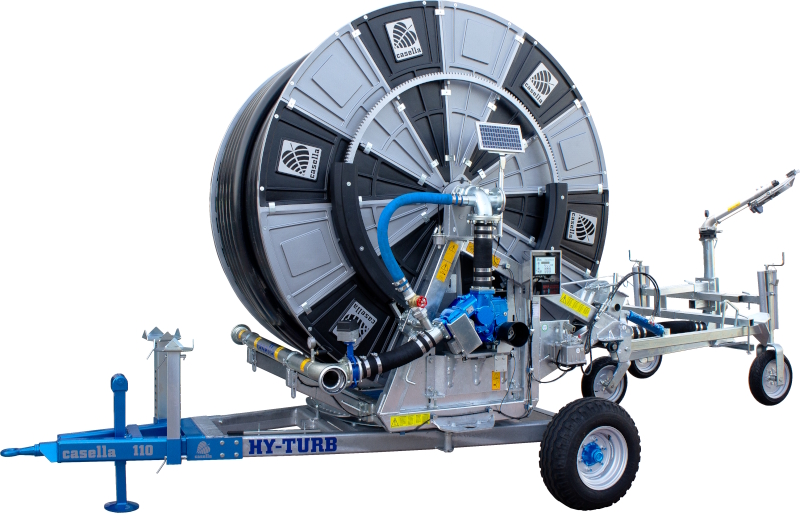

Casella HY-TURBINE M 110/400 Hard Hose Irrigator

Best price & quality guarantee! Cutting-edge technology hard hose travelling irrigator, easy to use, efficient, durable, high volume - wide range irrigation.

Hose Length
:
400 m
Hose Diameter
:
110 mm
Hose Thickness
:
8.96 mm
Working Pressure
:
70 - 100 psi
Water Flow
:
650 - 1250 l/min
Effective Spray Width (Diameter)
:
90 - 100 m
Total Irrigated Area
:
450 X 700 m = 315,000 m² (31 Hectare) in 7 days
Sprinkler
:
DuCaR Green 150
Weight
:
3800 kg
Mechanism
:
4-Speed Gear Box directly integrated to turbine
Rewind Speed Control
:
Solar-Powered Hydro Computer 260
Call for pricing
Manufacturer: Casella
SKU: HY-TURB M
In stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

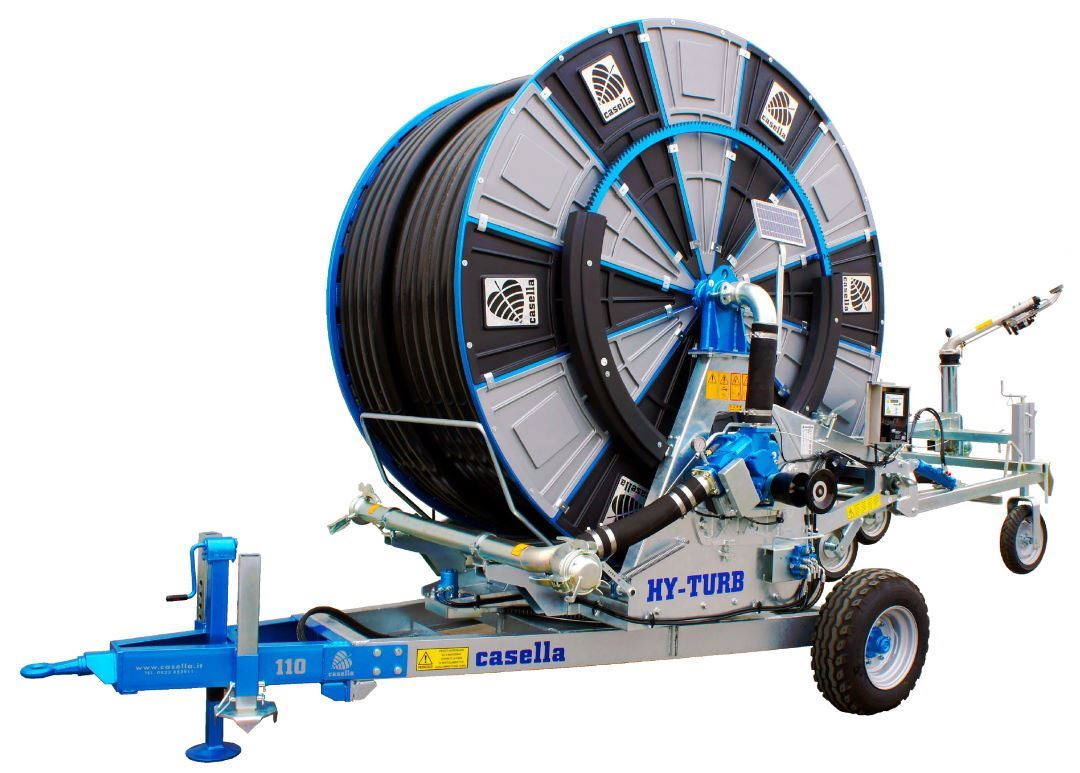

CASELLA Hard Hose Irrigator HY-TURBINE M 110/400

Applications

Agriculture: Medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Hot dip galvanised chassis
  • Travel shut-off mechanism
  • High efficient turbine
  • 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control
  • Solar energy powered computer for adjusting the rewinding speed
  • Hydraulic rotation of upper frame (360°) with tractor connection
  • Hydraulic lift for sprinkler trolley
  • Trolley with 3 Iron Wheels
  • Flexible hose Ø80 for water inlet
  • Double (two sides) water inlets
  • Tyres : 10.0 / 80-12
  • Mechanical front brackets
  • Joint for PTO drive shaft
  • Water Flow : 650 - 1250 l/min
  • Comes with Ducar Green 150 or Sime Reflex Sprinkler Head
  • Excellent Water Uniformity
  • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement : The Casella HY-TURB-M can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Made in Italy

The state of art turbine-gearbox mechanism with built-in bypass and flanged directly to a gearbox represents a significant advance in hose reel irrigators drive system and makes the system very reliable form a performance point of view.

The turbine is made with a special aluminium alloy and machined using automatic machine tools. The turbine-gearbox system has eliminated the transmission belt and the external bypasses. However, in addtion to the internal by-pass, the machine has also an external by-pass line to be optionally used in high volume water applications.

The turbine is connected directly to the gearbox and the bypass is internal. This keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Every machine is complete with its manuals and instruction stickers, spare parts lists and performance sheets to make the end user run the machine very easily by themselves.

CASELLA Hard Hose Irrigator HY-TURBINE M 110/400

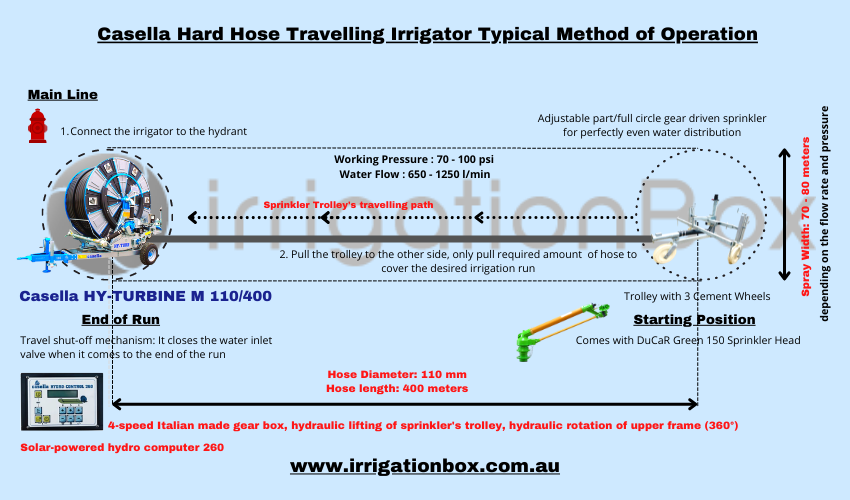

Casella-M-Turbine-Typical-Method-of-Operation







Casella Turbine

CASELLA Turbine

Turbine driven hard hose irrigators produce the the power reqired to rewind the hose reel by using
the water flow going through a turbine. Hence why efficiency of the turbine is crucial to run the irrigator.

Casella's turbine is directly integrated to the gearbox to minimise the power loss between the turbine and gearbox.

Also, its by-pass mechanism specifically designed to handle water flow rate between 600 and 1250 l/min with minimum friction loss.

The gear box is directly connected with turbine and ring gear with ultimate technology in order to provide minimum pressure loss and enhanced performance for the hose reel.

The turbine's cap can be easily removed to clean if there is any solid material in the housing.

The highly efficient and durable 4-speed gearbox has manual break system that will be used during hose unrolling process and easy to use gear shift mechanism.

The water flow adjustment in the turbine is controlled by an electric motor which is constantly operated by the machine's computer. It seamlessly controls the water flow rate in the tubine based on the desired run speed of the irrigator.

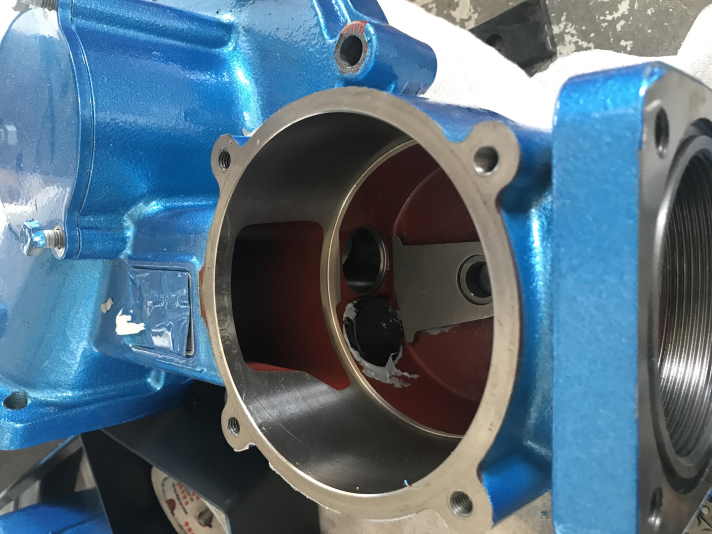

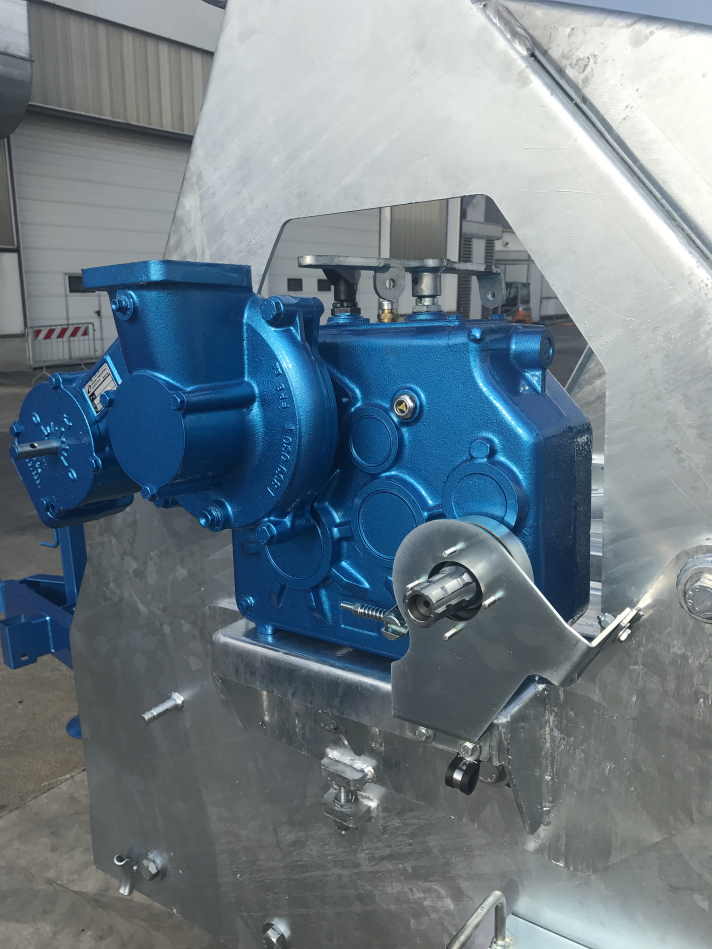

HY-TURB-M-110-400-Gearbox-Turbine

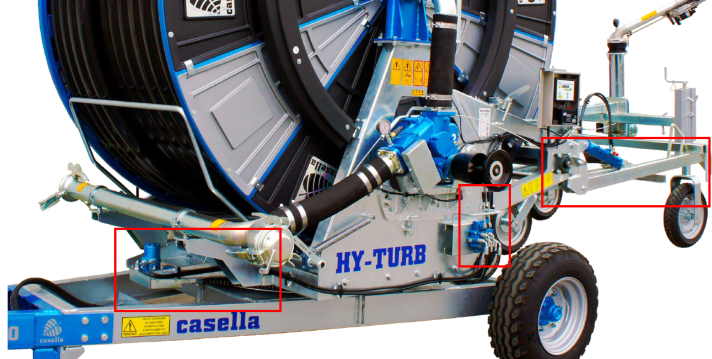

Casella Hydraulic Lift
Hydraulic lifting/rotation system (connected to the tractor) for lifting up the trolley and rotating the hose reel.

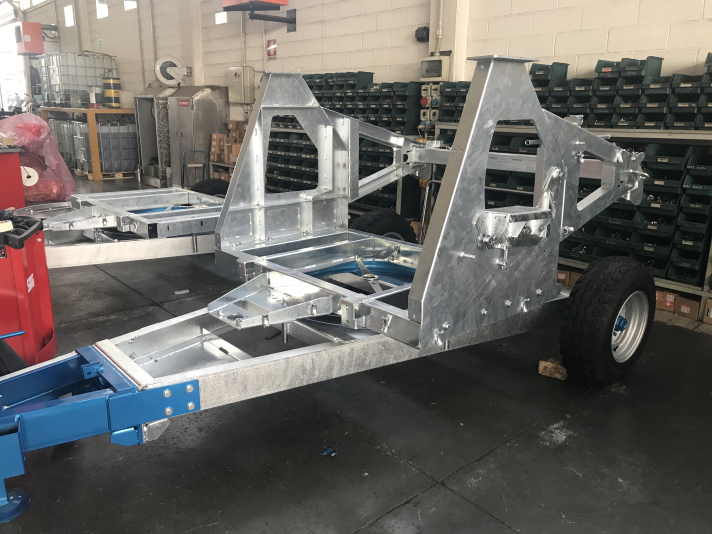

World's strongest hard hose irrigator frame

World's strongest hard hose irrigator frame with no plastic covers!

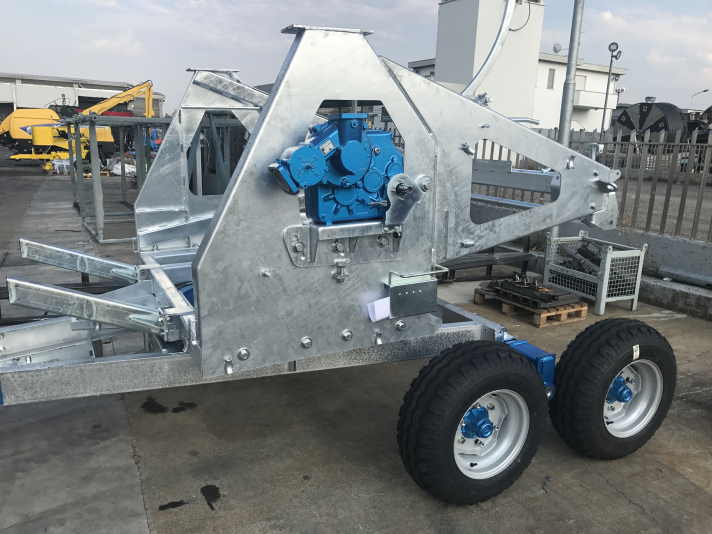

World's strongest hard hose irrigator frame with four wheels

World's strongest hard hose irrigator frame with four wheels.

Casella Hydro Control 260 Computer System

Solar energy powered rewinding speed control from 5 to 100 m/h.
During irrigation the back-lit display shows: irrigator recovery speed in m/h, remaining length to be rewound, remaining time to the end of irrigation.

Hydro Control 260 computer system allows you to pause rewinding the hose reel at the beginning or end of the run.

Also, it closes the inlet valve by controling its electric motor at the end of the run. This auto water shut-off mechanism cuts the water slowly in 4 minutes. This system requires pressure sensor on your pump. Otherwise, the functionality can be disabled for manual operation.

Casella Computer

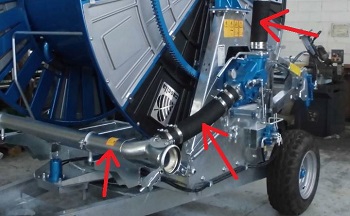

HY-TURB-M-110-400 Pipe Sizes

The largest diameters on all major connection pipes of the irrigator to save energy.

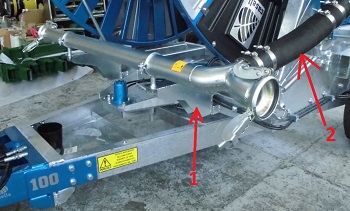

HY-TURB-M-110-400 double inlet

1. Large Double Water Inlet with highly strong support bars.

2.Flexible hose connection to reduce vibrations

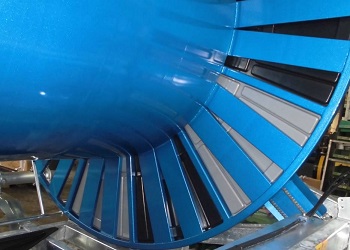

HY-TURB-M-110-400-Drum

Big Casella quality drum consists of single piece sheet metal in the centre and strong side tabular bars. One piece sheet metal in the centre of the drum is crucial for the life span of the hose.

HY-TURB-M-110-400-drum-support

Strong support bar with bearings for the hose reel

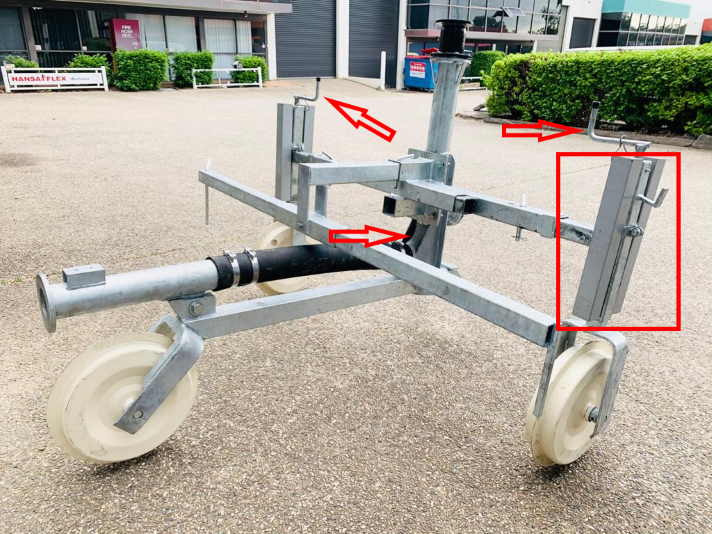

HY-TURB-M-110-400-Trolley

Hight and width adjustable sprinkler trolley with rubber or cement filled steel wheels.

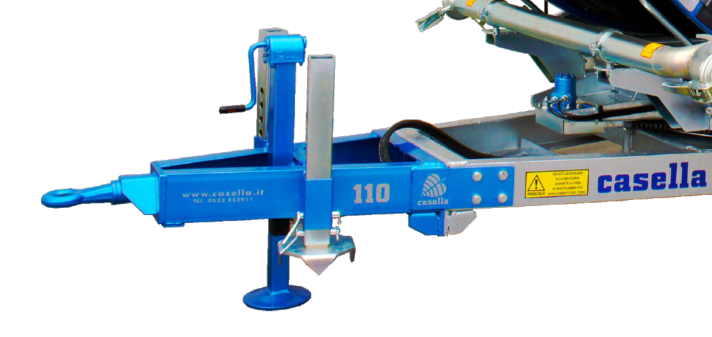

HY-TURB-M-110-400-tow-bar

Front tow bar connection with two support brackets on both sides. This strong tow bar comes with manual or hydraulic lifting jack.

HY-TURB-S-75-300-Wheel

Wide wheels for maximum stability

Casella label
Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0
