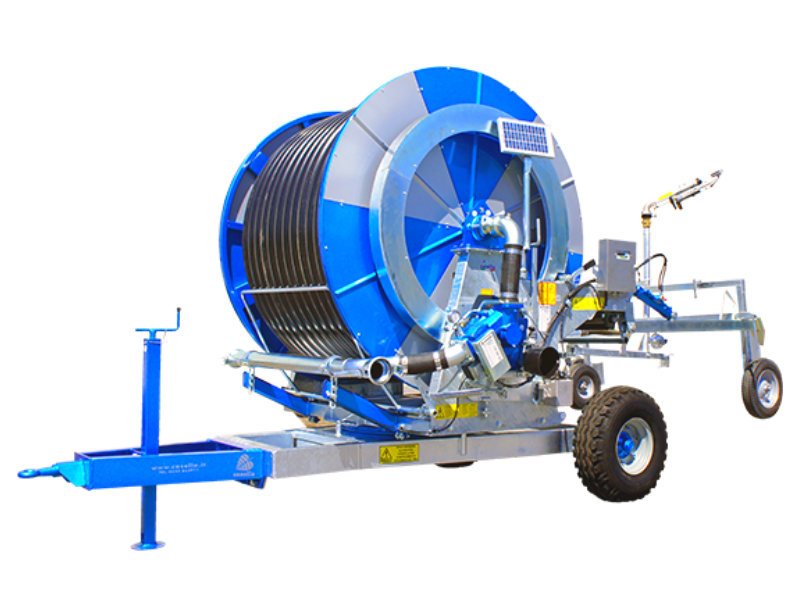

Casella HY-TURBINE S 82/320 Hard Hose Irrigator

SKU: HY-TURB S 82/320
Availability: 2 in stock
Manufacturer: Casella

Do not buy a hard hose irrigator before comparing it with Casella's quality & efficiency! Best price guarantee, easy to use, efficient, durable, medium range irrigator.

Hose Length
:
320 m
Hose Diameter
:
82 mm
Hose Thickness
:
6.4 mm
Working Pressure
:
70 - 100 psi
Water Flow
:
400 - 900 l/min
Effective Spray Width (Diameter)
:
70 - 80 m
Total Irrigated Area
:
340 X 560 m = 190,400 m² (19 Hectare) in 7 days
Sprinkler
:
DuCaR JET 50 or Sime Royal
Weight
:
2100 kg
Mechanism
:
4-Speed Gear Box directly integrated to turbine
Rewind Speed Control
:
Solar-Powered Hydro Computer 160
Call for pricing

CASELLA Hard Hose Irrigator HY-TURBINE S 82/320

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Hot dip galvanised chassis
  • Travel shut-off mechanism
  • Highly efficient turbine
  • 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control
  • Solar energy powered computer for adjusting the rewinding speed
  • 270° Manual Rotation of Upper Frame
  • Hydraulic lifting of the sprinkler trolley
  • Trolley with 3 rubber wheels
  • Flexible Hose Ø80 for Water Inlet
  • Tyres : 10.0 / 80-12
  • Joint for PTO drive shaft
  • Water Flow : 400 - 900 l/min
  • Comes with Ducar Jet 50 or Sime Royal Sprinkler Head
  • Excellent Water Uniformity
  • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement : The Cassella HY-TURB-S can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Made in Italy



 Download Casella Quality Comperison Document

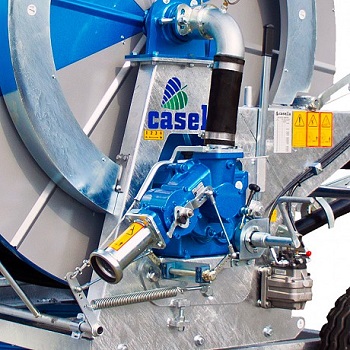

Casella Turbine

CASELLA Turbine

This type of machines picks the power necessary
to the hose recovery by exploiting
the flow of water through a turbine: Two solutions
are available:

This type of machines picks the power necessary to the hose recovery by exploiting the flow of water through a turbine: Two solutions are available:


1 - The classical turbine which has been used over 15 years; large diameter and solid aluminium alloy body and bronze impellers with closed blades. Both components have been precision engineered by numerical control lathe for accurate coupling and minimization of pressure losses. Stainless steel shaft with Widia seal ensure a longer life even in the presence of sand and other impurities.


2 - New volumetric turbine conceived for operation with even lower pressure losses and recommended flows over 50 to 60 m3/h.


The construction is in die-cast aluminium processed on CNC centre with stainless steel shafts and Widia seal, for operation with electronic compensation for the LT-LLT-LLTS models.

The gear box is directly connected with turbine and ring gear with ultimate technology in order to provide minimum pressure loss and enhanced performance for the hose reel. HY-TURB-S-75-300-Turbine

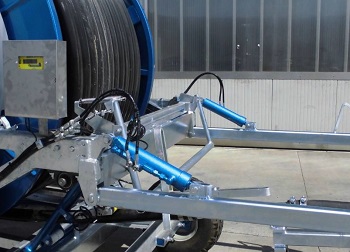

Casella Hydraulic Lift  Hydraulic pump and lifting system for trolley.

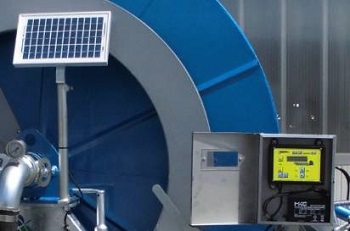

Casella Hydro Control 160

Hose re-winding control 5 to 250 m/h.
During irrigation the back-lit display shows:
irrigator recovery speed in m/h, remaining
length to be rewound, remaining time to the
end of irrigation.

Solar energy powered rewinding speed control panel.

Casella Computer

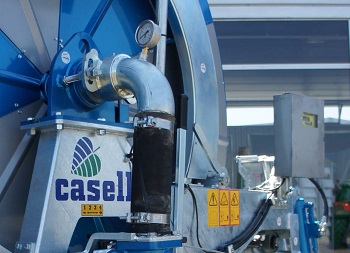

HY-TURB-S-75-300 Reel Connection

Large curves and meticulous care in the details.

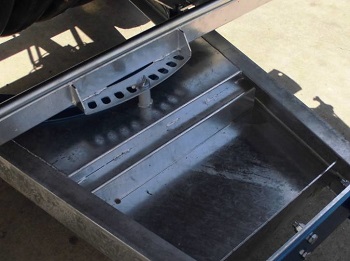

HY-TURB-S-75-300 rotation

Upper body 270° rotation mechanism.

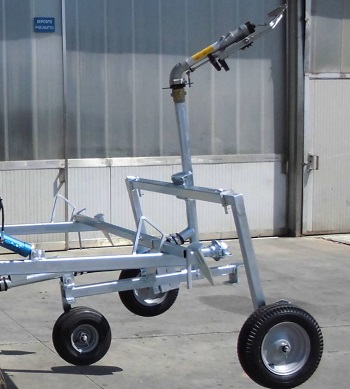

HY-TURB-S-75-300-Trolley

3 Wheels Trolley with front rotating wheel provides maximum stability.

HY-TURB-S-75-300-front-joint

Front joint to emty the PE pipe

HY-TURB-S-75-300-Wheel

Wide wheels for maximum stability

Casella label



Technical Specifications of DuCaR JET 50 Sprinkler Head

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
14 0.55 3 44 29 95 246,7 14,8 65 2640 0,65 5,6
14 0.55 4 56 32 105 286,7 17,2 76 3215 0,79 5,3
14 0.55 5 70 34 112 315 18,9 83 3629 0,90 5,2
16 0.62 3 44 30 98 308,3 18,5 81 2826 0,70 6,5
16 0.62 4 56 34 112 358,3 21,5 95 3629 0,90 5,9
16 0.62 5 70 35 115 391,7 23,5 103 3846 0,95 6,1
18 0,70 3 44 32 105 390 23,4 103 3215 0,79 7,3
18 0.70 4 56 35 115 445 26,7 118 3846 0,95 6,9
18 0.70 5 70 38 125 498,3 29,9 132 4534 1,12 6,6
18 0.70 6 85 41 134 553,3 33,2 146 5278 1,30 6,3
20 0.78 3 44 35 115 463,3 27,8 122 3846 0,95 7,2
20 0.78 4 56 38 125 548,3 32,9 145 4534 1,12 7,3
20 0.78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0.86 4 56 40 131 680 40,8 180 5024 1,24 8,1
22 0.86 5 70 44 144 753,3 45,2 199 6079 1,50 7,4
22 0.86 6 85 47 154 818,3 49,1 216 6936 1,71 7,1
24 0.94 5 70 46 151 886,7 53,2 234 6644 1,64 8,0
24 0.94 6 85 48 157 958,3 57,5 253 7234 1,79 7,9
24 0.94 7 100 50 164 1020 61,2 269 7850 1,94 7,8
