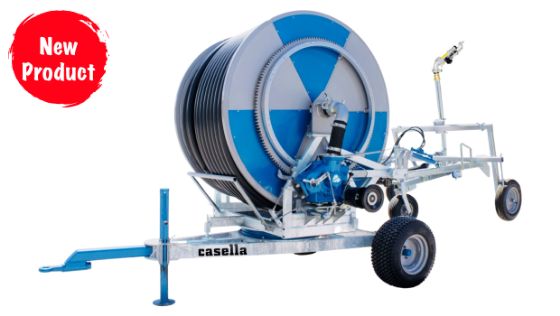

Casella HY-TURBINE XS 63/300 Hard Hose Irrigator

1 review(s) | Add your review

New arrival from Casella small range hard hose travelling irrigator.

Hose Length

300 m

Hose Diameter

63 mm

Hose Thickness

5.2 mm

Working Pressure

60 - 90 psi

Water Flow

200 - 400 l/min

Effective Spray Width (Diameter)

60 - 70 m

Total Irrigated Area

330 X 420 m = 138,600 m² (13.8 Hectare) in 7 days

Sprinkler

DuCaR JET 50

Weight

1440 kg

Mechanism

4-Speed Gear Box directly integrated to turbine

Rewind Speed Control

Manual Valve

Call for pricing

Manufacturer: Casella

SKU: HY-TURB XS 63/300

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

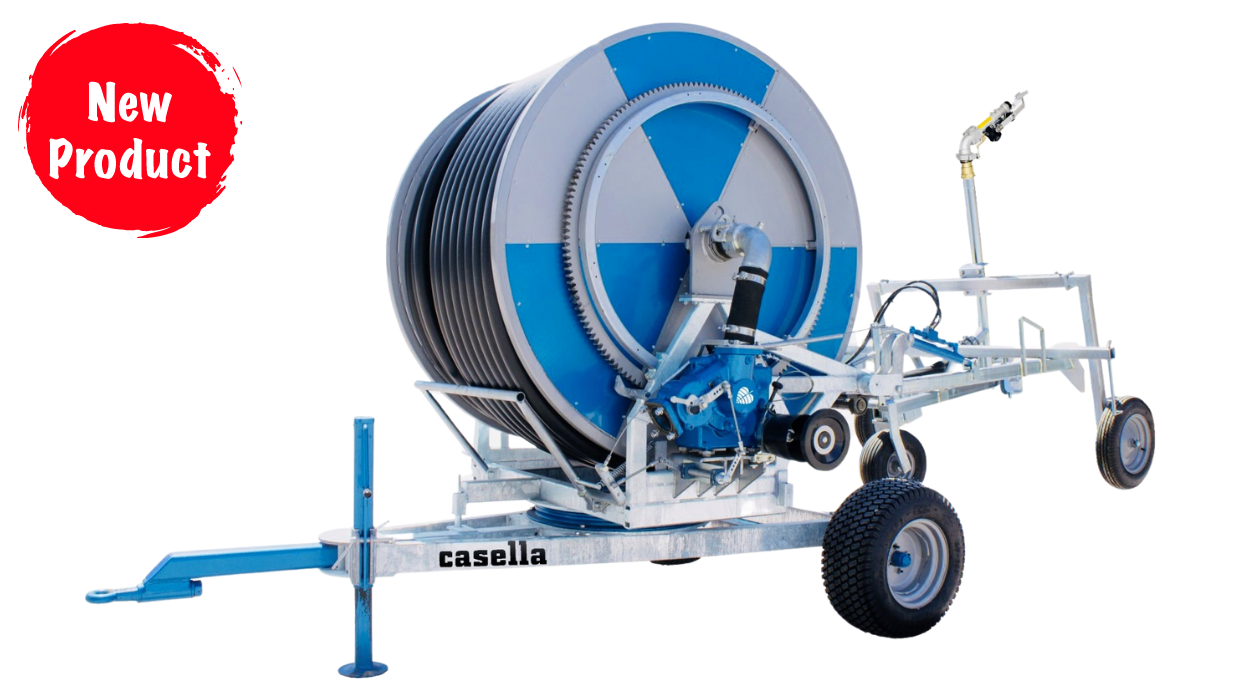

CASELLA Hard Hose Irrigator HY-TURBINE XS 63/300

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

Heavy duty design
Hot dip galvanised chassis
Travel shut-off mechanism
Highly efficient turbine
4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
Manual speed control
270° Manual Rotation of Upper Frame
Hydraulic lifting of the sprinkler trolley
Trolley with 3 rubber wheels
Flexible Hose Ø63 for Water Inlet
Tyres : 10.0 / 80-12
Joint for PTO drive shaft
Water Flow : 200 - 400 l/min
Comes with Ducar Jet 50 Sprinkler Head
Excellent Water Uniformity
Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
Easy and safe operation
Very low labour requirement : The Cassella HY-TURB-XS can easily be operated by one man and the labour consists mostly of driving a tractor.
Made in Italy

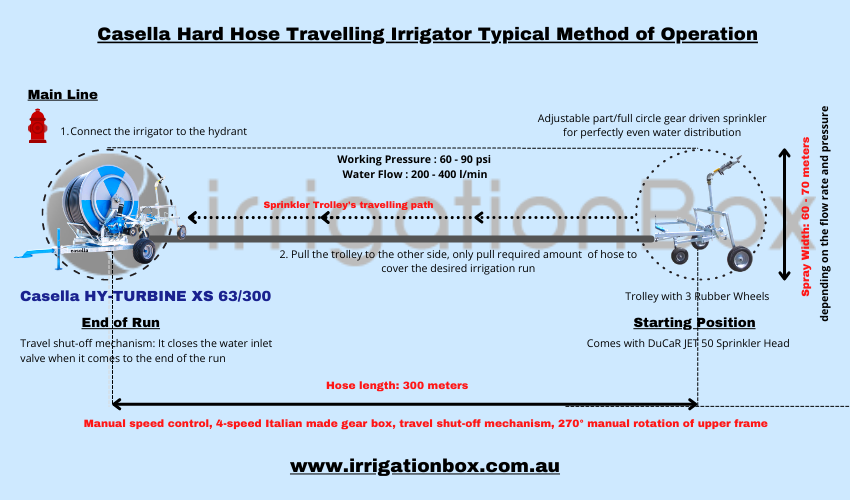

CASELLA HY-TURBINE XS 63/300 Typical Method of Operation

Download Catalog

Download Casella Quality Comparison Document

Download Casella Hard Hose Irrigators Rainfall Chart

	CASELLA Turbine Turbine driven hard hose irrigators produce the the power reqired to rewind the hose reel by using the water flow going through a turbine. Hence why efficiency of the turbine is crucial to run the irrigator. Casella's turbine is directly integrated to the gearbox to minimise the power loss between the turbine and gearbox. Also, its by-pass mechanism specifically designed to handle water flow rate between 600 and 1250 l/min with minimum friction loss.
The gear box is directly connected with turbine and ring gear with ultimate technology in order to provide minimum pressure loss and enhanced performance for the hose reel. The turbine's cap can be easily removed to clean if there is any solid material in the housing. The highly efficient and durable 4-speed gearbox has manual break system that will be used during hose unrolling process and easy to use gear shift mechanism. The water flow adjustment in the turbine is controlled by an electric motor which is constantly operated by the machine's computer. It seamlessly controls the water flow rate in the tubine based on the desired run speed of the irrigator.
Hydraulic lifting system (connected to the tractor) for lifting up the trolley.	World's strongest hard hose irrigator frame with no plastic covers!
Big Casella quality drum consists of single piece sheet metal in the centre and strong side tabular bars. One piece sheet metal in the centre of the drum is crucial for the life span of the hose.	Strong support bar with bearings for the hose reel
Width adjustable sprinkler trolley with 3 rubber wheels.	Front tow bar connection with manual lifting jack.
Wide wheels for maximum stability

Technical Specifications of DuCaR JET 50 Sprinkler Head

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	3	44	29	95	246,7	14,8	65	2640	0,65	5,6
14	0.55	4	56	32	105	286,7	17,2	76	3215	0,79	5,3
14	0.55	5	70	34	112	315	18,9	83	3629	0,90	5,2
16	0.62	3	44	30	98	308,3	18,5	81	2826	0,70	6,5
16	0.62	4	56	34	112	358,3	21,5	95	3629	0,90	5,9
16	0.62	5	70	35	115	391,7	23,5	103	3846	0,95	6,1
18	0,70	3	44	32	105	390	23,4	103	3215	0,79	7,3
18	0.70	4	56	35	115	445	26,7	118	3846	0,95	6,9
18	0.70	5	70	38	125	498,3	29,9	132	4534	1,12	6,6
18	0.70	6	85	41	134	553,3	33,2	146	5278	1,30	6,3
20	0.78	3	44	35	115	463,3	27,8	122	3846	0,95	7,2
20	0.78	4	56	38	125	548,3	32,9	145	4534	1,12	7,3
20	0.78	5	70	42	138	616,7	37	163	5538	1,37	6,7
22	0.86	4	56	40	131	680	40,8	180	5024	1,24	8,1
22	0.86	5	70	44	144	753,3	45,2	199	6079	1,50	7,4
22	0.86	6	85	47	154	818,3	49,1	216	6936	1,71	7,1
24	0.94	5	70	46	151	886,7	53,2	234	6644	1,64	8,0
24	0.94	6	85	48	157	958,3	57,5	253	7234	1,79	7,9
24	0.94	7	100	50	164	1020	61,2	269	7850	1,94	7,8
