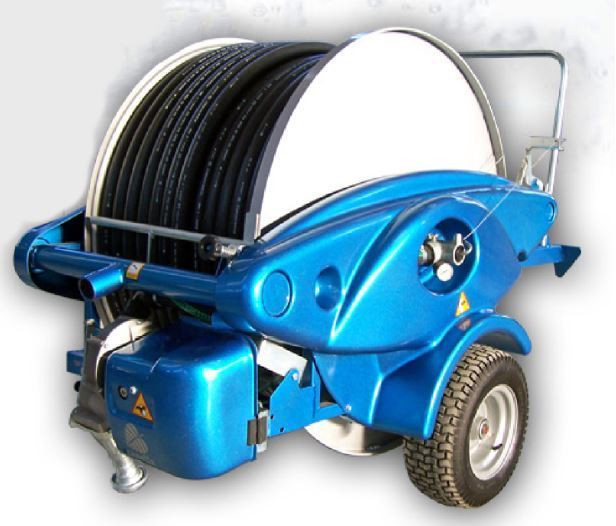

Casella Garden 50/170 Hard Hose Reel Irrigator Casella Garden 50/170 Hobby Farm Hard Hose Irrigator Casella Garden 50/170 Hard Hose Irrigator Dimensions

Casella Garden 50/160 Hard Hose Irrigator

1 review(s) | Add your review

Compact, easy to use small hard hose irrigator perfect for hobby farms and horse arenas.

Hose Length
:
160 m
Hose Diameter
:
50 mm
Hose Thickness
:
4.3 mm
Working Pressure
:
45 - 90 psi
Water Flow
:
90 - 280 l/min
Effective Spray Width (Diameter)
:
36 - 50 m
Total Irrigated Area
:
195 X 350 m = 68,250 m² (6.8 Hectare) in 7 days
Sprinkler
:
DuCaR Atom 28
Weight
:
285 kg
Mechanism
:
Gear Box directly integrated to turbine
Rewind Speed
:
10 - 40 m/h
Call for pricing
Manufacturer: Casella
SKU: Garden 50/160
Out of stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

CASELLA Garden 50/160 Hard Hose Irrigator

Applications

Agriculture: Small crops and hobby farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Sprinkler trolley with quick unhooking mechanism
  • Travel shut-off mechanism
  • Highly efficient turbine and gear-box
  • Minimum pressure required 3.5 Bar, maximum 8 Bar.
  • Sensitive speed control between 10 to 40 m/h
  • Coaxial reducer to rewind the hose with hydraulic turbine.
  • Trolley with 2 rubber wheels
  • Compact dimensions, optimum weight balancing on wheels
  • Adjustable sector irrigator with nozzles of different diameters
  • Automatic stop at the end of the work
  • Water Flow : 90 - 280 l/min
  • Comes with DuCar Atom 28 Sprinkler Head
  • Excellent Water Uniformity
  • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement : The Casella Garden 50/160 can easily be operated by one man and the labour consists mostly of driving a 4-wheeled bike.
  • Made in Italy



Download Catalog
Download Casella Quality Comparison Document
Download Casella Hard Hose Irrigators Rainfall Chart



Technical Specifications of DuCaR Atom 28 Sprinkler Head



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
