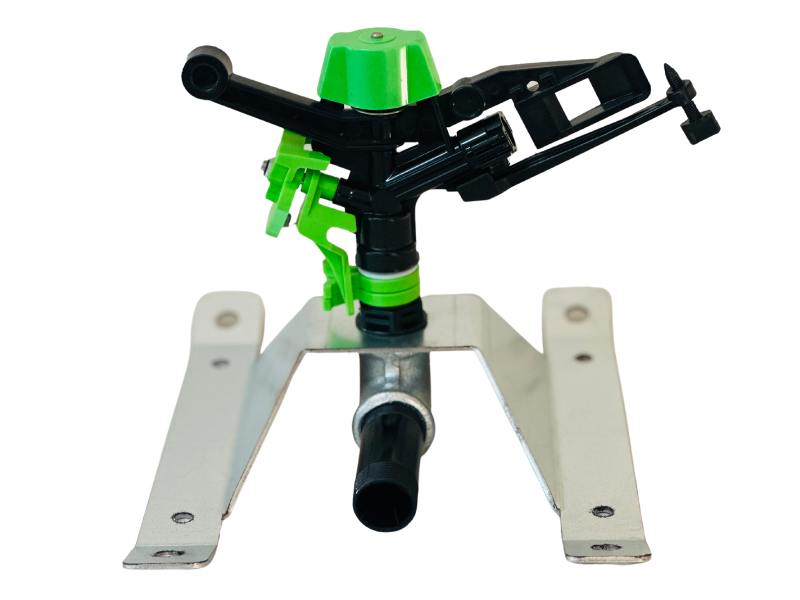

DuCaR Atom 14 PC Sprinkler with 3/4" Skid Base

Perfect for hobby gardens and residential, the new skid base allows for quick and easy transportation!


Water Input
:
3/4" Male BSP

Working Pressure
:
29 - 64 psi

Water Flow
:
15 - 32.5 l/min

Shooting Radius
:
13 - 16 m

Free Nozzles
:
4, 4.5, 5 mm

Body Angle
:
25°

Box Dimensions
:
25x21x6 cm

Weight
:
1.5 kg

Skid Water Inlet
:
3/4" Female BSP

Sprinkler Housing
:
Plastic

Made in
:
Turkey
$53.50
Manufacturer: DuCaR Sprinklers
SKU: ATM14PC-SB34
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox presents NEW DuCar Atom 14 Part Circle Sprinkler with 3/4" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy duty design it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 3/4" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!

Some unique benefits of DuCaR 3/4" Skid Base:

  • Allows for quick easy transportation
  • Works with a large range of sprinkler heads
  • Standard 3/4" male sprinkler connection fittings
  • Suitable for any type of garden hose with 3/4" female bsp fitting
  • Length: 25 cm
  • Width: 20.2 cm
  • Height: 5.8 cm
  • Weight: 1.074 kg

The DuCaR Atom 14 PC low flow sprinkler with 3/4" male bsp threaded inlet. It is a new type of  sprinkler designed for low flow rate applications and operates over a full 360 degrees or your desired angle. It was developed as a result of 3-years long R&D activities to increase the efficiency and life span of existing sprinklers in the market. TheDuCaR Atom 14 sprinkler has a special body construction which has 25body angle. It minimizes wind effect during the operation and it is made of 100% original raw material and engineering plastics that dramatically eliminates adverse effects of water and sun to serve for long years under Australian weather conditions.

Comes with 4, 4.5, and 5 mm nozzles.

The Atom 14 FC sprinkler is commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers. However, it can be a perfect choice for small hobby gardens.


Technical Specifications



Technical Specifications (DuCaR Atom 14 PC)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4mm 2 29 13 43 15 0.90 4.0 531 0.13 1.7
4mm 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4mm 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5mm 2 29 13 43 17.5 1.05 4.6 531 0.13 2.0
4.5mm 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5mm 3.0 43 13.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm 3.5 50 15 49 23.3 1.40 6.2 707 0.17 2.0
5mm 2 29 14 46 22.5 1.35 5.9 615 0.15 2.2
5mm 2.5 36 15 49 24.3 1.46 6.4 707 0.17 2.1
5mm 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5mm 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1
5mm 4.5 64 16.5 54 32.5 1.95 8.6 855 0.21 2.3



IrrigationBox presents NEW DuCar Atom 14 Part Circle Sprinkler with 3/4" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy duty design it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 3/4" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!

Some unique benefits of DuCaR 3/4" Skid Base:

  • Allows for quick easy transportation
  • Works with a large range of sprinkler heads
  • Standard 3/4" male sprinkler connection fittings
  • Suitable for any type of garden hose with 3/4" female bsp fitting
  • Length: 25 cm
  • Width: 20.2 cm
  • Height: 5.8 cm
  • Weight: 1.074 kg

The DuCaR Atom 14 PC low flow sprinkler with 3/4" male bsp threaded inlet. It is a new type of  sprinkler designed for low flow rate applications and operates over a full 360 degrees or your desired angle. It was developed as a result of 3-years long R&D activities to increase the efficiency and life span of existing sprinklers in the market. TheDuCaR Atom 14 sprinkler has a special body construction which has 25body angle. It minimizes wind effect during the operation and it is made of 100% original raw material and engineering plastics that dramatically eliminates adverse effects of water and sun to serve for long years under Australian weather conditions.

Comes with 4, 4.5, and 5 mm nozzles.

The Atom 14 FC sprinkler is commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers. However, it can be a perfect choice for small hobby gardens.


Technical Specifications



Technical Specifications (DuCaR Atom 14 PC)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4mm 2 29 13 43 15 0.90 4.0 531 0.13 1.7
4mm 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4mm 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5mm 2 29 13 43 17.5 1.05 4.6 531 0.13 2.0
4.5mm 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5mm 3.0 43 13.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm 3.5 50 15 49 23.3 1.40 6.2 707 0.17 2.0
5mm 2 29 14 46 22.5 1.35 5.9 615 0.15 2.2
5mm 2.5 36 15 49 24.3 1.46 6.4 707 0.17 2.1
5mm 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5mm 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1
5mm 4.5 64 16.5 54 32.5 1.95 8.6 855 0.21 2.3



Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 40 l/min
Maximum Water Flow 180 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
Box Dimension 19.5x 20x45 cm
