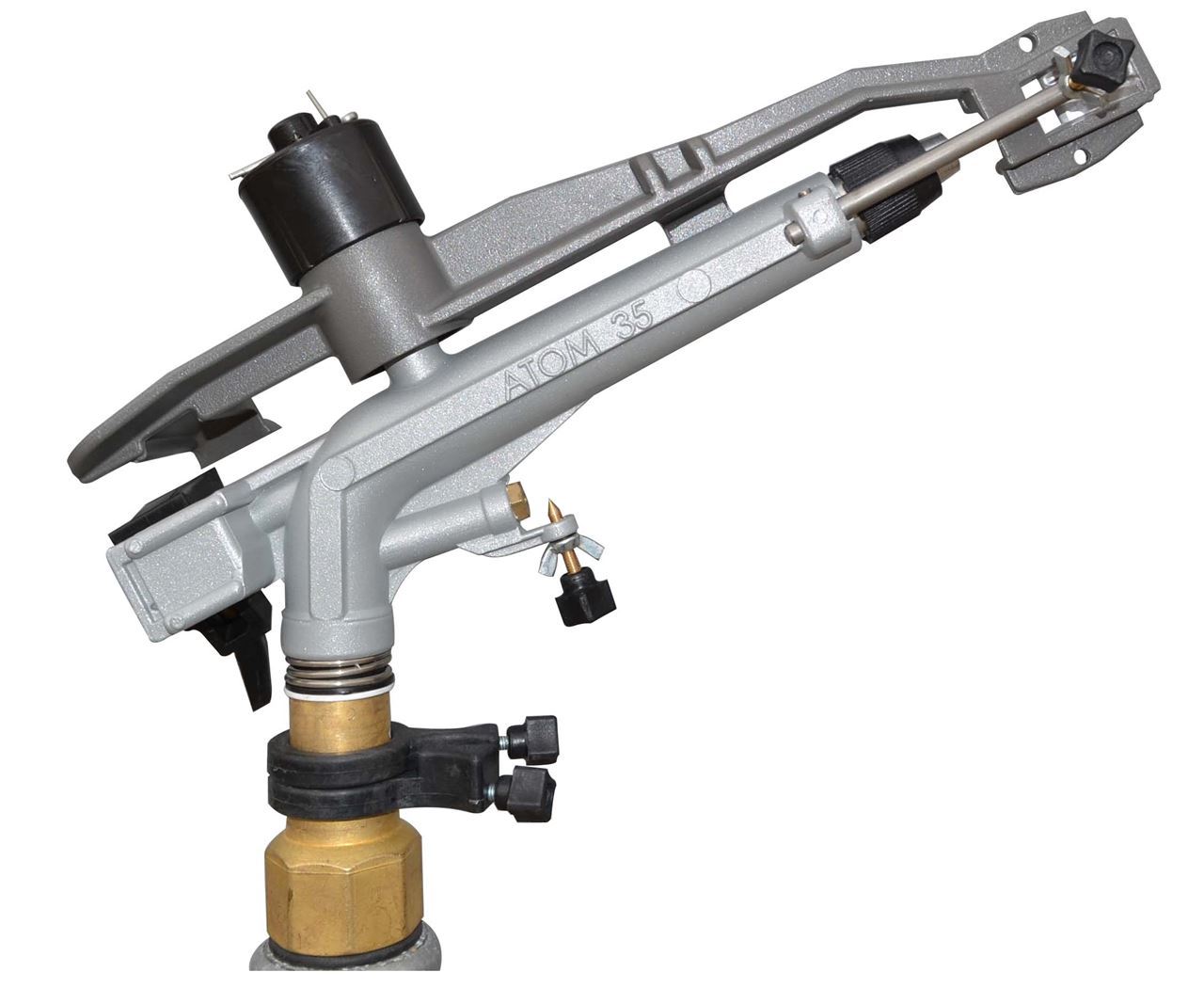

DuCaR Atom 35 Metal

SKU: Atom35
Delivery date: 3-10 business days
Manufacturer: DuCaR Sprinklers

Double-nozzle, long throw range, metal & brass, big irrigation sprinkler.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 85 psi

Water Flow
:
152 - 533 l/min

Shooting Radius
:
20 - 35 m

Free Nozzles
:
12, 14, 16, 18 mm

Body Angle
:
27°

Box Dimensions
:
45x35x12 cm

Weight
:
2.5 kg

Sprayers
:
2

Material
:
Cast-Iron, Aluminium & Brass
US $158.00
US $201.00

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 35 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 35 Metal sprinkler:

  • Comes with 3 different METAL nozzles (14, 16, 18 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 70m diameter!
  • Lays down 9.3 to 32.5 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 20,0 66 152 9,3 41 1256 0,31 7,4
12 .47 3 44 24,0 79 182 11,2 49 1809 0,45 6,2
12 .47 4 56 27,0 89 211 13,0 57 2289 0,57 5,7
12 .47 5 70 28,0 92 236 14,2 63 2462 0,61 5,2
14 .55 2 29 21,0 69 195 12,1 53 1384 0,34 8,4
14 .55 3 44 25,0 82 239 14,5 64 1962 0,48 7,4
14 .55 4 56 29,0 95 277 16,9 74 2640 0,65 6,4
14 .55 5 70 30,0 98 309 18,9 83 3017 0,75 6,3
16 .62 2 29 22,0 72 247 15,2 67 1519 0,38 10,0
16 .62 3 44 26,0 85 303 18,9 83 2123 0,52 8,9
16 .62 4 56 30,0 98 351 21,5 95 2826 0,70 7,5
16 .62 5 70 32,0 105 391 24,0 106 3215 0,79 6,9
18 .70 3 44 27,0 89 378 23,1 102 2461 0,61 9,4
18 .70 4 56 30,0 98 436 27,0 119 3017 0,75 8,9
18 .70 5 70 34,0 112 487 30,1 133 3629 0,90 8,1
18 .70 6 85 35,0 115 533 32,5 143 3847 0,95 7,9

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 35 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 35 Metal sprinkler:

  • Comes with 3 different METAL nozzles (14, 16, 18 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 70m diameter!
  • Lays down 9.3 to 32.5 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 20,0 66 152 9,3 41 1256 0,31 7,4
12 .47 3 44 24,0 79 182 11,2 49 1809 0,45 6,2
12 .47 4 56 27,0 89 211 13,0 57 2289 0,57 5,7
12 .47 5 70 28,0 92 236 14,2 63 2462 0,61 5,2
14 .55 2 29 21,0 69 195 12,1 53 1384 0,34 8,4
14 .55 3 44 25,0 82 239 14,5 64 1962 0,48 7,4
14 .55 4 56 29,0 95 277 16,9 74 2640 0,65 6,4
14 .55 5 70 30,0 98 309 18,9 83 3017 0,75 6,3
16 .62 2 29 22,0 72 247 15,2 67 1519 0,38 10,0
16 .62 3 44 26,0 85 303 18,9 83 2123 0,52 8,9
16 .62 4 56 30,0 98 351 21,5 95 2826 0,70 7,5
16 .62 5 70 32,0 105 391 24,0 106 3215 0,79 6,9
18 .70 3 44 27,0 89 378 23,1 102 2461 0,61 9,4
18 .70 4 56 30,0 98 436 27,0 119 3017 0,75 8,9
18 .70 5 70 34,0 112 487 30,1 133 3629 0,90 8,1
18 .70 6 85 35,0 115 533 32,5 143 3847 0,95 7,9
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 85 psi (6 bar)
Minimum Required Water Flow 150 l/min
Maximum Water Flow 550 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 30 - 40 m
Box Dimension 45x35x12 cm
Nozzles 12, 14, 16, 18 mm
Weight 2.5 kg
