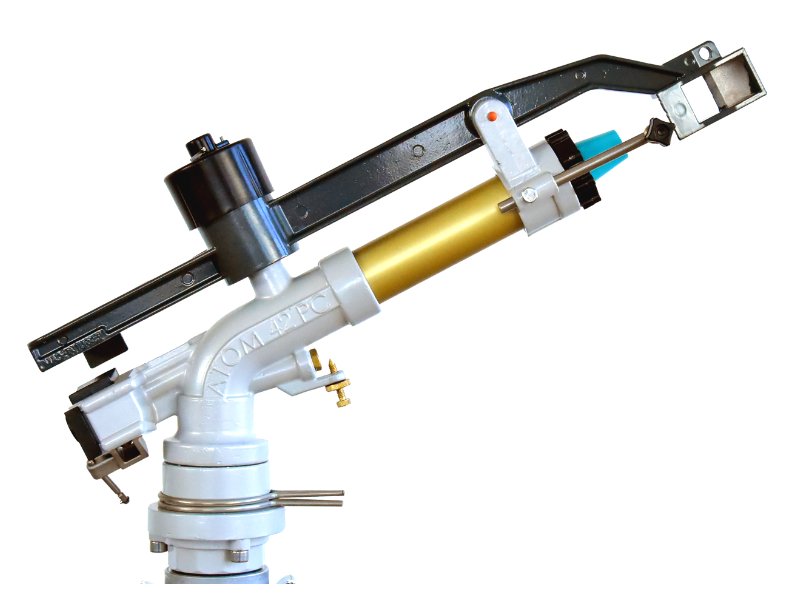

DuCaR Atom 42 Metal PC

Be the first to review this product

High flow & long throw ranges, full circle and part circle impact irrigation sprinkler.

Water Input

2" Female BSP

Working Pressure

29 - 85 psi

Water Flow

195 - 850 l/min

Shooting Radius

22 - 44 m

Free Nozzles

14, 16, 18, 20, 22, 24 mm

Body Angle

28°

Box Dimensions

55x34x12 cm

Weight

3.5 kg

Sprayers

Material

Cast-Iron, Aluminium & Brass

Made in

Turkey

Price: US $390.00

Old price: US $521.00

Manufacturer: DuCaR Sprinklers

SKU: Atom42PC

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+US $228.00]
DuCaR 2" 4-Legged Connection Stand with Quick Coupling [+US $228.00]

Qty:

+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 42 PC Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

Comes with 14, 16, 18, 20, 22, 24 mm nozzles
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 90m diameter!
Lays down 11 to 51 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	.55	2	29	22	72	195	11.7	52	1520	0,38	7,7
14	.55	3	44	28	92	239	14.3	63	2462	0,61	5,8
14	.55	4	56	30	98	277	16.6	73	2826	0,70	5,9
14	.55	5	70	33	108	309	18.5	81	3419	0,84	5,4
16	.63	2	29	24	79	247	14.8	65	1809	0,45	8,2
16	.63	3	44	30	98	303	18.2	80	2826	0,70	6,4
16	.63	4	56	33	108	351	21.0	92	3419	0,84	6,1
16	.63	5	70	35	115	391	23.4	103	3847	0,95	6,1
18	.71	3	44	30	98	378	22.7	100	2826	0,70	8,0
18	.71	4	56	33	108	436	26.2	115	3419	0,84	7,7
18	.71	5	70	36	118	487	29.2	129	4069	1.01	7,2
20	.79	3	44	31	102	460	27.6	122	3018	0.75	9,1
20	.79	4	56	35	115	532	31.9	140	3847	0.95	8,3
20	.79	5	70	40	131	594	35.6	157	5024	1,24	7,1
22	.86	4	56	39	128	680	40.8	180	4776	1,18	8,5
22	.86	5	70	42	138	750	45	198	5539	1,37	8,1
22	.86	6	85	44	144	817	49	216	6079	1,50	8,1
24	.95	3	44	37	121	667	40	176	4299	1,06	9,3
24	.95	4	56	40	131	767	46	203	5024	1,24	9,2
24	.95	5	70	44	144	850	51	225	6079	1,50	8,4

Download Catalogue

Comes with 14, 16, 18, 20, 22, 24 mm nozzles
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 90m diameter!
Lays down 11 to 51 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	.55	2	29	22	72	195	11.7	52	1520	0,38	7,7
14	.55	3	44	28	92	239	14.3	63	2462	0,61	5,8
14	.55	4	56	30	98	277	16.6	73	2826	0,70	5,9
14	.55	5	70	33	108	309	18.5	81	3419	0,84	5,4
16	.63	2	29	24	79	247	14.8	65	1809	0,45	8,2
16	.63	3	44	30	98	303	18.2	80	2826	0,70	6,4
16	.63	4	56	33	108	351	21.0	92	3419	0,84	6,1
16	.63	5	70	35	115	391	23.4	103	3847	0,95	6,1
18	.71	3	44	30	98	378	22.7	100	2826	0,70	8,0
18	.71	4	56	33	108	436	26.2	115	3419	0,84	7,7
18	.71	5	70	36	118	487	29.2	129	4069	1.01	7,2
20	.79	3	44	31	102	460	27.6	122	3018	0.75	9,1
20	.79	4	56	35	115	532	31.9	140	3847	0.95	8,3
20	.79	5	70	40	131	594	35.6	157	5024	1,24	7,1
22	.86	4	56	39	128	680	40.8	180	4776	1,18	8,5
22	.86	5	70	42	138	750	45	198	5539	1,37	8,1
22	.86	6	85	44	144	817	49	216	6079	1,50	8,1
24	.95	3	44	37	121	667	40	176	4299	1,06	9,3
24	.95	4	56	40	131	767	46	203	5024	1,24	9,2
24	.95	5	70	44	144	850	51	225	6079	1,50	8,4

Download Catalogue

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	185 l/min
Maximum Water Flow	850 l/min
Minimum Shooting Range	21 - 25 m
Maximum Shooting Range	41 - 50 m
Box Dimension	55x34x12 cm
Nozzles	12, 14, 16, 18, 20, 22 mm
Weight	3.4 kg
