DuCaR B 25 PC

3 review(s) | Add your review

SKU: B 25 PC

Delivery date: 2-3 business days

Manufacturer: DuCaR Sprinklers

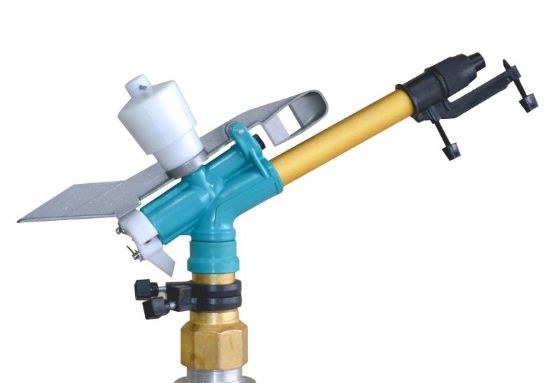

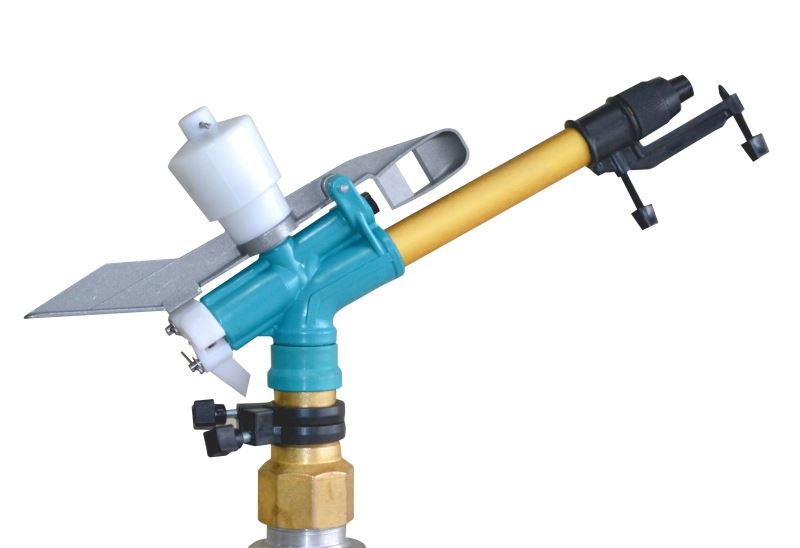

Brass housing, long throw, medium flow rates, clean water irrigation sprinkler.

Water Input

1.5" Female BSP

Working Pressure

29 - 56 psi

Water Flow

100 - 242 l/min

Shooting Radius

17 - 25 m

Free Nozzles

8, 10, 12 mm

Body Angle

27°

Box Dimensions

25x40x7 cm

Operation

Full & Part Circle

Body Material

Plastic & Aluminium

Housing

Brass

US $79.00

Make Your Sprinkler Set

DuCaR 1.5" Wheeled Sprinkler Cart [+US $209.00]
DuCaR 1.5" Tripod ECON Connection Stand [+US $122.00]
100 m, Ko-Hi Flex Red 1.5" (40mm) PVC Double Layer Lay flat Hose (10 bar pressure) [+US $324.00]

Qty:

IrrigationBox proudly presents DuCar Sprinklers to Australia and Asia Pacific! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar B25 PC is the introductory model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR B25 PC sprinkler:

BRASS Lower Body Rotation Mechanism
Full and part (angle-adjusted) circle irrigation
Comes with 3 different nozzles
2 water sprays: secondary spray rotates the sprinkler, hence why it is recommended to use with CLEAN water
Operates on pressure range between 29 to 56 psi
Irrigates up to 48m diameter
Made of composite bearing, stainless spindle and teflon speed washer
Lays down 6 to 14 tons of water per hour
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
8	.31	2	29	17,0	56	100	6,0	26	907	0,22	6,6
8	.31	3	44	19	62	121	7,25	32	1134	0,28	6,4
8	.31	4	56	21	69	142	8,5	37	1385	0,34	6,1
10	.39	2	29	18	59	130	7,8	34	1017	0,25	7,7
10	.39	3	44	21	69	160	9,6	42	1385	0,34	6,9
10	.39	4	56	23	74	185	11,1	49	1590	0,39	7,0
12	.47	2	29	19	62	168	10,10	44	1134	0,28	8,9
12	.47	3	44	22	72	207	12,40	55	1520	0,38	8,2
12	.47	4	56	25	82	242	14,50	64	1963	0,48	7,4

Overview
Specifications
Reviews
Manufacturer Info
Contact Us
Calculators

BRASS Lower Body Rotation Mechanism
Full and part (angle-adjusted) circle irrigation
Comes with 3 different nozzles
2 water sprays: secondary spray rotates the sprinkler, hence why it is recommended to use with CLEAN water
Operates on pressure range between 29 to 56 psi
Irrigates up to 48m diameter
Made of composite bearing, stainless spindle and teflon speed washer
Lays down 6 to 14 tons of water per hour
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
8	.31	2	29	17,0	56	100	6,0	26	907	0,22	6,6
8	.31	3	44	19	62	121	7,25	32	1134	0,28	6,4
8	.31	4	56	21	69	142	8,5	37	1385	0,34	6,1
10	.39	2	29	18	59	130	7,8	34	1017	0,25	7,7
10	.39	3	44	21	69	160	9,6	42	1385	0,34	6,9
10	.39	4	56	23	74	185	11,1	49	1590	0,39	7,0
12	.47	2	29	19	62	168	10,10	44	1134	0,28	8,9
12	.47	3	44	22	72	207	12,40	55	1520	0,38	8,2
12	.47	4	56	25	82	242	14,50	64	1963	0,48	7,4

Products specifications

Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	64 psi (4.5 bar)
Minimum Required Water Flow	100 l/min
Maximum Water Flow	250 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	20 - 25 m
Box Dimension	25x40x6 cm
Nozzles	8, 10, 12 mm
Weight	1.3
