Photos Uploaded by Users:

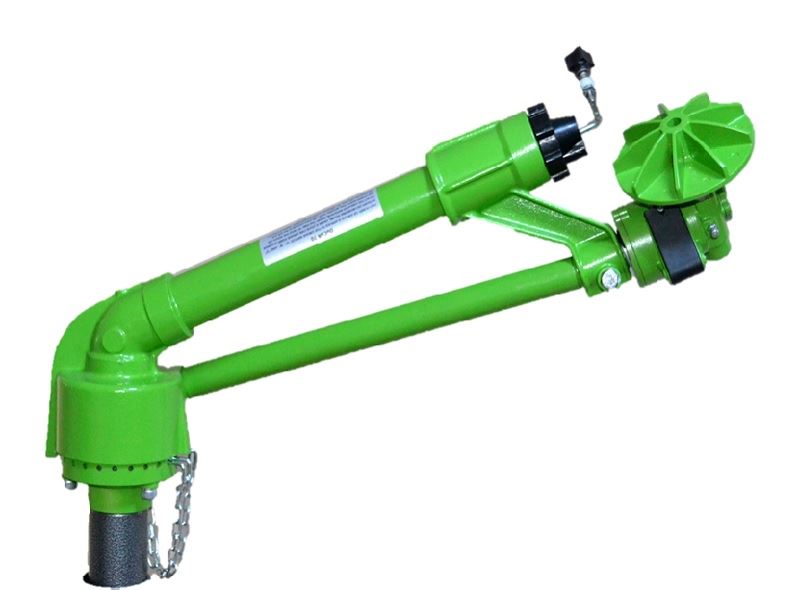

DuCaR Green 70

7 review(s) | Add your review

SKU: GRN70

Delivery date: 2-3 business days

Manufacturer: DuCaR Sprinklers

Low-Cost - Long Range & Perfect water uniformity

Water Input

1.5" Female BSP

Working Pressure

29 - 85 psi

Water Flow

108 - 532 l/min

Shooting Radius

18 - 36 m

Free Nozzles

10, 12, 14, 16, 18 mm

Body Angle

24°

Box Dimensions

21x21x71 cm

Weight

5.5 kg

Price: US $339.00

Old price: US $383.00

Make Your Sprinkler Set

DuCaR 1.5" Wheeled Sprinkler Cart [+US $199.00]
DuCaR 1.5" Tripod ECON Connection Stand [+US $116.00]
DuCaR 2" Inlet / 1.5" Outlet Quick Coupling [+US $47.00]
100 m, Ko-Hi Flex Red 1.5" (40mm) PVC Double Layer Lay flat Hose (10 bar pressure) [+US $308.00]

Qty:

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar Green 70 is a gear driven, part and full circle sprinkler which provides perfect irrigation with the performance, technology, reliability and the feature of uniform coverage at a great price!

Some unique benefits of Green 70:

Rotatable sprinkler heads with gearbox and adjustable for full or part circle coverage, featuring medium and high pressure operations (2 to 6 Bars), and high efficiency.
This model is an introduction to the economical series. Changeable nozzles for a perfect irrigation with evenly distributed water
Suitable for using in any type of delicate or rough agricultural applications; widely used especially on wheat, maize, and clover.
Makes full and semi-circle turns at the same speed;
Ideal for agricultural areas, sport fields, and mines; suitable for portable and fixed systems.
It has new type special paint; new type powder paint makes it much more durable against environmental effects.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	18	59	108	6,5	29	1017	0,25	6,4
10	.39	3	44	21	69	125	7,5	33	1385	0,34	5,4
10	.39	4	56	23	75	143	8,6	38	1661	0,41	5,2
12	.47	2	29	20	66	152	9,1	40	1256	0,31	7,2
12	.47	3	44	24	79	182	10,9	48	1809	0,45	6,0
12	.47	4	56	27	89	210	12,6	55	2289	0,57	5,5
12	.47	5	70	30	98	235	14,1	62	2826	0,70	4,99
14	.55	2	29	21	69	195	11,7	52	1385	0,34	8,45
14	.55	3	44	25	82	238	14,3	63	1963	0,48	7,3
14	.55	4	56	29	95	277	16,6	73	2641	0,65	6,3
14	.55	5	70	31	102	308	18,5	81	3018	0,75	6,1
16	.62	2	29	22	72	247	14,8	65	1520	0,38	9,7
16	.62	3	44	26	85	303	18,2	80	2123	0,52	8,6
16	.62	4	56	30	98	350	21	92	2826	0,70	7,4
16	.62	5	70	33	108	390	23,4	103	3419	0,84	6,8
18	.70	3	44	28	92	378	22,7	100	2462	0,61	9,2
18	.70	4	56	31	102	437	26,2	115	3018	0,75	8,7
18	.70	5	70	34	112	487	29,2	129	3630	0,90	8,0
18	.70	6	85	36	118	532	31,9	140	4069	1,01	7,8

Overview
Specifications
Reviews
Manufacturer Info
Contact Us
Calculators

Rotatable sprinkler heads with gearbox and adjustable for full or part circle coverage, featuring medium and high pressure operations (2 to 6 Bars), and high efficiency.
This model is an introduction to the economical series. Changeable nozzles for a perfect irrigation with evenly distributed water
Suitable for using in any type of delicate or rough agricultural applications; widely used especially on wheat, maize, and clover.
Makes full and semi-circle turns at the same speed;
Ideal for agricultural areas, sport fields, and mines; suitable for portable and fixed systems.
It has new type special paint; new type powder paint makes it much more durable against environmental effects.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	18	59	108	6,5	29	1017	0,25	6,4
10	.39	3	44	21	69	125	7,5	33	1385	0,34	5,4
10	.39	4	56	23	75	143	8,6	38	1661	0,41	5,2
12	.47	2	29	20	66	152	9,1	40	1256	0,31	7,2
12	.47	3	44	24	79	182	10,9	48	1809	0,45	6,0
12	.47	4	56	27	89	210	12,6	55	2289	0,57	5,5
12	.47	5	70	30	98	235	14,1	62	2826	0,70	4,99
14	.55	2	29	21	69	195	11,7	52	1385	0,34	8,45
14	.55	3	44	25	82	238	14,3	63	1963	0,48	7,3
14	.55	4	56	29	95	277	16,6	73	2641	0,65	6,3
14	.55	5	70	31	102	308	18,5	81	3018	0,75	6,1
16	.62	2	29	22	72	247	14,8	65	1520	0,38	9,7
16	.62	3	44	26	85	303	18,2	80	2123	0,52	8,6
16	.62	4	56	30	98	350	21	92	2826	0,70	7,4
16	.62	5	70	33	108	390	23,4	103	3419	0,84	6,8
18	.70	3	44	28	92	378	22,7	100	2462	0,61	9,2
18	.70	4	56	31	102	437	26,2	115	3018	0,75	8,7
18	.70	5	70	34	112	487	29,2	129	3630	0,90	8,0
18	.70	6	85	36	118	532	31,9	140	4069	1,01	7,8

Products specifications

Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	100 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	30 - 40 m
Box Dimension	21x21x71 cm
Nozzles	10, 12, 14, 16, 18 mm
Weight	5.4 kg

Write your own review

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
Excellent

Existing reviews

Ducar is great!

What a difference this sprinkler is to the ones we've purchased in the past. This is definitely a great product. We are very happy with this product, and think it is worth paying a little more for a much better quality item.

From: Guest | Date: 11/4/2012 12:09 AM

Was this review helpful? Yes No (1/0)

Thanks

This product is so good! It was delivered in a few days and it works very well. Thanks irrigationBox!

From: marcio turcu | Date: 2/11/2014 3:31 AM

Was this review helpful? Yes No (0/0)

Awesome

This is real JET!! Thanks

From: Guest | Date: 5/15/2014 9:20 AM

Was this review helpful? Yes No (1/0)

DuCaR GREEN JET

Very professional! Fast shipping! Perfect!

From: Guest | Date: 6/12/2014 9:23 AM

Was this review helpful? Yes No (1/0)

I love these sprinkler heads! Genius and affordable!

A high quality product delivered at a more than reasonable price and quickly. I used these sprinkler heads to replace lesser quality heads that were worn out, but were mounted on superior bases. Highly recommended!

From: Guest | Date: 2/11/2015 10:04 PM

Was this review helpful? Yes No (0/0)

green 70 geardrive

Awesome sprinkler long shooting range great for small crops. Only thing would like to see changed would be the pins that change direction needs to be a better set up as holes will wear out. Other then that perfect

From: shane rost | Date: 5/6/2017 6:15 AM

Was this review helpful? Yes No (0/0)

Great performance!

Great quality sprinkler. Thank you for introducing this sprinkler to us!

From: John Collins | Date: 1/7/2019 2:00 PM

Was this review helpful? Yes No (0/0)

DuCaR Sprinklers

Established in 1981 and headquartered in Turkey, is one of the leader irrigation sprinkler manufacturing companies in the world. It offers products and services ranging from gear driven, impact irrigation sprinklers, connection stands, pumps, and complete irrigation system design. Since agricultural and industrial irrigation needs vary for different environmental effects, producing only couple of different types of sprinklers does not meet the all requirments in different regions and countries. Hence why DuCaR Sprinklers offers custom designed sprinkler systems to meet all farmers' requirements around the world.

Its fully automated latest technology manufactirng system, CNC machines and CAD & CAM software systems enable them to produce accurate and defect free products.

DuCaR Sprinklers works with farmers and scientists around the world to improve irrigation systems' quality to promote sustainable agriculture with best prices.

Your name *

Your email *

Enquiry *

Select an Irrigation Calculator

These irrigation calculators will help compute your irrigation needs based on your growing practices, types of soil, and vegetation.

Popular Calculators

Drip Line Application Rate: Water application rate of drip irrigation.
Sprinkler Application Rate: Application rate based on nozzle diameter and spacing.
Water Application Rate: Water application rate from a given flow and area.
Nozzle Requirements: Find the flow rate using a given pressure and diameter, or find the nozzle diameter for a given pressure and flow rate.
Pipeline Size/Pressure Loss: Calculate the pressure loss in a pipe with evenly spaced outlets, such as a sprinkler lateral or a manifold, or minimum pipe size in the same based on the maximum allowable pressure loss.

Irrigation Management Calculators

Irrigation Frequency: maximum interval allowed between irrigations. This is dependent on soil type, root zone depth, and the water use rate of the crop.
Set Irrigation Times: set time required to fulfill a given water application, irrigation area, and flow rate.
Water Depth: Depth of water applied to a specified area over the specified time span based on the given flow rate.
Water Application Rate: Application rate using the flow rate on an area.

Drip Irrigation Calculators

Drip Line Rate: Water application rate of drip lines.
Drip Design for Landscapes: Determine how much water to apply to individual plants with drip emitters.

Sprinkler Irrigation Calculators

Nozzle Flow Rate and Effective Application Rate: Sprinkler nozzle flow rate and effective application rate based on nozzle diameter and spacing.
Nozzle Flow Rate and Required Nozzle Diameter: Sprinkler nozzle flow rate and required nozzle diameter based on target application rate and spacing.
Nozzle Requirements: Find the flow rate using a given pressure and diameter, or find the nozzle diameter for a given pressure and flow rate.
Lateral Friction Loss: Find the flow rate, pipe length and friction loss based on a sprinkler lateral.
Hand Move Sprinklers: Find recommended values for hand move sprinklers, such as set times, nozzle and pressure losses.
Sprinkler Density: Find the number of sprinkler heads per area for rectangular or triangular spacing.
Traveling Big Gun Sprinkler: Calculate the net water application for a given flow rate, efficiency percentage, lane width, and travel speed.
Traveling Irrigator: Estimate the the total number of irrigated acres per hour based on lane spacing and travel speed.

Center Pivot Irrigation Calculators

Percent Timer Setting: Use this calculator to calculate an approximate timer setting to apply a particular depth.
1" Application Time: Calculate the irrigation time to apply one inch of water with a center pivot.
Center Pivot Acreage: Calculate the area underneath a center pivot.
Pivot Full Rotation Time: The time that it takes for a 360 degree rotation of a center pivot.
System Pumping Requirements: Calculate the system capacity (flow rate) required to meet the demands of a field.

Residential Irrigation Calculators

Drip Design for Landscapes: Determine how much water to apply to individual plants with drip emitters.
Garden Hose Flow Rate Calculate the flow rate and application time for a garden hose, based on hose size and supply pressure.
Lawn Water Management Find the application depth and operation time for a specific grass type, precipitation rate, and daily water use. Also provides suggested application depths and operation times for multiple water periods.

General Design Calculators

Irrigatable Area: The land area that can be irrigated with a given flow of water.
Irrigation Frequency: The maximum interval allowed between irrigations.
Irrigation Run Time: Determine the length of time that an irrigation system must run to apply enough water to replace the water lost to evapotranspiration.
Required Water Pump Horsepower: Estimate the brake horsepower and total power (hp) requirements of the electric motor used to power an irrigation water pump.
Irrigation System Pumping Requirements: Calculate the system capacity (flow rate) required to meet the demands of a field.
NPSHA: determines the absolute pressure at the pump impeller.
Total Dynamic Head: This calculator finds the pressure required at the pump, and the head that the pump must generate.
Minimum Required Pipe Size: Determine required pipe size based on given flow rate, pipe length, material and maximum allowable pressure loss.
Pipe Velocity and Diameter: Calculate the velocity of water in a pipe and calculate the diameter of a pipe required for 5 fps pipe velocity.
Pipeline Pressure Loss: Calculates the pressure or friction loss along a given length of pipeline with a specified inside diameter and the minimum pipe size to limit pressure loss to a specified value.
Pressure Loss from Laterals with Outlets: Calculates friction loss in a pipe with equally spaced outlets and the minimum pipe size for a pipe with equally spaced outlets.
Fitting Pressure Loss: The equivalent feet of pipe to add to the pressure loss equation.
Required System Capacity: Calculate the system capacity (flow rate) required to meet the demands of a field.
Water Application Rate: Water application rate using the flow rate on an area.
Water Depth: Depth of water applied to a specified area over the specified time span based on the given flow rate onto the field.
Total Surge Pressure (Water Hammer): Surge pressure due to a sudden shutting of a valve, or water hitting the end of a pipe.
Water Supply Design: Estimate of the water flow requirements to replace water lost to evapotranspiration.

Products specifications

Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	100 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	30 - 40 m
Box Dimension	21x21x71 cm
Nozzles	10, 12, 14, 16, 18 mm
Weight	5.4 kg
